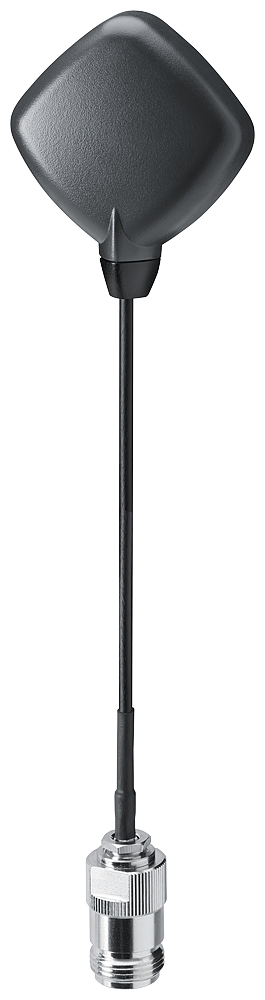

Siemens 6GK5895-6ML00-0AA0 ANT895-6ML GPS Antenna 3dBi IP67 Networking Accessory

% $-131.26
Siemens 6GK5895-6ML00-0AA0 ANT895-6ML GPS antenna, magnet mount - Networking Accessory
Siemens 6GK5895-6ML00-0AA0 ANT895-6ML GPS antenna, magnet mount - Networking Accessory

Siemens 6GK5895-6ML00-0AA0 ANT895-6ML GPS Antenna 3dBi IP67 Networking Accessory

Brand: Siemens
Reference No: 6GK5895-6ML00-0AA0
Catalog No: 6GK5895-6ML00-0AA0
Series: SCALANCE M
Tariff Code (HS): 85291069
Communication: GPS L1 (1575.42 MHz)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$131.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5895-6ML00-0AA0 ANT895-6ML is a GPS L1 antenna with an integrated two-stage low-noise amplifier, supplied as a spare part with a 0.3 m connection cable and N-Connector female fitting. It delivers 3 dB gain at 90 degrees and 20 dB amplification, mounts by magnet or screw, and is rated IP67 across a -40 to +85 degrees C range.

Technical Specifications

SKU 6GK5895-6ML00-0AA0
Brand Siemens
Series SCALANCE M
Product Type Designation Antenna ANT895-6ML
Suitability GPS
Satellite Navigation System GPS L1
Operating Frequency 1575.42 MHz
Antenna Gain (Circular Radiation) 3 dB at 90°
Amplifier Design Two-stage, low noise
Amplification 20 dB
IF Filter Design Dual high-rejection SAW filter
Supply Voltage (via Antenna Cable) 2.7 ... 5 V DC
Current Consumption (max) 2 mA at 5 V
Polarization Right hand circular
Radiation Characteristic GPS
Connector N-Connector, female
Color Black
Ambient Temperature (Operation) -40 ... +85 °C
Protection Class IP67 (with correct installation)
Overvoltage Protection Integrated, up to 15 kV
Dimensions (W x H x D) 52.1 x 59.2 x 13.6 mm
Net Weight 130 g
Mounting Magnet or screw mounting
Cable Length 0.3 m
Country of Origin US
EAN 4019169855440

Certifications & Standards

  • RoHS

Selection Notes

As a GPS-only antenna rather than a combined GPS/cellular unit, the ANT895-6ML suits a router or RTU that needs satellite time or position input alone. Its integrated two-stage low-noise amplifier and 15 kV integrated overvoltage protection let it run on an outdoor cable route without a separate in-line amplifier or surge arrestor.

Technical Details

Short Description
ANT895-6ML GPS L1 antenna, 3 dBi gain, integrated amplifier, IP67, 0.3 m N-connector cable.
Mounting Type
Magnet or screw mounting
Protection Type
IP67
Catalog No
6GK5895-6ML00-0AA0
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6GK5895-6ML00-0AA0
Tariff Code
85291069
