- 6GK5876-4AA10-2BA2

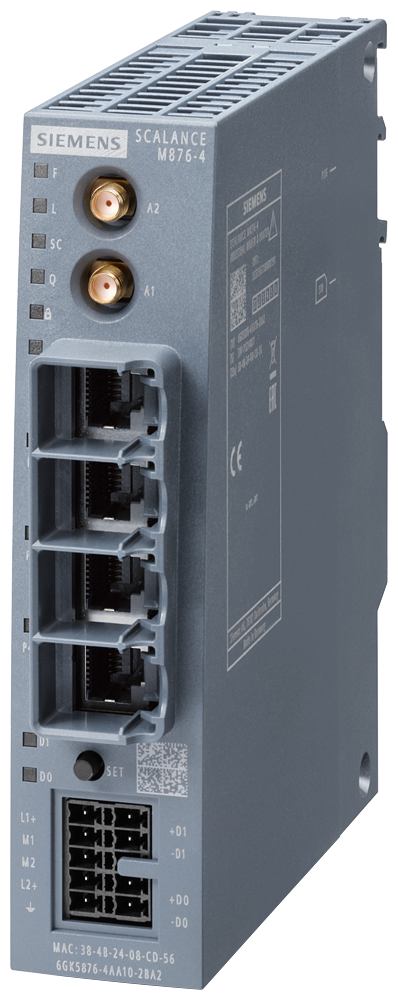

Siemens 6GK5876-4AA10-2BA2 SCALANCE M876-4 4G LTE VPN Router 4-Port 24V DC Industrial Router
SCALANCE M876-4 LTE/UMTS/GSM VPN router, 4-port switch, MIMO antennas, 10.8-28.8V DC, IP20.
Description
About the 6GK5876-4AA10-2BA2
About the 6GK5876-4AA10-2BA2
The Siemens 6GK5876-4AA10-2BA2 SCALANCE M876-4 is an LTE, UMTS, and GSM router that connects Ethernet-based controllers to the mobile network over VPN with NAT and a stateful-inspection firewall. It integrates a 4-port switch, dual SMA antenna sockets for MIMO reception, 1 digital input and 1 digital output, and runs from a 10.8-28.8 V DC supply drawing 0.33 A typical at 24 V.
Certifications & Standards
- CE
- EN 50121-3-2
- EN 50121-4
Selection Notes
The dual SMA antenna sockets with MIMO reception and support for LTE, UMTS, and GSM make this the cellular variant for a site with no wired Ethernet or PROFIBUS backhaul; it reaches the network over mobile radio instead. Its EN 50121-3-2 and EN 50121-4 railway EMC approvals suit trackside or vehicle-mounted control cabinets, not just fixed industrial panels, where an uncertified cellular router would fail acceptance testing.
Specification
Full specification
General 1
| product brand name | SCALANCE |
|---|
Transfer rate 9
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
|---|---|
| transfer rate: for GPRS transmission / with downlink / maximum | 85.6 kbit/s |
| transfer rate: for GPRS transmission / with uplink / maximum | 85.6 kbit/s |
| transfer rate: with eGPRS transmission / with downlink / maximum | 236.8 kbit/s |
| transfer rate: with eGPRS transmission / with uplink / maximum | 236.8 kbit/s |
| transfer rate: with UMTS transmission / with downlink / maximum | 14.4 Mbit/s |
| transfer rate: with UMTS transmission / with uplink / maximum | 5.76 Mbit/s |
| transfer rate: for LTE transmission / with downlink / maximum | 100 Mbit/s |
| transfer rate: for LTE transmission / with uplink / maximum | 50 Mbit/s |
Interfaces 6
| number of electrical connections: for internal network | 4 |
|---|---|
| number of electrical connections: for external network | 2 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for internal network | RJ45 port (10/100 Mbit/s, TP, autocrossover) |
| type of electrical connection: for external antenna(s) | SMA antenna socket (50 ohms) |
| type of electrical connection: for power supply | 5-pole terminal strip |
Show all 108 specifications ↓ Show less ↑92 more values in Identification, Signal inputs/outputs, WAN connection, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / DHCP, Product functions / routing, Product functions / security, Product functions / time, Standards, specifications, approvals, Logistics.
Identification 9
| Part number | 6GK5876-4AA10-2BA2 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622965733 |
| ETIM class | EC001478 |
| eCl@ss | 19170128 |
Signal inputs/outputs 2
| number of digital inputs | 1 |
|---|---|
| number of digital outputs | 1 |
WAN connection 5
| type of wireless network / is supported | LTE, UMTS, GSM |
|---|---|
| type of mobile wireless service / is supported | GPRS, eGPRS, HSPA+ |
| operating frequency / for GSM transmission | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz |
| frequency band / is supported: LTE | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B38, B40, B41, B66 |
| frequency band / is supported: UMTS | B1, B2, B4, B5, B6, B8, B19 |
Supply voltage, current consumption, power loss 5
| supply voltage / rated value | 10.8 ... 28.8 |
|---|---|
| consumed current: at DC / at 24 V / typical | 0.33 A |
| power loss [W]: maximum | 8 W |
| supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage | DC |
Ambient conditions 4
| ambient temperature: during operation | -20 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| relative humidity / at 25 °C / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 8
| design | compact |
|---|---|
| depth | 127 mm |
| height | 147 mm |
| width | 35 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
| fastening method: wall mounting | Yes |
Product features, product functions, product components / general 2
| product function: DynDNS client | Yes |
|---|---|
| product function: no-ip.com client | Yes |
Product functions / management, configuration, engineering 9
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| type of configuration | Web-based management |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 9
| protocol / is supported: SNMP v1 | Yes |
|---|---|
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v2c | Yes |
| protocol / is supported: SNMP v3 | Yes |
| product function: statistics Packet Size | No |
| product function: statistics packet type | No |
| product function: error statistics | No |
| product function: SysLog | Yes |
| product function: packet filter log | Yes |
Product functions / DHCP 2
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server - internal network | Yes |
Product functions / routing 5
| router function: NAT (IP masquerading) | Yes |
|---|---|
| router function: port forwarding | Yes |
| router function: NAT traversal | Yes |
| router function: 1:1 NAT | Yes |
| router function: DNS cache | Yes |
Product functions / security 18
| suitability for operation / Virtual Private Network | Yes |
|---|---|
| firewall version | Statefull Inspection |
| product function: password protection | Yes |
| product function: packet filter | Yes |
| product function: broadcast/multicast/unicast limiter | No |
| product function: broadcast blocking | No |
| product function: with VPN connection | IPsec, OpenVPN (as Client) |
| number of possible connections / with VPN connection | 20 |
| type of authentication / with Virtual Private Network / PSK | Yes |
| protocol / is supported: IPsec tunnel and transport mode | Yes |
| key length: 1 / with IPsec AES / with Virtual Private Network | 128 bit |
| key length: 2 / with IPsec AES / with Virtual Private Network | 192 bit |
| key length: 3 / with IPsec AES / with Virtual Private Network | 256 bit |
| key length: with IPsec 3DES / with Virtual Private Network | 168 bit |
| type of internet key exchange / with Virtual Private Network: main mode | Yes |
| type of internet key exchange / with Virtual Private Network: quick mode | Yes |
| type of packet authentication / with Virtual Private Network | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| IETF profile / with Virtual Private Network / X.509v3 certificate | Yes |
Product functions / time 2
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 5
| standard: for EMC | ETSI EN 301 489-1, ETSI EN 301 489-52, EN 55011, NAMUR NE21 |
|---|---|
| standard: for emitted interference | CISPR 32, ETSI EN 55032 Class A / Class B, EN IEC 61000-6-3, EN IEC 61000-6-4 |
| standard: for interference immunity | CISPR 35, EN 55035, EN IEC 61000-6-1, EN IEC 61000-6-2 |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: railway application in accordance with EN 50121-3-2 | Yes |
Logistics 7
| Net weight | 0.396 kg |
|---|---|
| Package dimensions | 193 × 188 × 168 mm |
| Country of origin | DE |
| Shipping weight | 0.896 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5876-4AA10-2BA2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- railway application in accordance with EN 50121-3-2
- railway application in accordance with EN 50121-4
Quick answers
Questions about the 6GK5876-4AA10-2BA2
What is the HS code of 6GK5876-4AA10-2BA2 for customs?
The tariff (HS) code on file for 6GK5876-4AA10-2BA2 is 85176200.
What is the EAN of 6GK5876-4AA10-2BA2?
The EAN (GTIN) of 6GK5876-4AA10-2BA2 is 4047622965733.
Where does 6GK5876-4AA10-2BA2 ship from, and how fast?
6GK5876-4AA10-2BA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
