- Part number
- 6GK5798-2LP10-2AA6
- Model no
- Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English.

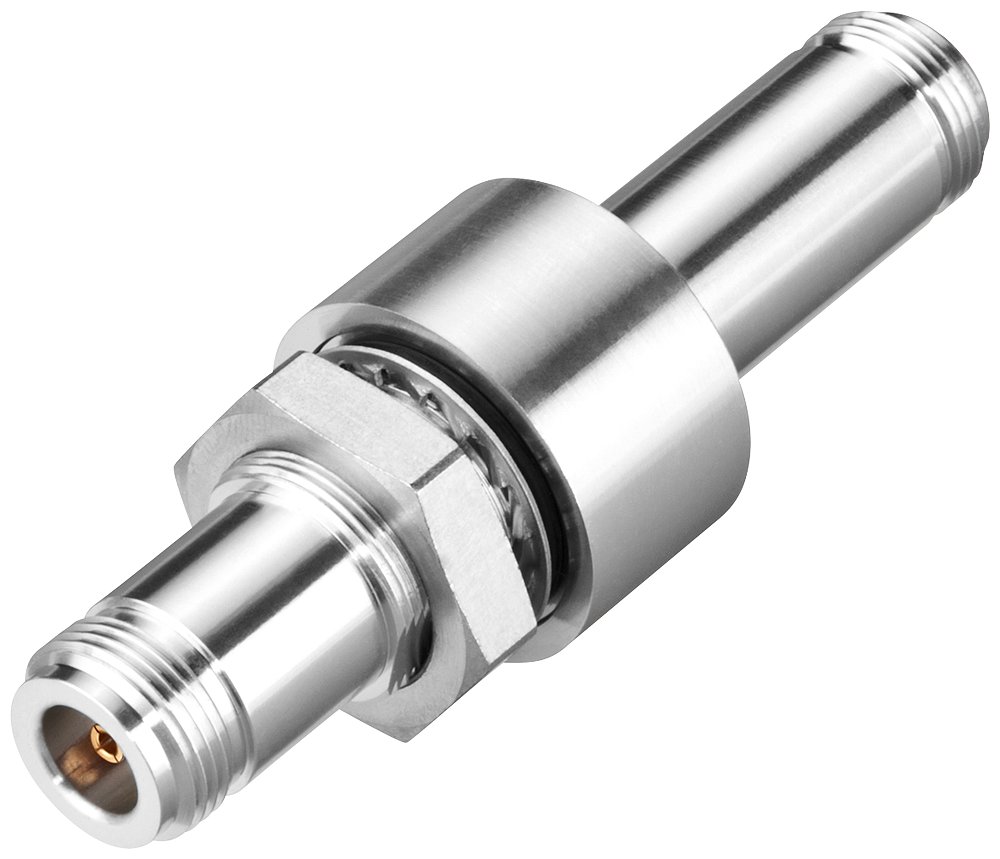

SCALANCE WSiemens 6GK5798-2LP10-2AA6 SCALANCE W LP798-2N Lightning Protector 2-6 GHz Networking Accessory
LP798-2N lightning protector, N/N female, quarter-wave, 2-6 GHz, IP68, -40 to +85C
Description
About the Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English.
About the Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English.
The Siemens 6GK5798-2LP10-2AA6 LP798-2N is a lightning protection element with N-Connect female/female connections, using quarter-wave technology to shunt surge energy on SCALANCE W antenna lines from 2 to 6 GHz. It adds no more than 0.2 dB of insertion loss, carries an IP68 rating, and operates from -40 to +85 degrees C indoors or outdoors.
Selection Notes
This is a quarter-wave protector, so it grounds surge energy by resonant design rather than a gas-discharge tube, which keeps the 0.2 dB insertion loss low enough to fit inline on the same antenna feed without a noticeable link-budget hit. IP68 and the -40 to +85 degrees C range let it sit outdoors at the antenna end of the run, where lightning protection is most needed, instead of only at an indoor equipment rack.
Specification
Full specification
General 2
| product type designation | Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. |
|---|---|
| product brand name | SIMATIC NET |
Interfaces 2
| type of electrical connection | N-Connector |
|---|---|
| design of plug-in connection | female / female |
Electrical data 3
| transmission frequency | 2000 ... 6000 MHz |
|---|---|
| insertion loss | = 0.2 dB |
| impedance | 50 Ω |
Show all 32 specifications ↓ Show less ↑25 more values in Identification, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Logistics.
Identification 10
| Part number | 6GK5798-2LP10-2AA6 |
|---|---|
| Type designation | Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854443 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| suitability for use: for interior use | Yes |
| suitability for use: for outside use | Yes |
| protection class IP | IP68 |
Design, dimensions and weights 2
| width | 89.6 mm |
|---|---|
| diameter | 29 mm |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Logistics 6
| Net weight | 0.08 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.58 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5798-2LP10-2AA6
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English.
What is the HS code of Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. for customs?
The tariff (HS) code on file for Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. is 85177900.
What is the EAN of Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English.?
The EAN (GTIN) of Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. is 4019169854443.
Where does Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. ship from, and how fast?
Lightning protector LP798-2N Lightning protector LP798-2N, Lightning protection element with N/N Female/female connection, IP65 (-40...+85 °C), 2 ... 6 GHz, with Quarter-Wave technology for SCALANCE W antennas, compact instructions as hard copy German/English. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
