Siemens 6GK5798-0SN00-0EA0 SCALANCE W N-Connect Female 2-Fold Power Splitter Networking Accessory

% $-385.87

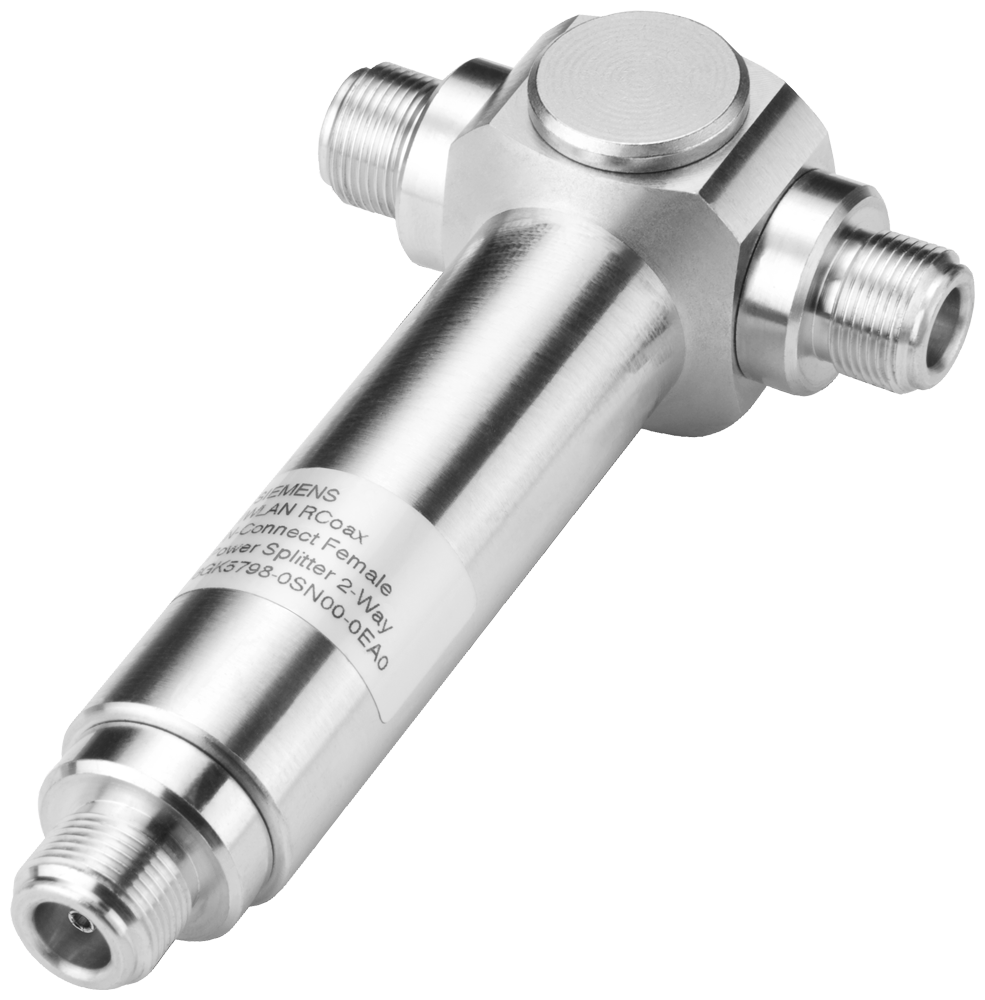

Siemens 6GK5798-0SN00-0EA0 N-Connect power splitter - IWLAN 2-fold Y-element
Siemens 6GK5798-0SN00-0EA0 N-Connect power splitter - IWLAN 2-fold Y-element

Siemens 6GK5798-0SN00-0EA0 SCALANCE W N-Connect Female 2-Fold Power Splitter Networking Accessory

Brand: Siemens
Reference No: 6GK5798-0SN00-0EA0
Catalog No: 6GK5798-0SN00-0EA0
Series: SCALANCE W
Tariff Code (HS): 85366910
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$385.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5798-0SN00-0EA0 is a 2-fold N-Connect female power splitter, a Y-element that divides a 2.4/5 GHz IWLAN signal between two antenna or cable branches for SCALANCE W installations. It is rated IP66/68, with IP68 verified at 0.5 bar for 1 hour, and operates from -40 to +110 degrees C.

Technical Specifications

SKU 6GK5798-0SN00-0EA0
Brand Siemens
Series SCALANCE W
Product type designation IWLAN power splitter N-Connect female
EAN 4019169851206
Electrical connections 3
Connector type N-Connect female
Transmission frequency 2.4-6.425 GHz
Impedance 50 ohm
Return loss, minimum 18 dB
Insertion loss, maximum 3.15 dB
Ambient temperature, operation -40 to +110 C
Ambient temperature, storage -40 to +110 C
Ambient temperature, transport -40 to +110 C
Salt-laden atmosphere resistance Yes, severity 3, EN 60068-2-52
Protection class IP66/68, IP68 at 0.5 bar for 1 h
Width 71.4 mm
Depth 41.4 mm
Length 131.4 mm
Net weight 937 g

Certifications & Standards

  • RoHS

Selection Notes

Splitting the signal three ways (one input, two outputs) means each output loses roughly half the input power on top of the 3.15 dB maximum insertion loss, so the antenna gain on each branch needs to cover that budget before this is a net gain over a single antenna. The severity-3 salt-mist rating is the highest in the SCALANCE W accessory range, and IP68 verified at 0.5 bar makes it the choice for a permanently wet or coastal outdoor mount rather than the lower-rated attenuator or coupler pieces.

Technical Details

Short Description
N-Connect female 2-fold power splitter, 2.4/5 GHz, IP66/68, -40 to +110C, Y-element
Mounting Type
Inline, N-Connect female
Protection Type
IP66/68
Catalog No
6GK5798-0SN00-0EA0
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6GK5798-0SN00-0EA0
Tariff Code
85366910
