- Part number
- 6GK5798-0CP00-1AA0
- Model no
- IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece.
- RoHS

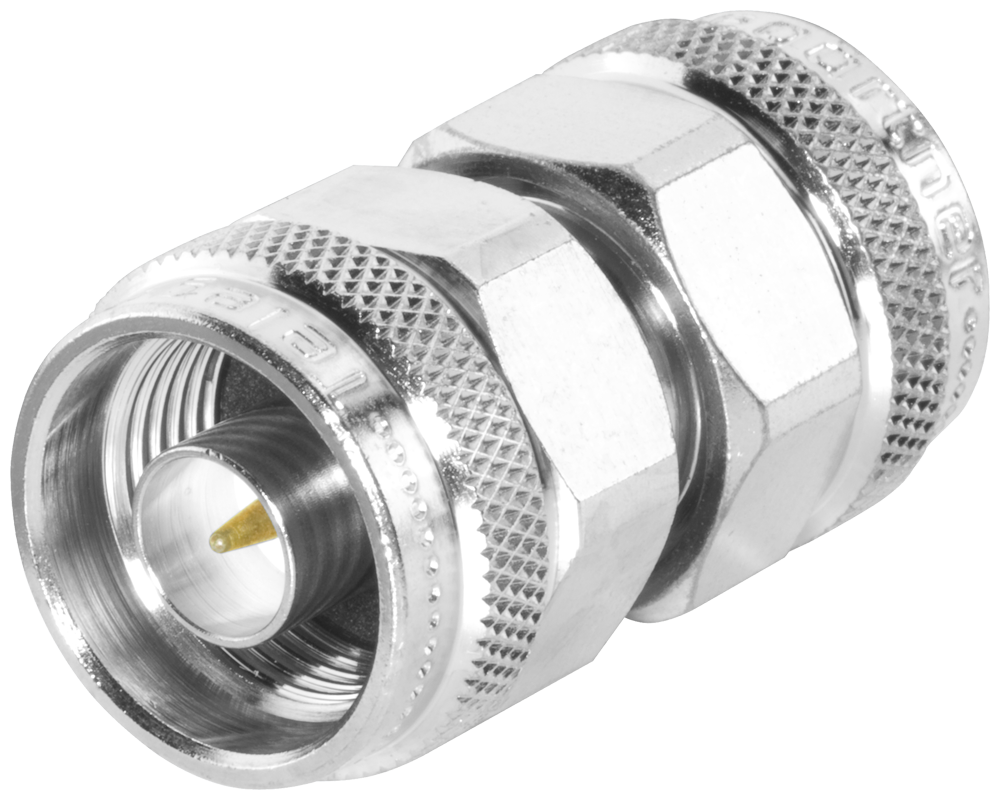

SCALANCE WSiemens 6GK5798-0CP00-1AA0 SCALANCE W N-Connect Male/Male Coupler IP68 Networking Accessory
N-Connect male/male coupling piece, 0-6 GHz, IP68, -40 to +70C, joins two male-terminated cables
Description
About the IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece.
About the IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece.
The Siemens 6GK5798-0CP00-1AA0 is an N-Connect male/male coupling piece that joins two male-terminated IWLAN cables or pigtails end to end, extending a run or bridging a break in a SCALANCE W antenna feed without going back through a female bulkhead adapter. It covers 0-6 GHz at 50 ohm impedance, carries an IP68 rating, and operates from -40 to +70 degrees C.
Certifications & Standards
- RoHS
Selection Notes
Both ends of this coupler are N-Connect male, so it is the piece to use when extending or joining two male-terminated antenna cables rather than mating a cable to an antenna or radio, which are normally female. The IP68 rating is a step above the IP67 attenuator and IP65 lightning protector in the same accessory range, useful for a splice that stays submerged or buried rather than just wet.
Specification
Full specification
General 2
| product type designation | IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. |
|---|---|
| product brand name | SCALANCE |
Electrical data 5
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | N-Connect male/N-Connect male |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
| return loss / minimum | 0.1 dB |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP68 |
Show all 31 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5798-0CP00-1AA0 |
|---|---|
| Type designation | IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4018359299316 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Design, dimensions and weights 2
| diameter | 20.8 mm |
|---|---|
| length | 36.4 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 7
| Net weight | 0.06 kg |
|---|---|
| Package dimensions | 36 × 26 × 18 mm |
| Country of origin | DE |
| Shipping weight | 0.56 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5798-0CP00-1AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
Quick answers
Questions about the IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece.
What is the HS code of IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. for customs?
The tariff (HS) code on file for IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. is 85366910.
What is the EAN of IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece.?
The EAN (GTIN) of IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. is 4018359299316.
Where does IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. ship from, and how fast?
IWLAN coupler N-Connect Male/Male N-Connect male/male couplers coupling piece. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
