- Part number
- 6GK5798-0CN00-0AA0
- Model no
- IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components.
- RoHS

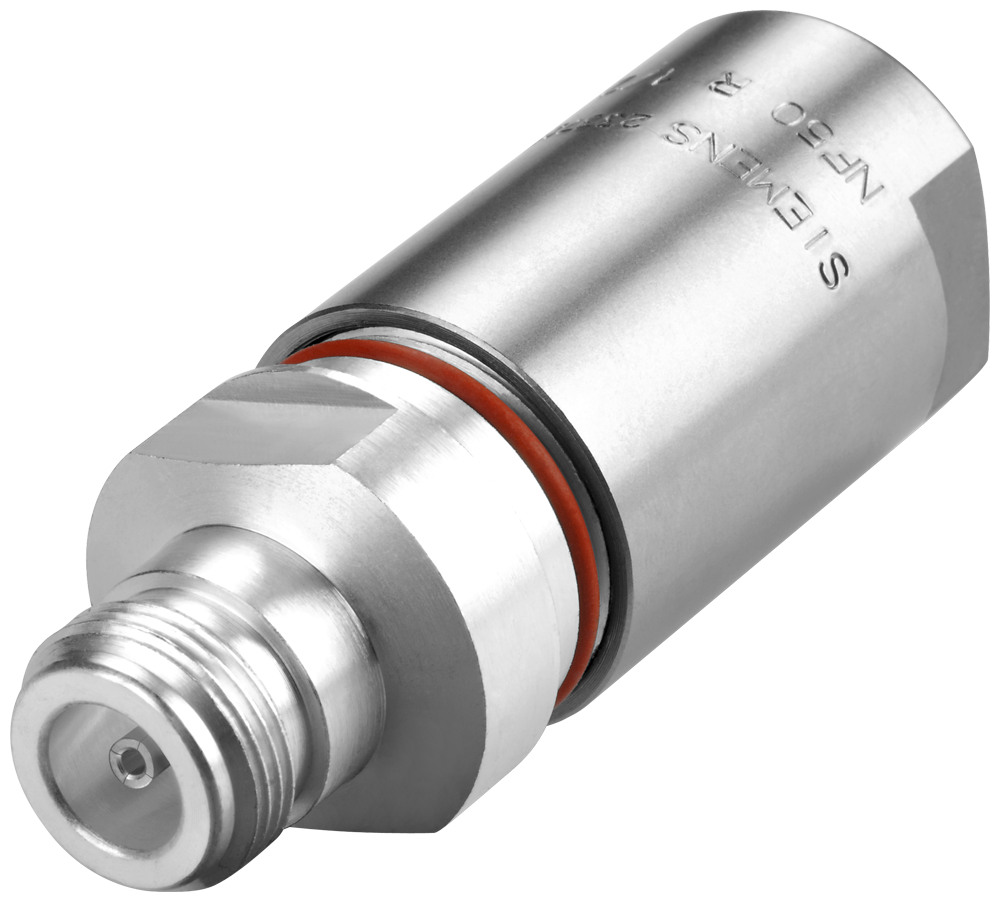

SCALANCE WSiemens 6GK5798-0CN00-0AA0 SCALANCE W RCoax N-Connect Female 2.4/5 GHz Network Connector
RCoax N-Connect female field connector, 0-6 GHz, IP67, -40 to +85C, joins RCoax leaky feeder cable
Description
About the IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components.
About the IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components.
The Siemens 6GK5798-0CN00-0AA0 is a field-assembled RCoax N-Connect female connector for joining lengths of RCoax leaky-feeder cable and connecting further components in a 2.4 and 5 GHz IWLAN radiating-cable run, where the leaky cable itself acts as a distributed antenna along a tunnel or corridor. It covers 0-6 GHz at 50 ohm impedance, is rated IP67, and operates from -40 to +85 degrees C.
Certifications & Standards
- RoHS
Selection Notes
This connector is field-assembled onto the cut end of an RCoax radiating cable, which is how a tunnel or mine leaky-feeder run is extended or spliced on site rather than ordered as one continuous factory length. The 0-6 GHz range and 50 ohm impedance match it to the RCoax cable itself and to SCALANCE W IWLAN radios operating in the 2.4 and 5 GHz bands, and the IP67 rating lets the joint sit in the same enclosed, damp environment as the cable run.
Specification
Full specification
General 2
| product type designation | IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. |
|---|---|
| product brand name | SCALANCE |
Electrical data 4
| number of electrical connections | 1 |
|---|---|
| type of electrical connection | N-Connect female |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP67 |
Show all 29 specifications ↓ Show less ↑19 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5798-0CN00-0AA0 |
|---|---|
| Type designation | IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4018359303075 |
| ETIM class | EC001131 |
| eCl@ss | 27440310 |
Design, dimensions and weights 2
| diameter | 27 mm |
|---|---|
| length | 65 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 6
| Net weight | 0.159 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.659 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5798-0CN00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
Quick answers
Questions about the IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components.
What is the HS code of IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. for customs?
The tariff (HS) code on file for IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. is 85366910.
What is the EAN of IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components.?
The EAN (GTIN) of IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. is 4018359303075.
Where does IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. ship from, and how fast?
IWLAN RCoax connector N-Connect Female N-Connector RCoax N-Connect female N-connector 2.4 and 5 GHz Can be assembled in the field; Connection piece of RCoax Cable for connection of further components. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
