- Part number
- 6GK5798-0AP00-4CA0
- Model no
- IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB
- RoHS

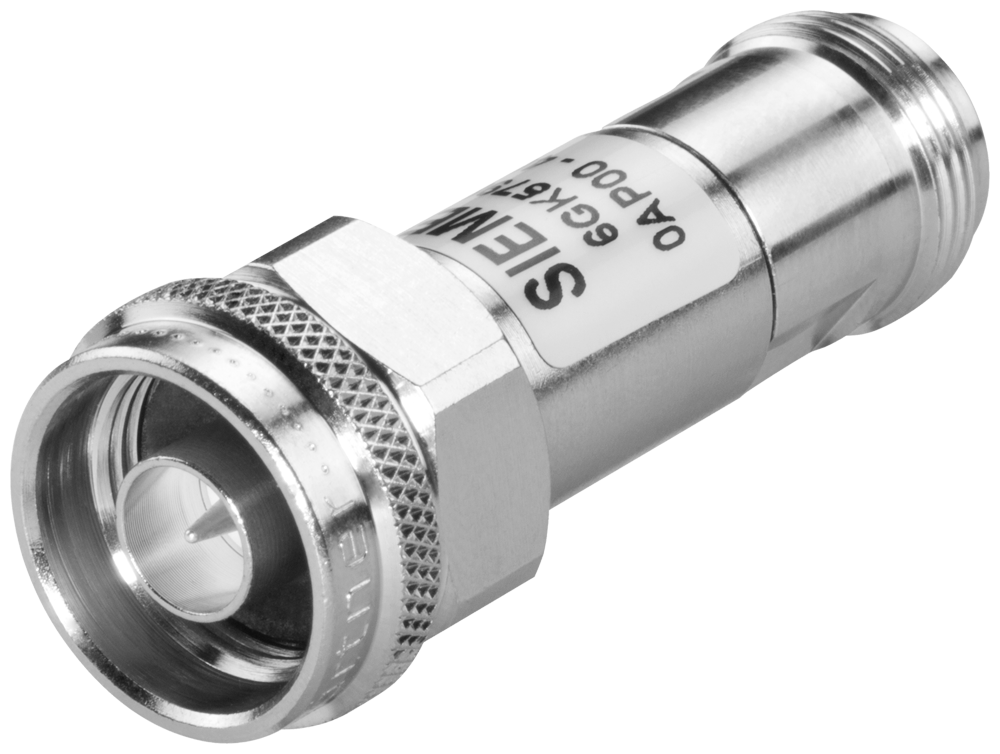

SCALANCE WSiemens 6GK5798-0AP00-4CA0 SCALANCE W N-Connect 10 dB Attenuator Networking Accessory
N-Connect male/female 10 dB inline attenuator, 0-6 GHz, IP67, -40 to +100C
Description
About the IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB
About the IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB
The Siemens 6GK5798-0AP00-4CA0 is an N-Connect male/female inline attenuator that reduces signal level by 10 dB across 0-6 GHz, for SCALANCE W IWLAN antenna runs. It carries an IP67 rating, works from -40 to +100 degrees C, and mounts between an antenna and cable or radio with a 4-6 N.m tightening torque.
Certifications & Standards
- RoHS
Selection Notes
Use this 10 dB pad when an antenna's gain would otherwise overdrive a SCALANCE W radio's receiver input at short range, such as a short indoor hop with a high-gain panel antenna. The 23 dB minimum return loss keeps reflections low even with the added attenuation, and IP67 lets it sit outdoors in the antenna line rather than only indoors.
Specification
Full specification
General 2
| product type designation | IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB |
|---|---|
| product brand name | SCALANCE |
Electrical data 6
| number of electrical connections | 2 |
|---|---|
| type of electrical connection | N-Connect male/ N-Connect female |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
| return loss / minimum | 23 dB |
| insertion loss / maximum | 10 dB |
Mechanical data 1
| tightening torque | 4 ... 6 N·m |
|---|
Show all 33 specifications ↓ Show less ↑24 more values in Identification, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5798-0AP00-4CA0 |
|---|---|
| Type designation | IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169851176 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +100 °C |
|---|---|
| ambient temperature: during storage | -40 ... +100 °C |
| ambient temperature: during transport | -40 ... +100 °C |
| protection class IP | IP67 |
Design, dimensions and weights 2
| diameter | 20.8 mm |
|---|---|
| length | 53 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 7
| Net weight | 0.06 kg |
|---|---|
| Package dimensions | 21 × 53 × 21 mm |
| Country of origin | DE |
| Shipping weight | 0.56 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5798-0AP00-4CA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
Quick answers
Questions about the IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB
What is the HS code of IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB for customs?
The tariff (HS) code on file for IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB is 85366910.
What is the EAN of IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB?
The EAN (GTIN) of IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB is 4019169851176.
Where does IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB ship from, and how fast?
IWLAN attenuator N-Connect Male/Female N-Connect male/female Attenuator 10 dB ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
