- Part number
- 6GK5795-6MT00-0AA0
- Model no
- Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation.
- RoHS

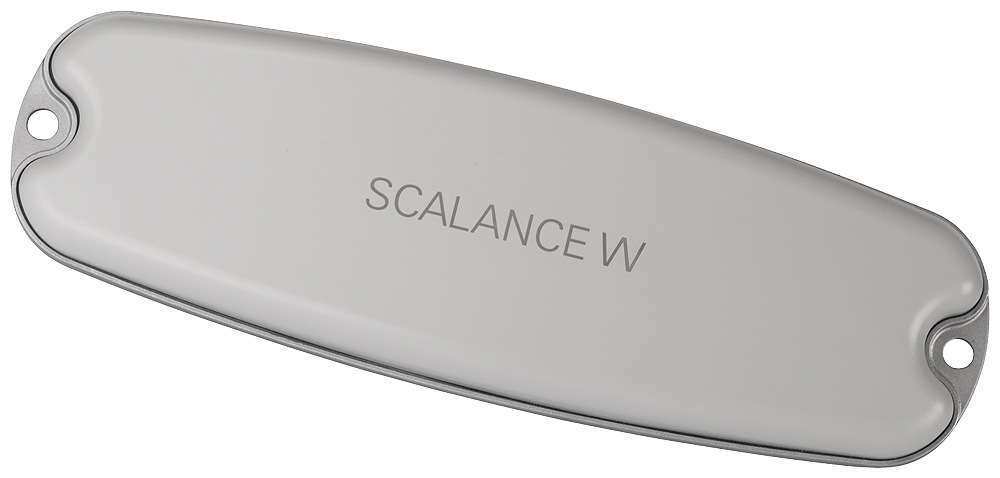

Siemens 6GK5795-6MT00-0AA0 SCALANCE W ANT795-6MT MIMO 3x QMA 5/7 dBi IWLAN Antenna
ANT795-6MT 3-port MIMO IWLAN antenna, QMA connectors, 5/7 dB gain, IP65, roof or ceiling mount
Description
About the Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation.
About the Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation.
The Siemens 6GK5795-6MT00-0AA0 ANT795-6MT is a 3-port MIMO IWLAN antenna for SCALANCE W networks, providing 5 dB gain at 2.4 GHz and 7 dB at 5 GHz through three QMA female sockets with 20 dB of crosstalk isolation between ports. Rated IP65 for -40 to +85 degrees C, it mounts on a roof, vehicle, or ceiling and holds EN 50155 railway approval.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
Three QMA ports with 20 dB of isolation between them are what separate this MIMO variant from the single-port antennas in the same family - it is the one to pick when the SCALANCE W radio itself supports 2x2 or 3x3 MIMO and a single wideband antenna would otherwise throttle that gain. The tighter 1.5 max VSWR (versus 2 on the single-port models) reflects the added cost of matching three radiating elements in one housing. Flat 282 x 32 x 92 mm dimensions suit roof or ceiling mounting where a taller mast antenna would not fit.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 4
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.69 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.35 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 2 | 5.47 ... 5.935 GHz |
Electrical data 12
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 5 dB |
|---|---|
| impedance | 50 Ω |
| polarization | 3 ports: Linear vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 1.5 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 360° |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 360° |
| number of electrical connections / of the antenna | 3 |
| type of electrical connection / of the antenna | QMA Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| crosstalk attenuation / between the antenna connections | 20 dB |
Show all 48 specifications ↓ Show less ↑30 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, (KRS), Logistics.
Identification 7
| Part number | 6GK5795-6MT00-0AA0 |
|---|---|
| Type designation | Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4019169854627 |
Mechanical data 1
| material: of outer shell | Polycarbonate |
|---|
Ambient conditions 4
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP65 |
Design, dimensions and weights 7
| width | 282 mm |
|---|---|
| height | 32 mm |
| depth | 92 mm |
| fastening method: mast mounting | No |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | Yes |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 4
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
| Marine classification association / Korean Register of Shipping | Yes |
(KRS) 1
| product conformity | UL 94-V0 |
|---|
Logistics 5
| Net weight | 0.32 kg |
|---|---|
| Shipping weight | 0.82 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-6MT00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation.
What is the HS code of Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. for customs?
The tariff (HS) code on file for Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. is 85177100.
What is the EAN of Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation.?
The EAN (GTIN) of Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. is 4019169854627.
Where does Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. ship from, and how fast?
Antenna ANT795-6MT ANT795-6MT IWLAN antenna MIMO antenna with omni- directional characteristic incl. 3x QMA sockets; 5/7 dBi; IP65 (-40-+85 °C), 2.4/5GHz; Wi-Fi compliance and Observe national approvals; mounting on roof, vehicles and ceiling installation; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MT, 1x mounting aid for Ceiling installation. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
