- Part number
- 6GK5795-6MP00-0AA0
- Model no
- Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.
Siemens has announced the end of 6GK5795-6MP00-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
- RoHS
Siemens 6GK5795-6MP00-0AA0 SCALANCE W ANT795-6MP 5/7 dBi IP65/67 IWLAN Antenna
ANT795-6MP omnidirectional IWLAN antenna, 5/7 dB gain, N-Connect female, IP65/67, wall or mast mount
Description
About the Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.
About the Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.

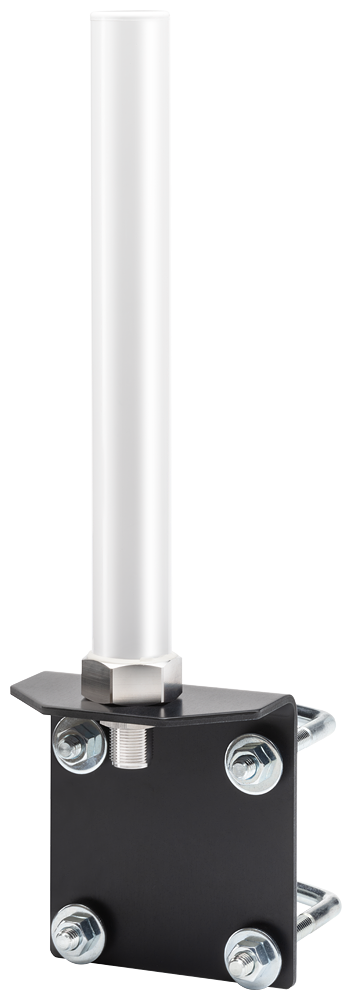

The Siemens 6GK5795-6MP00-0AA0 ANT795-6MP is an omnidirectional IWLAN antenna for SCALANCE W networks, providing 5 dB gain at 2.4 GHz and 7 dB at 5 GHz through an N-Connect female plug. Housed in UV-resistant white plastic with an IP65/67 rating and a -40 to +80 degrees C range, it mounts on a wall or mast and includes a mounting aid.
Certifications & Standards
- RoHS
Selection Notes
The 5/7 dB gain sits between the compact device-mount antenna and the higher-gain roof antenna in the same family, and the EN 60068-2-52 salt-mist rating (severity 1) is verified where the roof-mount variant is not, so this is the one to pick for a coastal or marine outdoor mast. The narrower 15-25 degree vertical beamwidth concentrates energy toward the horizon rather than up or down, which matters when the mast height and the target coverage area are both fixed.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 3
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.5 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 4.94 ... 5.925 GHz |
Electrical data 14
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 5 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna | take the antenna diagram into account regarding the horizontal beam angle |
| in the 2.4 GHz frequency band / horizontal | 360° |
| in the 2.4 GHz frequency band / vertical | 25° |
| in the 5 GHz frequency band / horizontal | 360° |
| in the 5 GHz frequency band / vertical | 15° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
Show all 54 specifications ↓ Show less ↑35 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5795-6MP00-0AA0 |
|---|---|
| Type designation | Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169855945 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 2
| material: of outer shell | UV-resistant white plastic |
|---|---|
| color | white |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP65/67 |
| wind load / maximum | 19.6 N |
| resistance to salt-laden atmosphere / conformity according to EN 60068-2-52 | Yes; Severity 1 |
Design, dimensions and weights 8
| width | 97 mm |
|---|---|
| height | 367 mm; incl. bracket |
| depth | 64 mm |
| diameter | 28.6 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| product conformity | UL 94-HB |
Logistics 6
| Net weight | 0.14 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.64 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-6MP00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
Quick answers
Questions about the Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.
What is the HS code of Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. for customs?
The tariff (HS) code on file for Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. is 85177100.
What is the EAN of Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid.?
The EAN (GTIN) of Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. is 4019169855945.
Where does Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. ship from, and how fast?
Antenna ANT795-6MP ANT795-6MP IWLAN antenna with omnidirectional characteristic; incl. N-Female plug: 5/7 dBi; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions on German/English scope of delivery: 1x ANT795-6MP, 1x mounting aid. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
