- Part number
- 6GK5795-6MN10-0AA6
- Model no
- Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
- RoHS

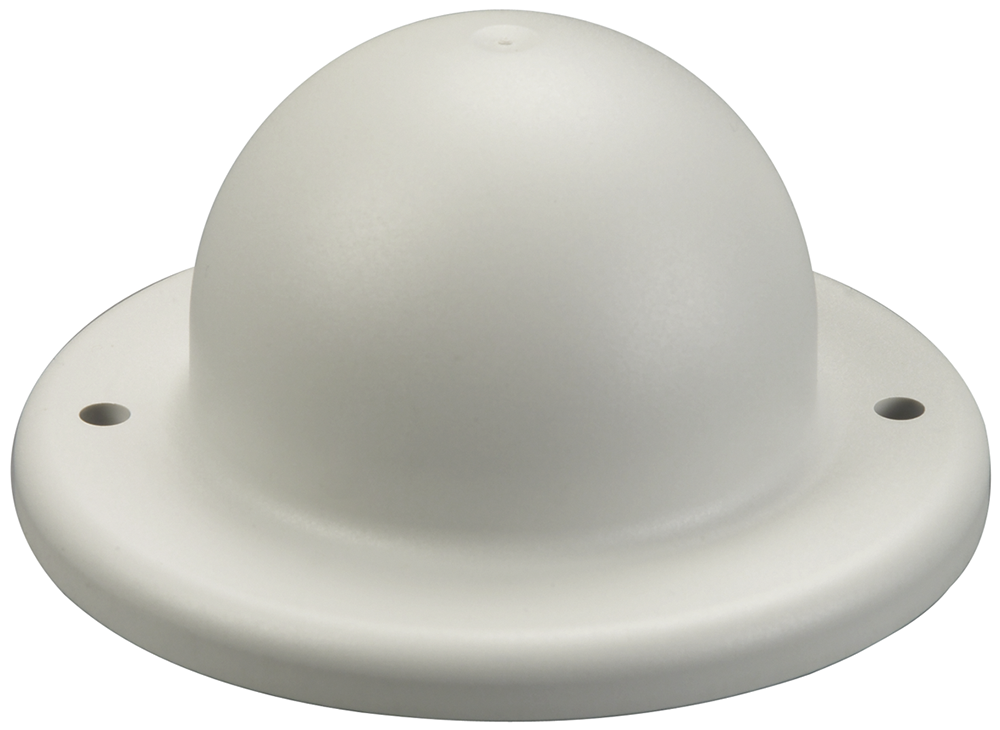

Siemens 6GK5795-6MN10-0AA6 SCALANCE W ANT795-6MN 6/8 dBi IP65 IWLAN Antenna
ANT795-6MN omnidirectional IWLAN antenna, 6/8 dB gain, N-Connect female, 2.4/5 GHz plus private 5G, IP65
Description
About the Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
About the Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
The Siemens 6GK5795-6MN10-0AA6 ANT795-6MN is an omnidirectional IWLAN antenna for SCALANCE W networks, delivering 6-8 dB gain across the 2.4 GHz and 5 GHz WLAN bands plus private 5G frequencies through an N-Connect female plug. Rated IP65 for -40 to +80 degrees C outdoor exposure, it mounts on a roof, wall, or vehicle and is built to withstand 10 N of wind load at 160 km/h.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
The 6-8 dB gain roughly doubles the effective range of the lower-gain, device-mounted antennas in the same family, at the cost of needing its own roof, wall, or vehicle bracket and a feeder run back to the SCALANCE W radio rather than screwing on directly. Its female N-connector pairs with a male-terminated pigtail or cable, the opposite of the direct-mount variants that plug straight into the radio housing. The 360 degree horizontal pattern in the 2.4 GHz band narrows to 150 degrees at 5 GHz, so orientation matters more once the higher band is in use.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 7
| type of wireless network / is supported | 5G private networks, WLAN |
|---|---|
| operating frequency / 1 | 2400 ... 2700 MHz |
| operating frequency / 2 | 3400 ... 3800 MHz |
| operating frequency / 3 | 4900 ... 5925 MHz |
| operating frequency / 4 | 5925 ... 7125 MHz |
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.7 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 4.9 ... 5.92 GHz |
Electrical data 12
| antenna gain compared to spherical radiator: with linear radiation / in operating frequency area 1 / typical | 6 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna | take the antenna diagram into account regarding the horizontal beam angle |
| horizontal | 360° |
| in the 5 GHz frequency band / horizontal | 150° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
Show all 59 specifications ↓ Show less ↑38 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, (KRS), Logistics.
Identification 10
| Part number | 6GK5795-6MN10-0AA6 |
|---|---|
| Type designation | Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854436 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Polycarbonate |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP65; with correct installation |
| wind load / maximum | 10 N; at 160 km/h |
Design, dimensions and weights 8
| width | 86 mm |
|---|---|
| height | 43 mm |
| depth | 86 mm |
| fastening method: mast mounting | No |
| fastening method: flat roof mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | Yes |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 5
| certificate of suitability | Railway application in accordance with NF-F-16-101, NF-F-16-102 |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
| Marine classification association / Korean Register of Shipping | Yes |
(KRS) 1
| product conformity | UL 94-V0 |
|---|
Logistics 7
| Net weight | 0.273 kg |
|---|---|
| Package dimensions | 86 × 43 × 86 mm |
| Country of origin | Poland |
| Shipping weight | 0.773 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-6MN10-0AA6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
What is the HS code of Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. for customs?
The tariff (HS) code on file for Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. is 85177100.
What is the EAN of Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.?
The EAN (GTIN) of Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. is 4019169854436.
Where does Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. ship from, and how fast?
Antenna ANT795-6MN ANT795-6MN antenna with omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795- 6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
