- Part number
- 6GK5795-6DC00-0AA0
- Model no
- Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment .
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS

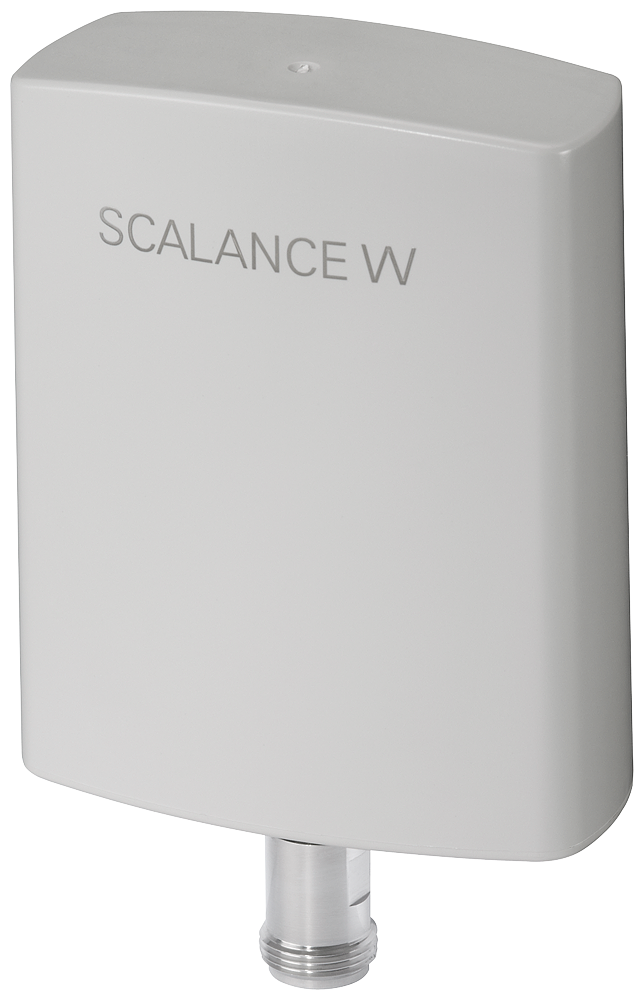

Siemens 6GK5795-6DC00-0AA0 SCALANCE ANT795-6DC 9 dB Dual-Band Sector IWLAN Antenna
ANT795-6DC dual-band sector IWLAN antenna, 9 dB gain, 2.4/5 GHz, IP66/67.
Description
About the Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment .
About the Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment .
The Siemens ANT795-6DC (6GK5795-6DC00-0AA0) is a dual-band sector IWLAN antenna with 9 dB gain on both the 2.4-2.5 GHz and 5.15-5.875 GHz bands, a female N-Connector, and a wider beamwidth than a purely directional antenna - 75x55 degrees at 2.4 GHz, 55x55 degrees at 5 GHz. It is rated IP66/67, operates from -40 to +80C, and mounts on a wall or mast.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
- UL 94-V0
- KRS
Selection Notes
Dual-band 2.4/5 GHz coverage in one antenna lets the ANT795-6DC serve either band from a single mount point, unlike the 5 GHz-only ANT793-8DP - useful when the WLAN design isn't locked to one band yet or needs both for coexistence. Its wider sector beam (75x55 degrees at 2.4 GHz versus the ANT793-8DP's 40x35) trades reach for coverage angle, so pick the ANT793-8DP instead for a longer fixed point-to-point link. The same IP66/67 rating, -40 to +80C range, and wall/mast mounting as the ANT793-8DP make it a drop-in physical alternative when only the beam pattern needs to change.
Applications
Fits outdoor sector coverage for mobile WLAN clients - yard vehicles, gantry cranes - moving through an area rather than a fixed link endpoint, on either the 2.4 GHz or 5 GHz band.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 3
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.5 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.875 GHz |
Electrical data 14
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 9 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | Sector antenna |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 75° |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 55° |
| radiating angle of the antenna: in the 5 GHz frequency band / vertical | 55° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| crosstalk attenuation / between the antenna connections | 25 dB |
| front-to-back ratio | 15 dB |
Show all 55 specifications ↓ Show less ↑36 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, (KRS), Logistics.
Identification 10
| Part number | 6GK5795-6DC00-0AA0 |
|---|---|
| Type designation | Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854672 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Lexan EXL 9330 |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP66/67 |
| wind load / maximum | 15 N; at 160 km/h |
Design, dimensions and weights 7
| width | 80 mm |
|---|---|
| height | 101 mm |
| depth | 35 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 4
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
| Marine classification association / Korean Register of Shipping | Yes |
(KRS) 1
| product conformity | UL 94-V0 |
|---|
Logistics 7
| Net weight | 0.11 kg |
|---|---|
| Package dimensions | 80 × 101 × 35 mm |
| Country of origin | Poland |
| Shipping weight | 0.61 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-6DC00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment .
What is the HS code of Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . is 4019169854672.
Where does Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT795-6DC ANT795-6DC IWLAN antenna with weak directional effect; incl. N-female plug: 9 dBi; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6DC, 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
