- Part number
- 6GK5795-4MX00-0AA0
- Model no
- Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English.
- RoHS

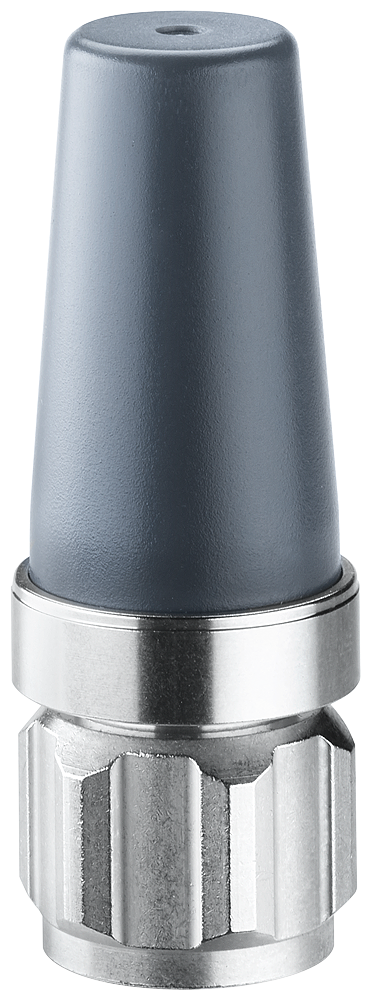

Siemens 6GK5795-4MX00-0AA0 SCALANCE W ANT795-4MX 2/2.5 dBi IP68/69K IWLAN Antenna
ANT795-4MX omnidirectional IWLAN antenna, N-Connect male straight, 2.4/5 GHz plus private 5G, IP68/IP69K
Description
About the Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English.
About the Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English.
The Siemens 6GK5795-4MX00-0AA0 ANT795-4MX is an omnidirectional IWLAN antenna for SCALANCE W wireless devices, covering 2.4 GHz and 5 GHz WLAN plus private 5G frequency bands through a straight N-Connect male plug. It mounts directly on the device housing, carries an IP68/IP69K rating for wash-down environments, and is approved for EN 50155 railway and EN 45545-2 fire-safety use.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
The 1.5-3 dB gain across five operating bands and the 22 mm barrel diameter make this the compact, low-profile pick for mounting straight onto a SCALANCE W radio rather than on a mast or wall, where a higher-gain panel or roof antenna in the same family reaches further but needs separate mounting hardware and a feeder cable. The EN 50155 and EN 45545-2 approvals put it in scope for rolling-stock cabling, where vibration class and fire-smoke-toxicity sign-off matter as much as RF performance. The 2 max VSWR and 50 ohm impedance keep return loss predictable when paired with SCALANCE W radios rated for the same N-Connector interface.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 8
| type of wireless network / is supported | 5G private networks, WLAN |
|---|---|
| operating frequency / 1 | 1700 ... 2000 MHz |
| operating frequency / 2 | 2000 ... 2700 MHz |
| operating frequency / 3 | 2700 ... 3800 MHz |
| operating frequency / 4 | 4900 ... 5925 MHz |
| operating frequency / 5 | 5925 ... 7125 MHz |
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.7 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 4.9 ... 5.92 GHz |
Electrical data 11
| antenna gain compared to spherical radiator: with linear radiation / in operating frequency area 1 / typical | 1.5 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 360° |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | male, straight |
| angle of inclination / downward / maximum | 0° |
Show all 54 specifications ↓ Show less ↑33 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5795-4MX00-0AA0 |
|---|---|
| Type designation | Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855341 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | ASA |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +85 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| protection class IP | IP68/IP69K |
| shock resistance | according to EN61373, category1, class b (for railway carriage) |
Design, dimensions and weights 5
| height | 55 mm |
|---|---|
| diameter | 22 mm |
| fastening method: wall mounting | No |
| fastening method: roof mounting | No |
| fastening method: directly on the device | Yes |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 4
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
| product conformity | UL 94-HB |
Logistics 7
| Net weight | 0.05 kg |
|---|---|
| Package dimensions | 22 × 55 × 22 mm |
| Country of origin | Poland |
| Shipping weight | 0.55 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-4MX00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English.
What is the HS code of Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. for customs?
The tariff (HS) code on file for Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. is 85177100.
What is the EAN of Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English.?
The EAN (GTIN) of Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. is 4019169855341.
Where does Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. ship from, and how fast?
Antenna ANT795-4MX ANT795-4MX antenna with omnidirectional characteristic; with railway approval; incl. N-Connect male plug straight: 2/2.5 dBi; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE devices with N-Connect connection system; scope of delivery: 1x ANT795-4MX, compact instructions as hard copy German/English. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
