- Part number
- 6GK5795-4MD00-0AA3
- Model no
- Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English.

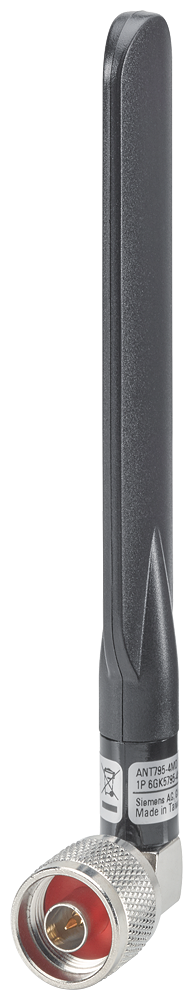

Siemens 6GK5795-4MD00-0AA3 SCALANCE W ANT795-4MD Omnidirectional N-Connect 90 Deg IWLAN Antenna
SCALANCE W ANT795-4MD omnidirectional IWLAN antenna, 3/5 dBi, 2.4/5 GHz, 90° N-Connect, IP65.
Description
About the Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English.
About the Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English.
The Siemens 6GK5795-4MD00-0AA3 (ANT795-4MD) is a SCALANCE W omnidirectional IWLAN antenna with 3 dBi gain at 2.4 GHz and 5 dBi at 5 GHz, radiating a full 360° horizontal pattern. It mounts directly on a SCALANCE W device through a fixed 90° N-Connect male plug, rated IP65 and -20 to +65°C for outdoor-capable installations.
Certifications & Standards
- RoHS
Selection Notes
The fixed 90° N-Connect plug on the ANT795-4MD turns the antenna body parallel to the SCALANCE W enclosure it mounts on, which keeps the profile low in a cabinet or on a flat panel where the straight-plug variant would project outward. Both share the same 3/5 dBi omnidirectional pattern and IP65 rating, so the choice between them comes down to available clearance around the mounting point rather than RF performance.
Specification
Full specification
General 2
| product type designation | Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 4
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.4835 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.35 GHz |
| operating frequency: for WLAN in 5 GHz frequency band 2 | 5.725 ... 5.85 GHz |
Electrical data 11
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 3 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 360° |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | male, 90° angle |
| angle of inclination / downward / maximum | 0° |
Show all 49 specifications ↓ Show less ↑32 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5795-4MD00-0AA3 |
|---|---|
| Type designation | Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854641 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Polycarbonate |
|---|
Ambient conditions 4
| ambient temperature: during operation | -20 ... +65 °C |
|---|---|
| ambient temperature: during storage | -20 ... +65 °C |
| ambient temperature: during transport | -20 ... +65 °C |
| protection class IP | IP65 |
Design, dimensions and weights 7
| width | 35 mm |
|---|---|
| height | 160 mm |
| depth | 13 mm |
| fastening method: mast mounting | No |
| fastening method: wall mounting | No |
| fastening method: roof mounting | No |
| fastening method: directly on the device | Yes |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| product conformity | UL 94-HB |
Logistics 7
| Net weight | 0.04 kg |
|---|---|
| Package dimensions | 35 × 160 × 13 mm |
| Country of origin | Taiwan, China |
| Shipping weight | 0.54 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-4MD00-0AA3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English.
What is the HS code of Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. for customs?
The tariff (HS) code on file for Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. is 85177100.
What is the EAN of Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English.?
The EAN (GTIN) of Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. is 4019169854641.
Where does Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. ship from, and how fast?
Antenna ANT795-4MD ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N- Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi- Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
