Siemens 6GK5795-4MC00-0AA3 SCALANCE W ANT795-4MC Omnidirectional N-Connect 2.4/5 GHz IWLAN Antenna

% $-44.79

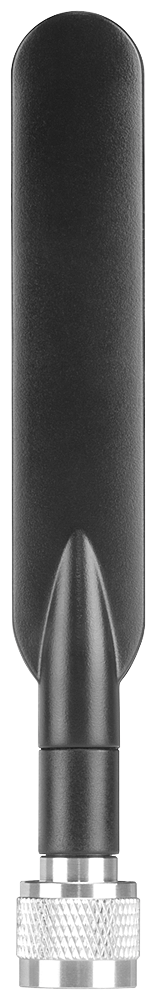

Siemens 6GK5795-4MC00-0AA3 ANT795-4MC SCALANCE W omnidirectional IWLAN antenna, N-Connect
Siemens 6GK5795-4MC00-0AA3 ANT795-4MC SCALANCE W omnidirectional IWLAN antenna, N-Connect

Siemens 6GK5795-4MC00-0AA3 SCALANCE W ANT795-4MC Omnidirectional N-Connect 2.4/5 GHz IWLAN Antenna

Brand: Siemens
Reference No: 6GK5795-4MC00-0AA3
Catalog No: 6GK5795-4MC00-0AA3
Series: SCALANCE W
Tariff Code (HS): 85177100
Communication: WLAN, 2.4/5 GHz (2.4-2.4835 / 5.15-5.35 / 5.725-5.85 GHz)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$44.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5795-4MC00-0AA3 (ANT795-4MC) is a SCALANCE W omnidirectional IWLAN antenna with 3 dBi gain at 2.4 GHz and 5 dBi at 5 GHz, radiating a full 360° horizontal pattern. It mounts directly on a SCALANCE W device through a straight N-Connect male plug, rated IP65 and -20 to +65°C for outdoor-capable installations.

Technical Specifications

SKU 6GK5795-4MC00-0AA3
EAN 4019169854634
Brand Siemens
Series SCALANCE W
Product Designation Antenna ANT795-4MC
Wireless Network WLAN
Operating Frequency (2.4 GHz) 2.4 - 2.4835 GHz
Operating Frequency (5 GHz, Band 1) 5.15 - 5.35 GHz
Operating Frequency (5 GHz, Band 2) 5.725 - 5.85 GHz
Antenna Gain (2.4 GHz) 3 dB
Antenna Gain (5 GHz) 5 dB
Impedance 50 Ω
Polarization Linear vertical
Radiation Characteristic Omnidirectional
VSWR (max) 2
Radiating Angle, Horizontal (2.4/5 GHz) 360°
Electrical Connections 1x N-Connector, male, straight
Outer Shell Material Polycarbonate
Silicon-Free Yes
Ambient Temperature (Operation/Storage/Transport) -20 ... +65 °C
Protection Class IP65
Dimensions (W x H x D) 35 x 160 x 13 mm
Net Weight 26 g
Mounting Direct-mount on SCALANCE W device
Country of Origin Taiwan

Certifications & Standards

  • RoHS

Selection Notes

The straight N-Connect plug on the ANT795-4MC threads directly onto a SCALANCE W device without the coax jumper an RSMA-fit antenna needs, and its IP65 rating lets that direct connection sit outdoors, unlike the indoor-only IP30 RSMA variant in the same omnidirectional family. Because the plug is fixed straight rather than angled, mounting orientation is set by how the SCALANCE W unit itself is installed.

Technical Details

Short Description
SCALANCE W ANT795-4MC omnidirectional IWLAN antenna, 3/5 dBi, 2.4/5 GHz, N-Connect, IP65.
Mounting Type
Direct-mount on SCALANCE W device
Protection Type
IP65
Catalog No
6GK5795-4MC00-0AA3
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6GK5795-4MC00-0AA3
Tariff Code
85177100
