- Part number
- 6GK5795-1TR10-0AA6
- Model no
- IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units.
SCALANCE WSiemens 6GK5795-1TR10-0AA6 SCALANCE W TI795-1R R-SMA 50 Ohm IP65 Networking Accessory
SCALANCE W R-SMA male terminating resistor TI795-1R, 50 Ω, 0-6 GHz, IP65, pack of 3.
Description
About the IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units.
About the IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units.

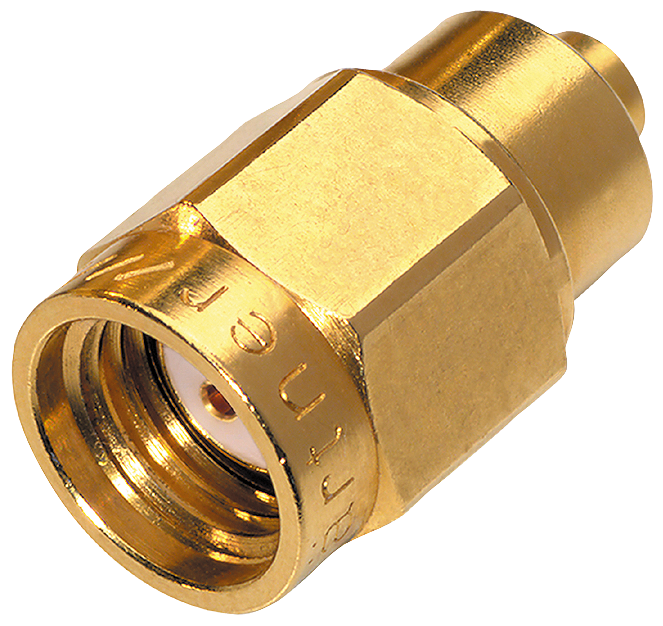

The Siemens 6GK5795-1TR10-0AA6 (TI795-1R) is a SCALANCE W R-SMA male terminating resistor with 50 Ω impedance and a minimum 25 dB return loss across 0-6 GHz, sold as a pack of three. Its gold-plated brass connector, IP65 rating and -40 to +70°C range let it cap an unused R-SMA antenna port on a SCALANCE W access point outdoors.
Certifications & Standards
- RoHS
Selection Notes
The R-SMA male connector on the TI795-1R matches the smaller antenna ports used on SCALANCE W clients and some access point variants, where the TI795-1N's N-Connect thread would not fit. Sold three to a pack, it covers a multi-port radio or a small stock of spares for R-SMA ports left open after an antenna is removed or relocated.
Specification
Full specification
General 2
| product type designation | IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. |
|---|---|
| product brand name | SCALANCE |
Electrical data 5
| number of electrical connections | 1 |
|---|---|
| type of electrical connection | R-SMA male |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
| return loss / minimum | 25 dB |
Mechanical data 1
| material | brass, gold-plated |
|---|
Show all 31 specifications ↓ Show less ↑23 more values in Identification, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5795-1TR10-0AA6 |
|---|---|
| Type designation | IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169852852 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP65 |
Design, dimensions and weights 2
| diameter | 9 mm |
|---|---|
| length | 15 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 6
| Net weight | 0.005 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.505 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-1TR10-0AA6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units.
What is the HS code of IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. for customs?
The tariff (HS) code on file for IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. is 85332100.
What is the EAN of IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units.?
The EAN (GTIN) of IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. is 4019169852852.
Where does IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. ship from, and how fast?
IWLAN terminating resistor TI795-1R RSMA Male R-SMA male termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz; 1 pack=3 units. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
