- Part number
- 6GK5795-1TN00-1AA0
- Model no
- IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz
SCALANCE WSiemens 6GK5795-1TN00-1AA0 SCALANCE W TI795-1N N-Connect 50 Ohm IP65 Networking Accessory
SCALANCE W N-Connect male terminating resistor TI795-1N, 50 Ω, 0-6 GHz, IP65.
Description
About the IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz
About the IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz

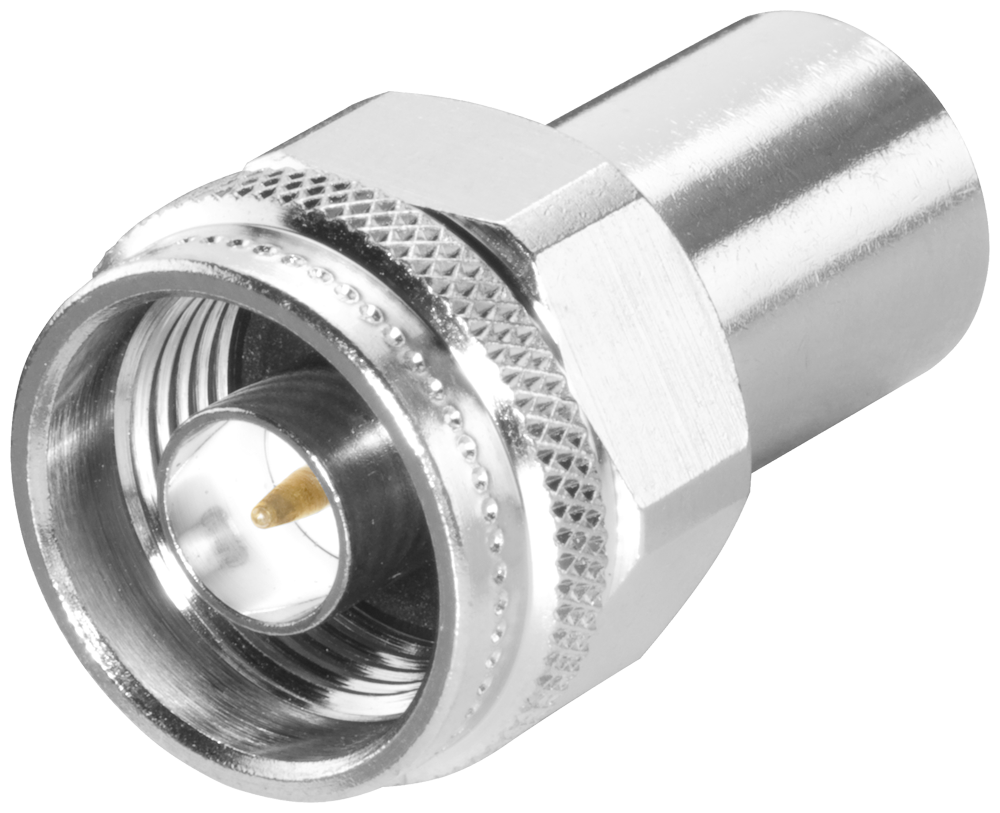

The Siemens 6GK5795-1TN00-1AA0 (TI795-1N) is a SCALANCE W N-Connect male terminating resistor with 50 Ω impedance and a minimum 25 dB return loss across 0-6 GHz. Rated IP65 and -40 to +70°C, it caps an unused N-Connect port on a SCALANCE W access point or antenna cable to keep the RF system matched.
Certifications & Standards
- RoHS
Selection Notes
Terminating an unused N-Connect port on a SCALANCE W antenna splitter or access point with the TI795-1N holds the line at 50 Ω, keeping the minimum 25 dB return loss the WLAN radio expects instead of leaving the port open to reflect signal back into the transmitter. Its IP65 rating lets it sit outdoors alongside the antennas and cabling it terminates.
Specification
Full specification
General 2
| product type designation | IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz |
|---|---|
| product brand name | SCALANCE |
Electrical data 5
| number of electrical connections | 1 |
|---|---|
| type of electrical connection | N-Connect male |
| transmission frequency | 0 ... 6 GHz |
| impedance | 50 Ω |
| return loss / minimum | 25 dB |
Ambient conditions 4
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP65 |
Show all 31 specifications ↓ Show less ↑20 more values in Identification, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5795-1TN00-1AA0 |
|---|---|
| Type designation | IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4018359299323 |
| ETIM class | EC001698 |
| eCl@ss | 19070107 |
Design, dimensions and weights 2
| diameter | 21 mm |
|---|---|
| length | 34.5 mm |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 7
| Net weight | 0.045 kg |
|---|---|
| Package dimensions | 64 × 97 × 367 mm |
| Country of origin | DE |
| Shipping weight | 0.545 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5795-1TN00-1AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz
What is the HS code of IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz for customs?
The tariff (HS) code on file for IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz is 85332100.
What is the EAN of IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz?
The EAN (GTIN) of IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz is 4018359299323.
Where does IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz ship from, and how fast?
IWLAN terminating resistor TI795-1N N-Connect Male N-Connect male termination Impedance TI795-1N 50 ohm; 2.4 and 5 GHz, IP65, 0...6 GHz ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
