- Part number
- 6GK5793-8DL00-0AA0
- Model no
- Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment .

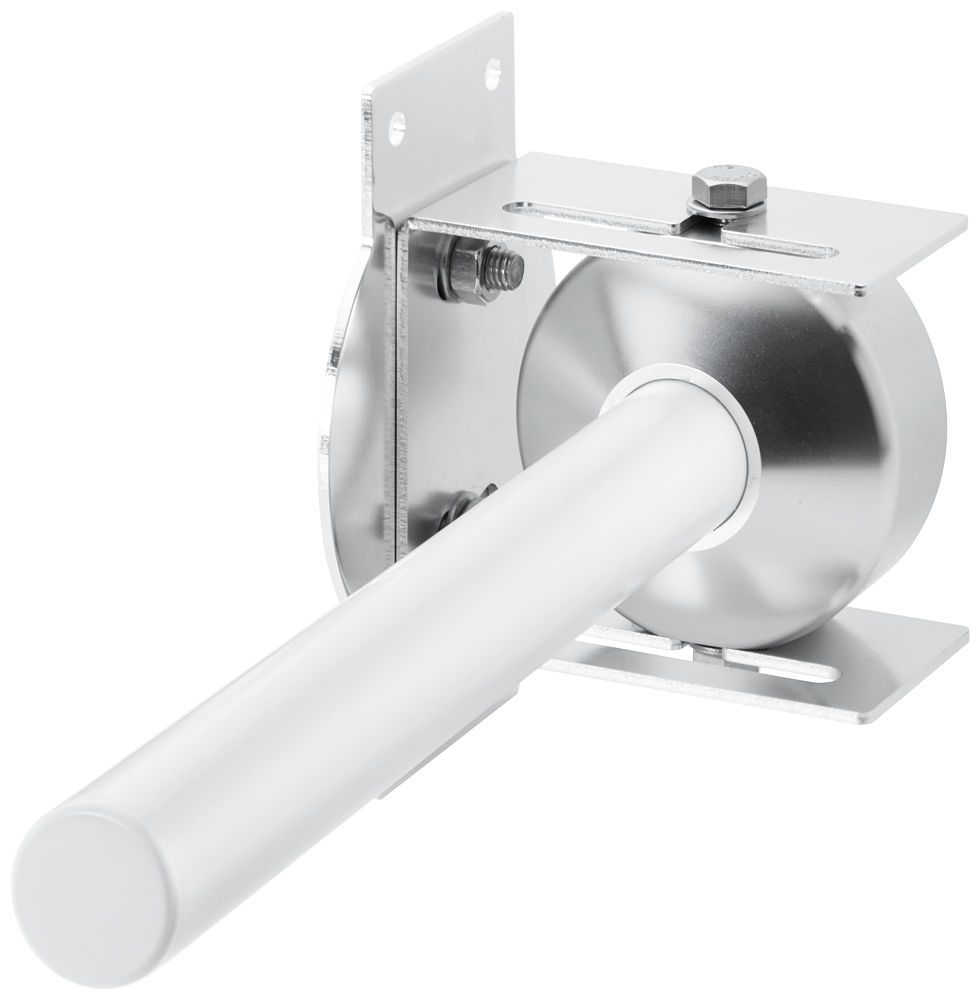

Siemens 6GK5793-8DL00-0AA0 SCALANCE W ANT793-8DL 14 dBi 5 GHz Railway IWLAN Antenna
SCALANCE W ANT793-8DL IWLAN antenna, 14 dBi gain, 5 GHz, EN 50155 railway rating, IP66, -40 to +70°C.
Description
About the Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment .
About the Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment .
The Siemens 6GK5793-8DL00-0AA0 (ANT793-8DL) is a SCALANCE W IWLAN antenna with vertical-horizontal dual polarization and 14 dBi gain in the 4.9-5.9 GHz band, rated for railway applications under EN 50155. Its 30° by 30° directional beam, IP66 housing and -40 to +70°C range suit a mast or wall mount on rolling stock or trackside infrastructure exposed to wind speeds up to 200 km/h.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
The EN 50155 railway rating and EN 45545-2 fire-protection compliance set the ANT793-8DL apart from the other SCALANCE W antennas in the series, which target general industrial or outdoor use rather than rolling stock. Its silicon-free ASA shell avoids the outgassing concerns silicone housings raise in enclosed railway interiors. At 14 dBi with a 30° by 30° beam, it sits between the wide-sector and narrow point-to-point antennas in the line, giving trackside or on-vehicle installations moderate range without the alignment sensitivity of the highest-gain variants.
Specification
Full specification
General 2
| product type designation | Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band 1 | 4.9 ... 5.9 GHz |
Electrical data 13
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 5 GHz frequency band | 14 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Dual linear vertical-horizontal |
| radiation characteristic | directional |
| standing wave ratio (VSWR) / maximum | 2.5 |
| radiating angle of the antenna | take the antenna diagram into account |
| in the 5 GHz frequency band / horizontal | 30° |
| in the 5 GHz frequency band / vertical | 30° |
| number of electrical connections / of the antenna | 2 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| crosstalk attenuation / between the antenna connections | 19 dB |
| front-to-back ratio | 35 dB |
Show all 52 specifications ↓ Show less ↑35 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5793-8DL00-0AA0 |
|---|---|
| Type designation | Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169855938 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | ASA |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP66 |
| wind load / maximum | suitable for wind speeds up to 200 km/h |
Design, dimensions and weights 8
| width | 100 mm |
|---|---|
| height | 283 mm; incl. bracket |
| depth | 40 mm |
| fastening method: mast mounting | Yes |
| fastening method: flat roof mounting | No |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
Logistics 7
| Net weight | 0.52 kg |
|---|---|
| Package dimensions | 35 × 80 × 101 mm |
| Country of origin | CN |
| Shipping weight | 1.02 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5793-8DL00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment .
What is the HS code of Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . is 4019169855938.
Where does Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT793-8DL ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 dBi; IP66 (-45-+70 °C), 5 GHz; suitable for railway applications; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DL, 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
