- Part number
- 6GK5793-8DK00-0AA0
- Model no
- Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .

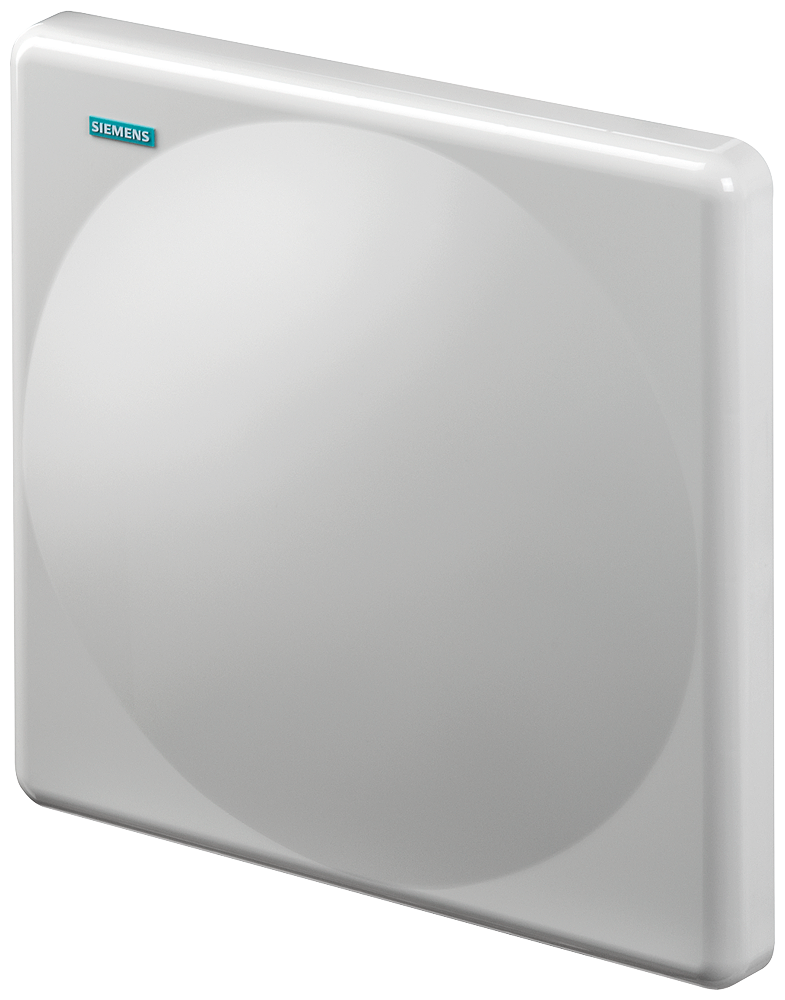

Siemens 6GK5793-8DK00-0AA0 SCALANCE W ANT793-8DK 23 dBi 5 GHz Directional IWLAN Antenna
SCALANCE W ANT793-8DK IWLAN antenna, 23 dBi gain, 5 GHz, directional beam, IP67, -45 to +70°C.
Description
About the Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .
About the Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .
The Siemens 6GK5793-8DK00-0AA0 (ANT793-8DK) is a SCALANCE W IWLAN antenna with vertical-horizontal dual polarization and 23 dBi gain in the 5.15-5.875 GHz band, concentrated into a tight 9° by 9° directional beam. Rated IP67 and -45 to +70°C, its 371 x 371 mm panel withstands a 389 N wind load at 220 km/h and mounts on a wall or mast through two N-female connectors for the longest-range point-to-point links in the series.
Certifications & Standards
- RoHS
Selection Notes
The 9° by 9° beamwidth and 23 dBi gain on the ANT793-8DK give it the longest reach in the SCALANCE W antenna line, at the cost of alignment tolerance during mast installation. Its 40 dB crosstalk attenuation and 35 dB front-to-back ratio keep the dual-polarized ports isolated enough for MIMO operation over a long point-to-point hop. At 2.5 kg and 371 x 371 mm, the mounting hardware and mast rating need to account for the panel's size and its 389 N wind load before choosing it over a smaller, lower-gain antenna in the same series.
Specification
Full specification
General 2
| product type designation | Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.875 GHz |
Electrical data 13
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 5 GHz frequency band | 23 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Dual linear vertical-horizontal |
| radiation characteristic | directional |
| standing wave ratio (VSWR) / maximum | 1.7 |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 9° |
| radiating angle of the antenna: in the 5 GHz frequency band / vertical | 9° |
| number of electrical connections / of the antenna | 2 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| crosstalk attenuation / between the antenna connections | 40 dB |
| front-to-back ratio | 35 dB |
Show all 48 specifications ↓ Show less ↑31 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5793-8DK00-0AA0 |
|---|---|
| Type designation | Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854603 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Polycarbonate |
|---|
Ambient conditions 5
| ambient temperature: during operation | -45 ... +70 °C |
|---|---|
| ambient temperature: during storage | -45 ... +70 °C |
| ambient temperature: during transport | -45 ... +70 °C |
| protection class IP | IP67 |
| wind load / maximum | 389 N; frontal at 220 km/h |
Design, dimensions and weights 7
| width | 371 mm |
|---|---|
| height | 371 mm |
| depth | 40 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 7
| Net weight | 2.5 kg |
|---|---|
| Package dimensions | 371 × 371 × 40 mm |
| Country of origin | IN |
| Shipping weight | 3.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5793-8DK00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .
What is the HS code of Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . is 4019169854603.
Where does Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT793-8DK ANT793-8DK IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
