- Part number
- 6GK5793-8DJ00-0AA0
- Model no
- Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment .

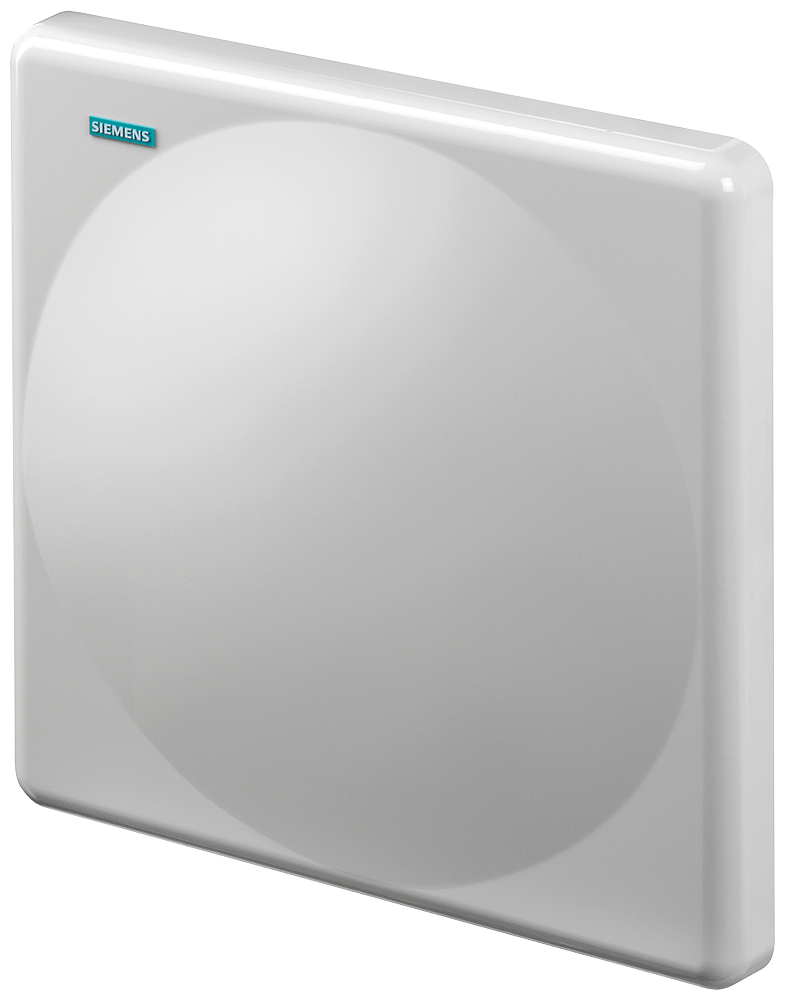

Siemens 6GK5793-8DJ00-0AA0 SCALANCE W ANT793-8DJ 18 dBi 5 GHz Directional IWLAN Antenna
SCALANCE W ANT793-8DJ IWLAN antenna, 18 dBi gain, 5 GHz, directional beam, IP67, -45 to +70°C.
Description
About the Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment .
About the Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment .
The Siemens 6GK5793-8DJ00-0AA0 (ANT793-8DJ) is a SCALANCE W IWLAN antenna with vertical-horizontal dual polarization and 18 dBi gain in the 5.15-5.875 GHz band, focused into a narrow 17° by 17° directional beam. Rated IP67 and -45 to +70°C with a 104 N wind-load rating, it mounts on a wall or mast through two N-female connectors for long-range outdoor point-to-point WLAN links.
Certifications & Standards
- RoHS
Selection Notes
The narrow 17° by 17° beam and 18 dBi gain on the ANT793-8DJ concentrate energy over distance, so it fits a point-to-point backhaul link between two masts rather than blanket coverage of a work area. Its 1.7 VSWR and 30 dB front-to-back ratio limit back-lobe interference when several access points share the same 5 GHz channel plan nearby. The IP67 housing and 104 N wind-load rating at 220 km/h suit an elevated outdoor mount where the wider-beam, lower-gain SCALANCE W antennas would leave unwanted spillover into adjacent cells.
Specification
Full specification
General 2
| product type designation | Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.875 GHz |
Electrical data 13
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 5 GHz frequency band | 18 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Dual linear vertical-horizontal |
| radiation characteristic | directional |
| standing wave ratio (VSWR) / maximum | 1.7 |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 17° |
| radiating angle of the antenna: in the 5 GHz frequency band / vertical | 17° |
| number of electrical connections / of the antenna | 2 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| crosstalk attenuation / between the antenna connections | 30 dB |
| front-to-back ratio | 30 dB |
Show all 49 specifications ↓ Show less ↑32 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5793-8DJ00-0AA0 |
|---|---|
| Type designation | Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854597 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Polycarbonate / aluminum |
|---|
Ambient conditions 5
| ambient temperature: during operation | -45 ... +70 °C |
|---|---|
| ambient temperature: during storage | -45 ... +70 °C |
| ambient temperature: during transport | -45 ... +70 °C |
| protection class IP | IP67 |
| wind load / maximum | 104 N; frontal at 220 km/h |
Design, dimensions and weights 7
| width | 190 mm |
|---|---|
| height | 190 mm |
| depth | 30.5 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Standards, specifications, approvals 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| product conformity | UL 94-HB |
Logistics 7
| Net weight | 0.7 kg |
|---|---|
| Package dimensions | 13 × 35 × 160 mm |
| Country of origin | IN |
| Shipping weight | 1.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5793-8DJ00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment .
What is the HS code of Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . is 4019169854597.
Where does Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT793-8DJ ANT793-8DJ IWLAN antenna Vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 18 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
