- Part number
- 6GK5793-6DG00-0AA0
- Model no
- Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .

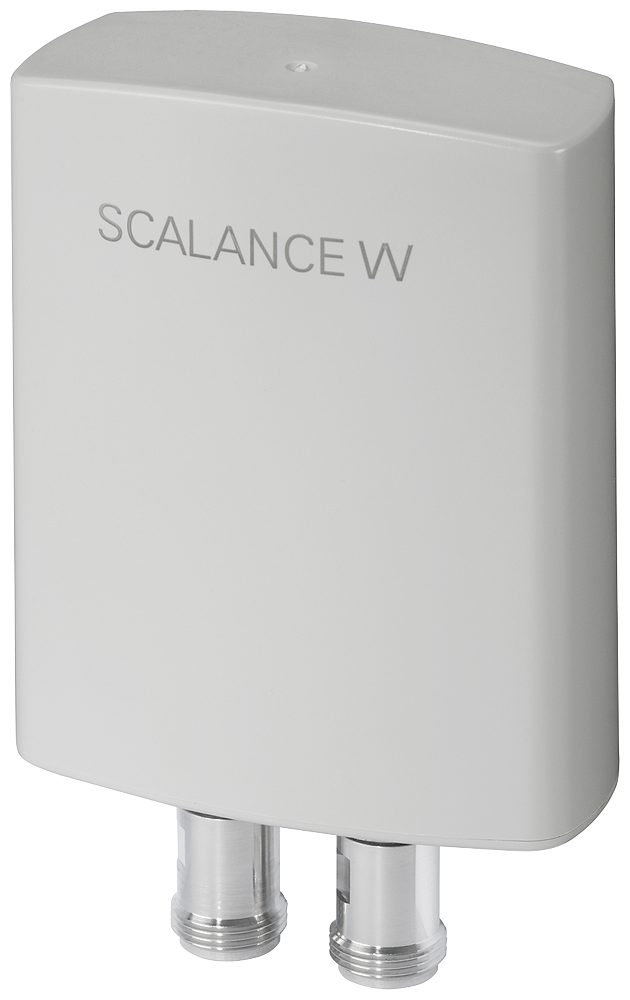

Siemens 6GK5793-6DG00-0AA0 SCALANCE W ANT793-6DG 9 dBi 5 GHz Dual-Slant IWLAN Antenna
SCALANCE W ANT793-6DG IWLAN antenna, 9 dBi gain, 5 GHz, dual-slant sector pattern, IP66/67, -40 to +80°C.
Description
About the Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .
About the Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .
The Siemens 6GK5793-6DG00-0AA0 (ANT793-6DG) is a SCALANCE W IWLAN antenna with dual-slant +/-45° polarization and a 9 dBi gain in the 5.15-5.875 GHz band, giving it a wide 70° horizontal by 60° vertical sector pattern. Rated IP66/67 and -40 to +80°C, it mounts on a wall or mast through two N-female connectors for outdoor point-to-multipoint WLAN links.
Certifications & Standards
- RoHS
- EN 50155
- EN 45545-2
Selection Notes
The 70° horizontal by 60° vertical sector pattern on the ANT793-6DG trades reach for coverage area, so one antenna can blanket a work cell or yard sector rather than aim at a single distant client. Its 9 dBi gain across two N-female ports matches a 2x2 MIMO radio without the narrow beam of a higher-gain directional antenna, which keeps alignment tolerance wide during mast installation. The -40 to +80°C rating and IP66/67 housing support an outdoor run where a higher-gain, narrower-beam SCALANCE W antenna would need more precise pointing.
Specification
Full specification
General 2
| product type designation | Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band 1 | 5.15 ... 5.875 GHz |
Electrical data 13
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 5 GHz frequency band | 9 dB |
|---|---|
| impedance | 50 Ω |
| polarization | dual linear +/- 45° slant |
| radiation characteristic | Sector antenna |
| standing wave ratio (VSWR) / maximum | 2 |
| radiating angle of the antenna: in the 5 GHz frequency band / horizontal | 70° |
| radiating angle of the antenna: in the 5 GHz frequency band / vertical | 60° |
| number of electrical connections / of the antenna | 2 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| crosstalk attenuation / between the antenna connections | 20 dB |
| front-to-back ratio | 20 dB |
Show all 50 specifications ↓ Show less ↑33 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5793-6DG00-0AA0 |
|---|---|
| Type designation | Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169854580 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Lexan EXL 9330 |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP66/67 |
| wind load / maximum | 15 N; frontal at 160 km/h |
Design, dimensions and weights 7
| width | 80 mm |
|---|---|
| height | 101 mm |
| depth | 35 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Standards, specifications, approvals 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
Logistics 7
| Net weight | 0.11 kg |
|---|---|
| Package dimensions | 13 × 35 × 160 mm |
| Country of origin | Poland |
| Shipping weight | 0.61 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5793-6DG00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
- railway application in accordance with EN 50155
- fire protection in accordance with EN 45545-2
Quick answers
Questions about the Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .
What is the HS code of Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . is 4019169854580.
Where does Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT793-6DG ANT793-6DG IWLAN antenna Dual-slant antenna with weak directional effect incl. 2x N-female connectors: 9 dBi; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
