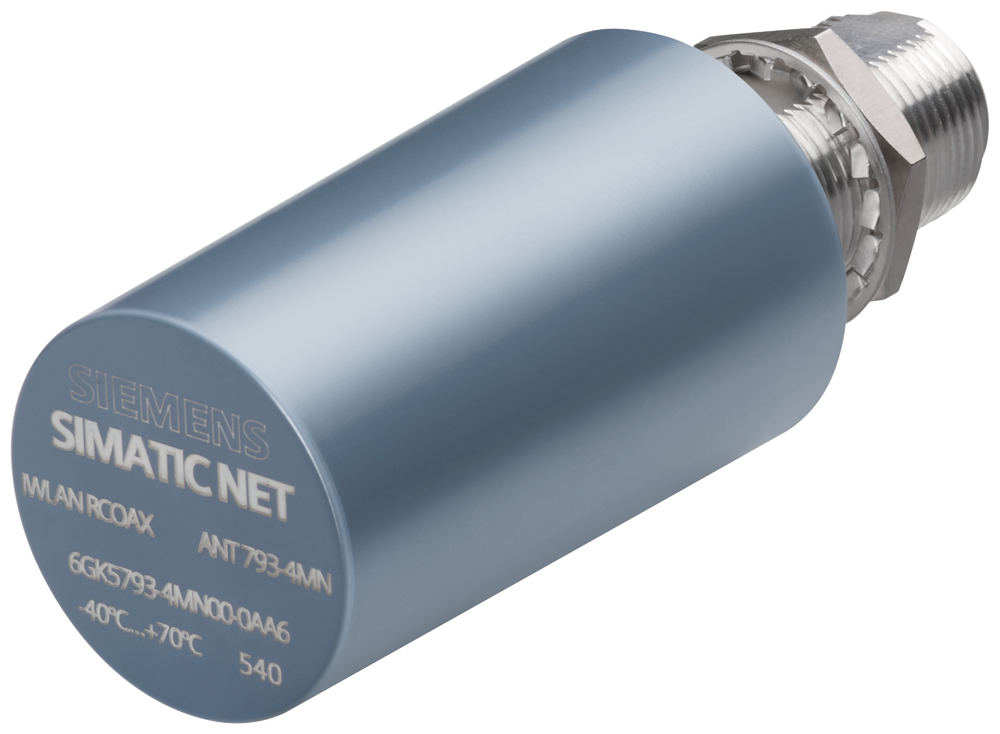

Siemens 6GK5793-4MN00-0AA6 SCALANCE W ANT793-4MN 5 GHz 6 dBi Omnidirectional IWLAN Antenna

The Siemens 6GK5793-4MN00-0AA6 ANT793-4MN is an IWLAN antenna for RCoax leaky-feeder systems, providing a lambda/4 omnidirectional radiation pattern with 6 dBi gain in the 5.15-5.85 GHz WLAN band. It terminates in an N-connector (female), carries an IP65 enclosure rating, and is specified for -40...+70 degrees C operation, suiting it to permanently mounted outdoor or harsh-environment WLAN links.

Technical Specifications

Certifications & Standards

• RoHS

Selection Notes

The 6 dBi gain and 40-degree vertical radiating angle concentrate signal along the horizontal plane, which matches a corridor, tunnel, or conveyor-line RCoax installation rather than a point-to-point link. Its N-connector and 50 Ohm impedance are the standard RF interface for pairing with SCALANCE W access points and clients. Because it is rated IP65 for -40...+70 degrees C, it can be mounted outside a cabinet without extra weatherproofing, unlike indoor-only antenna variants in the same series.

Applications

RCoax leaky-feeder wireless coverage for tunnels, elevator shafts, conveyor lines, and other long, narrow travel paths where a directional or omnidirectional rod antenna cannot provide continuous coverage.
