- Part number
- 6GK5792-8DN00-0AA6
- Model no
- Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment .

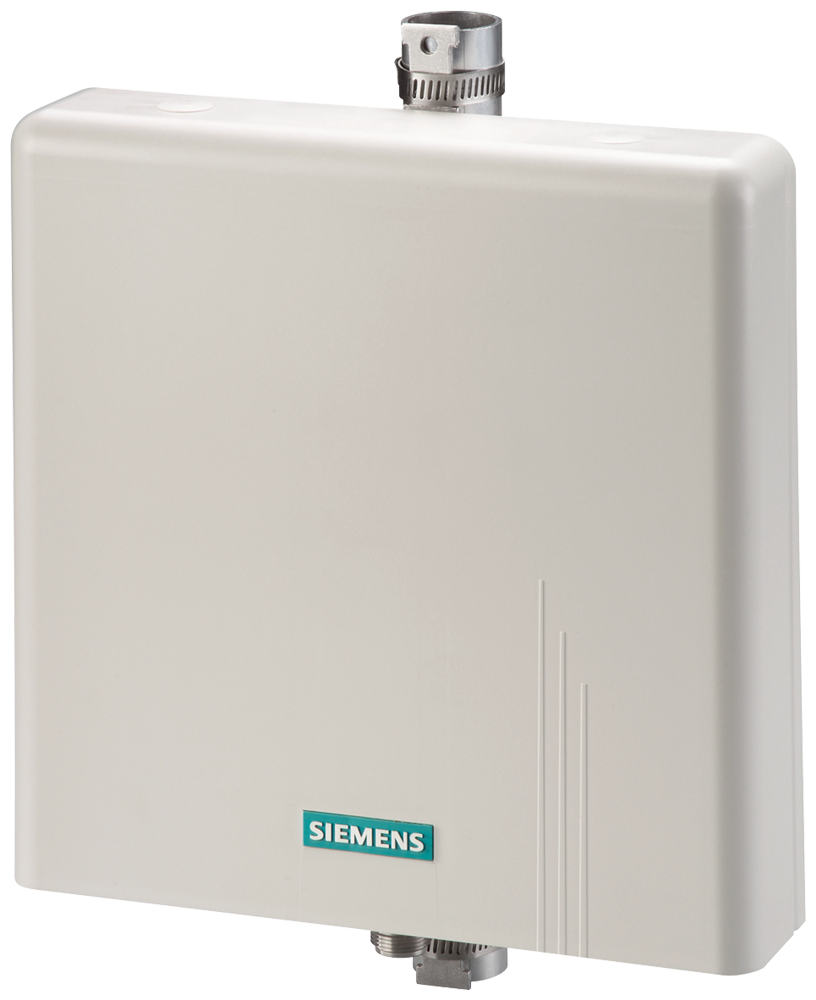

Siemens 6GK5792-8DN00-0AA6 ANT792-8DN Directional 14 dB 2.4 GHz IP23 IWLAN Antenna
ANT792-8DN directional IWLAN antenna, 14 dB gain, 2.4 GHz, 35-degree beamwidth, N-Connector, IP23.
Description
About the Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment .
About the Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment .
The Siemens 6GK5792-8DN00-0AA6 ANT792-8DN is a directional IWLAN antenna with 14 dB gain, a 35-degree horizontal beamwidth, and a 20 dB front-to-back ratio for the 2.4 GHz band. It terminates in a female N-Connector, mounts on a mast or wall, and is rated IP23 for -40 to +80 degrees C outdoor use with an ASA enclosure that withstands 57 N wind load at 160 km/h.
Certifications & Standards
- RoHS
Selection Notes
The 14 dB gain and narrow 35-degree beamwidth make this the antenna for point-to-point or point-to-multipoint links over distance, such as connecting a remote yard access point back to a central switch room, rather than area coverage. The 20 dB front-to-back ratio limits interference picked up from behind the antenna, which matters when it is mounted near other radios on the same mast. IP23 is lower than the omnidirectional and Helix antennas in this family, so it depends on its mounting aid and enclosure design rather than a sealed housing for weather resistance. Pick the ANT792-6MN omnidirectional antenna instead when client devices need to associate from more than one direction.
Specification
Full specification
General 2
| product type designation | Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . |
|---|---|
| product brand name | SCALANCE |
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.7 GHz |
Electrical data 11
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 14 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | directional |
| standing wave ratio (VSWR) / maximum | 1.5 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 35° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| front-to-back ratio | 20 dB |
Show all 46 specifications ↓ Show less ↑31 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5792-8DN00-0AA6 |
|---|---|
| Type designation | Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169852708 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | ASA |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP23 |
| wind load / maximum | 57 N; at 160 km/h |
Design, dimensions and weights 7
| width | 200 mm |
|---|---|
| height | 200 mm |
| depth | 43 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 1
| certificate of suitability: RoHS conformity | Yes |
|---|
Logistics 6
| Net weight | 0.5 kg |
|---|---|
| Country of origin | Poland |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5792-8DN00-0AA6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment .
What is the HS code of Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . for customs?
The tariff (HS) code on file for Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . is 85177100.
What is the EAN of Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment .?
The EAN (GTIN) of Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . is 4019169852708.
Where does Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . ship from, and how fast?
Antenna ANT792-8DN ANT792-8DN IWLAN antenna with strong directional effect incl. N-female plug: 14 dBi, IP23, outdoor, (-40-+70 °C); 2.4 GHz, Wi-Fi compliance observe national approvals; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-8DN, 1x mounting aid for alignment 1x mounting aid for alignment . ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
