- Part number
- 6GK5792-6MN00-0AA6

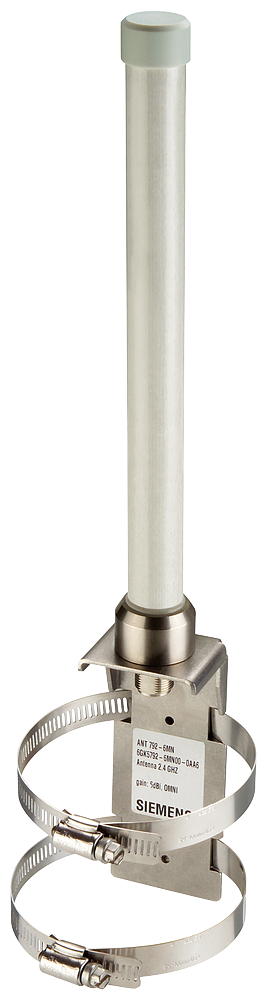

Siemens 6GK5792-6MN00-0AA6 ANT792-6MN Omnidirectional 6 dB 2.4 GHz IP67 IWLAN Antenna
ANT792-6MN omnidirectional IWLAN antenna, 6 dB gain, 2.4 GHz, N-Connector, IP67, mast/wall mount.
Description
About the 6GK5792-6MN00-0AA6
About the 6GK5792-6MN00-0AA6
The Siemens 6GK5792-6MN00-0AA6 ANT792-6MN is an omnidirectional IWLAN antenna with 6 dB gain, linear vertical polarization, and 360-degree horizontal coverage for the 2.4 GHz band. It terminates in a female N-Connector, carries an IP67 rating for -40 to +80 degrees C outdoor use, and mounts on a mast or wall with a glass-fiber enclosure rated for 3 N wind load at 160 km/h.
Certifications & Standards
- RoHS
Selection Notes
360-degree horizontal coverage and IP67 make this the antenna for open-area outdoor WLAN cells - yards, container terminals, mine sites - where client devices approach from any direction, unlike the sector-pattern Helix antenna built for leaky-feeder tunnel runs. The 30-degree vertical beamwidth keeps gain concentrated near horizon level, so mounting height above the coverage area affects usable range more than mast position does. Pick the ANT792-8DN directional antenna instead for point-to-point links or when a longer range in one direction is needed.
Specification
Full specification
Product type designation Antenna ANT792-6MN ANT792-6MN IWLAN antenna with omnidirectional characteristic incl. N-female plug: 6 dBi IP67 (-40-+70 °C); 2.4 GHz; Wi-Fi compliance and national approvals to be observed; mounting on wall or mast, compact instructions as hard copy German/English, scope of delivery: 1x ANT792-6MN, 1
| product brand name | SCALANCE |
|---|
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.5 GHz |
Electrical data 10
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 6 dB |
|---|---|
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 1.8 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 360° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
Show all 44 specifications ↓ Show less ↑31 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 9
| Part number | 6GK5792-6MN00-0AA6 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169852692 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Glass fiber |
|---|
Ambient conditions 5
| ambient temperature: during operation | -40 ... +80 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| protection class IP | IP67 |
| wind load / maximum | 3 N; at 160 km/h |
Design, dimensions and weights 7
| width | 50 mm |
|---|---|
| height | 370 mm |
| depth | 40 mm |
| fastening method: mast mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: roof mounting | No |
| fastening method: directly on the device | No |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| product conformity | UL 94-HB |
Logistics 6
| Net weight | 0.3 kg |
|---|---|
| Country of origin | CN |
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5792-6MN00-0AA6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the 6GK5792-6MN00-0AA6
What is the HS code of 6GK5792-6MN00-0AA6 for customs?
The tariff (HS) code on file for 6GK5792-6MN00-0AA6 is 85177100.
What is the EAN of 6GK5792-6MN00-0AA6?
The EAN (GTIN) of 6GK5792-6MN00-0AA6 is 4019169852692.
Where does 6GK5792-6MN00-0AA6 ship from, and how fast?
6GK5792-6MN00-0AA6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
