- Part number
- 6GK5792-4DN00-0AA6

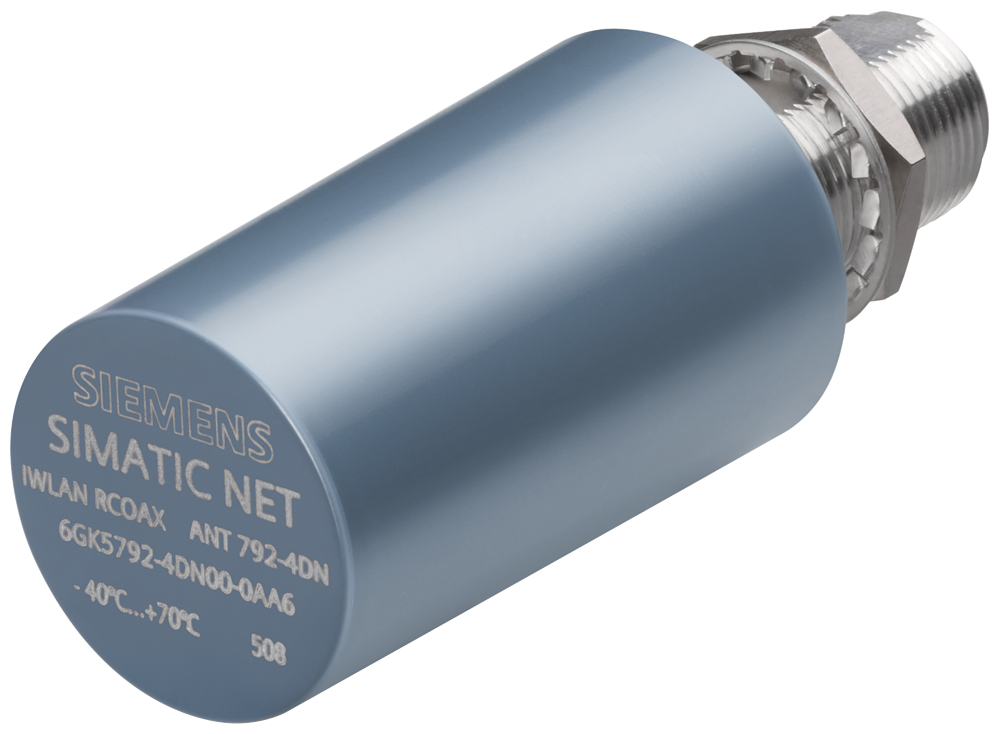

Siemens 6GK5792-4DN00-0AA6 ANT792-4DN RCoax Helix Antenna 4 dB 2.4 GHz IWLAN Antenna
ANT792-4DN RCoax Helix antenna, 4 dB gain, 2.4 GHz, right-hand circular, N-Connector, IP65.
Description
About the 6GK5792-4DN00-0AA6
About the 6GK5792-4DN00-0AA6
The Siemens 6GK5792-4DN00-0AA6 ANT792-4DN is an RCoax IWLAN antenna with a 4 dB Helix element, right-hand circular polarization, and a 90-degree horizontal sector pattern for the 2.4 GHz band. It terminates in a female N-Connector, carries an IP65 rating for -40 to +70 degrees C outdoor use, and is built from polycarbonate to UL 94-V1.
Certifications & Standards
- RoHS
Selection Notes
Circular polarization and the 90-degree sector pattern make this Helix antenna a match for RCoax leaky-feeder systems in tunnels or aisles, where reflections would otherwise cause a polarization mismatch with a linear antenna. The 2.5 dB front-to-back ratio limits gain picked up from behind the antenna, so orientation toward the coverage zone matters more than with an omnidirectional type. Pick the ANT792-6MN omnidirectional antenna instead for open-area coverage where a single sector direction is not sufficient.
Specification
Full specification
Product type designation RCoax Antenna ANT792-4DN ANT792-4DN IWLAN antenna for RCoax systems, 4 dBi Helix antenna, circular polarizing clockwise; incl. N-female plug IP65 (-40-+70 °C), 2.4 GHz, 1
| product brand name | SCALANCE |
|---|
Radio frequencies 2
| type of wireless network / is supported | WLAN |
|---|---|
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.4 ... 2.4835 GHz |
Electrical data 12
| antenna gain compared to spherical radiator: with linear radiation | maximum antenna gain measured in open space |
|---|---|
| antenna gain compared to spherical radiator: of the WLAN antenna / in the 2.4 GHz frequency band | 4 dB |
| impedance | 50 Ω |
| polarization | Right hand circular |
| radiation characteristic | Sector antenna |
| standing wave ratio (VSWR) / maximum | 1.8 |
| radiating angle of the antenna: in the 2.4 GHz frequency band / horizontal | 90° |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | female |
| angle of inclination / downward / maximum | 0° |
| front-to-back ratio | 2.5 dB |
Show all 40 specifications ↓ Show less ↑25 more values in Identification, Mechanical data, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Standards, specifications, approvals, Logistics.
Identification 9
| Part number | 6GK5792-4DN00-0AA6 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4019169851190 |
| ETIM class | EC001698 |
| eCl@ss | 19070105 |
Mechanical data 1
| material: of outer shell | Polycarbonate |
|---|
Ambient conditions 4
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| protection class IP | IP65 |
Design, dimensions and weights 2
| height | 78.7 mm |
|---|---|
| diameter | 30 mm |
Product features, product functions, product components / general 1
| product feature / silicon-free | Yes |
|---|
Standards, specifications, approvals 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| product conformity | UL 94-V1 |
Logistics 6
| Net weight | 0.114 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 0.614 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5792-4DN00-0AA6
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS conformity
Quick answers
Questions about the 6GK5792-4DN00-0AA6
What is the HS code of 6GK5792-4DN00-0AA6 for customs?
The tariff (HS) code on file for 6GK5792-4DN00-0AA6 is 85177100.
What is the EAN of 6GK5792-4DN00-0AA6?
The EAN (GTIN) of 6GK5792-4DN00-0AA6 is 4019169851190.
Where does 6GK5792-4DN00-0AA6 ship from, and how fast?
6GK5792-4DN00-0AA6 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
