- Part number
- 6GK5778-1GY00-0TA0
- Model no
- W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel
Siemens has announced the end of 6GK5778-1GY00-0TA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

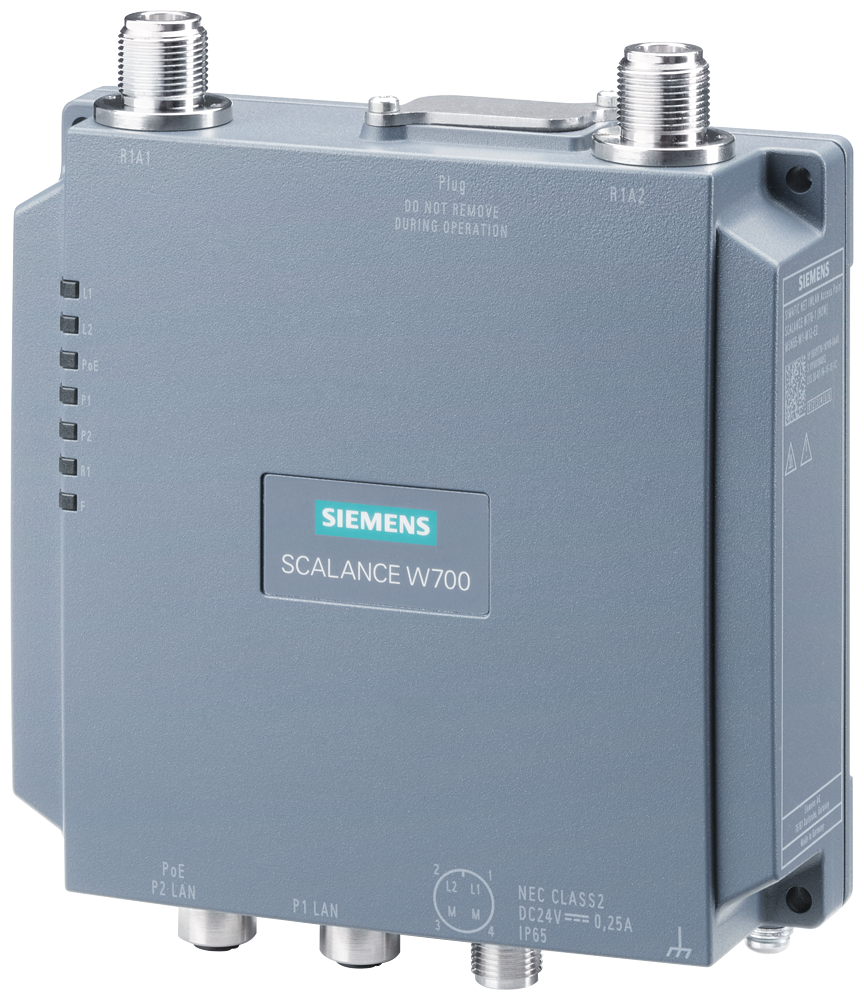

Siemens 6GK5778-1GY00-0TA0 SCALANCE W778-1 M12 EEC 802.11n IP65 Industrial WLAN Access Point
SCALANCE W778-1 M12 EEC IWLAN access point, 802.11n, 300 Mbit/s, IP65, -40 to +75C, railway certified.
Description
About the W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel
About the W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel
The Siemens 6GK5778-1GY00-0TA0 SCALANCE W778-1 M12 EEC is an IWLAN access point built for expanded environmental conditions, with a single 802.11n radio at up to 300 Mbit/s gross, N-Connect antenna ports, M12 PoE Ethernet, and conformal coating for a -40 to +75 degrees C operating range. It runs from 16.8-31.2 V DC or Power-over-Ethernet, carries an IP65 enclosure, and adds railway EN 50155 and FM Class I Division 2 approvals.
Certifications & Standards
- CE
- RCM
- E1
- EN 50155
- EN 50121-4
- EN 45545-2
Selection Notes
The -40 to +75 degrees C range and conformal coating are what separate this EEC variant from the standard W778-1 M12 - both matter on rolling stock or outdoor gantries with condensation or wide seasonal swings. EN 50155 and EN 45545-2 fire-protection certification make it the variant to specify for rail vehicle installations; the standard M12 model does not carry those. FM 3611 Class I Division 2 and the same 300 Mbit/s 802.11n radio carry over unchanged from the base model, so throughput and hazardous-area suitability are identical. Choose the standard W778-1 M12 instead for fixed indoor cabinets where the coating and extended range add cost without a use case.
Specification
Full specification
General 2
| product type designation | W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel |
|---|---|
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 300 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100 Mbit/s |
Interfaces 5
| number of electrical connections: for network components or terminal equipment | 2 |
|---|---|
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | M12 interface (4-pole, D-coded), PoE |
| type of electrical connection: for power supply | M12 interface (4-pole, A-coded) |
Show all 162 specifications ↓ Show less ↑153 more values in Identification, Memory, Interfaces / wireless, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Maritime application Railway, Logistics.
Identification 10
| Part number | 6GK5778-1GY00-0TA0 |
|---|---|
| Type designation | W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622420881 |
| ETIM class | EC000816 |
| eCl@ss | 19170212 |
Memory 2
| design of the removable storage: C-PLUG | Yes |
|---|---|
| design of the removable storage: KEY-PLUG | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 1 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | N-Connect (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Supply voltage, current consumption, power loss 8
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage: from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current: at DC / at 24 V / typical | 0.25 A |
| consumed current: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.125 A |
| power loss [W]: at DC / at 24 V / typical | 6 W |
| power loss [W]: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 6 W |
| supply voltage / 1: from M12 Power Connector (A-coded) for redundant power supply | 16.8 V |
| supply voltage / 2: from M12 Power Connector (A-coded) for redundant power supply | 31.2 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +75 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| ambient condition / for operation | When used under hazardous conditions (Zone 2), the SCALANCE W778-1 M12 or W738-1 M12 product must be installed in an housing with at least IP54 degree of protection according to EN 60529 within the scope of EN 50021. |
| protection class IP | IP65 |
Design, dimensions and weights 12
| width | 140 mm |
|---|---|
| height | 160 mm |
| depth | 45 mm |
| width / of the enclosure / without antenna | 140 mm |
| height / of the enclosure / without antenna | 149 mm |
| depth / of the enclosure / without antenna | 45 mm |
| product feature / conformal coating | Yes |
| fastening method | 35 mm DIN rail mounting only per accessories |
| S7-300 rail mounting | No |
| S7-1500 rail mounting | No |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 11
| product function / Access Point Mode | Yes |
|---|---|
| product function / client Mode | Yes |
| number of SSIDs | 4 |
| product function: iPCF Access Point | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' |
| product function: iPCF client | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| product function: iPCF-MC Access Point | No |
| product function: iPCF-MC client | Yes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| number of iPCF-capable radio modules | 1 |
| product function / iREF | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| number of iREF-capable radio modules | 1 |
| product function / iPRP | Yes; In combination with the 'KEY-PLUG W780 iFeatures' only |
Product functions / management, configuration, engineering 23
| number of manageable IP addresses / in client | 8 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: operation with IWLAN controller | No |
| product function: operation with Enterasys WLAN controller | No |
| product function: forced roaming on IP down with IWLAN | Yes |
| product function: forced roaming on link down with IWLAN | Yes |
| product function: WDS | Yes |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 8
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: link check | No |
| product function: connection monitoring IP-Alive | No |
| product function: localization via Aeroscout | Yes |
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 1
| product function: function VLAN with IWLAN | Yes |
|---|
Product functions / DHCP 3
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server | Yes |
| product function: DHCP Option 82 | Yes |
Product functions / redundancy 3
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
Product functions / security 9
| product function: ACL - MAC-based | Yes |
|---|---|
| product function: management security, ACL-IP based | Yes |
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: TKIP/AES | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: RADIUS | Yes |
Product functions / time 3
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 21
| standard: for FM | FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X |
|---|---|
| standard: for safety / from CSA and UL | UL 61010-2-201 E85972, CSA C22.2 no. 60950-1 |
| certificate of suitability: EC Declaration of Conformity | Yes |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: C-Tick | Yes |
| certificate of suitability: E1 approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | Yes |
| certificate of suitability: fire protection in accordance with EN 45545-2 | Yes |
| certificate of suitability: NEMA TS2 | No |
| certificate of suitability: IEC 61375 | No |
| certificate of suitability: IEC 61850-3 | No |
| certificate of suitability: NEMA4X | No |
| certificate of suitability: Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| certificate of suitability: Power-over-Ethernet according to IEEE802.3at for type 2 | Yes |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
Standards, specifications, approvals / marine classification 8
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: DNV GL | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / hazardous environments 4
| standard / for hazardous zone | EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
|---|---|
| from CSA and UL | ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480 |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| as marking | Ex nA IIC T4 Gc |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 199.95 kg |
| global warming potential [CO2 eq]: during manufacturing | 33.7 kg |
| global warming potential [CO2 eq]: during operation | 166.06 kg |
| global warming potential [CO2 eq]: after end of life | 0.19 kg |
Maritime application Railway 1
| NK / Nippon Kaiji Ky- Confirmation | okai |
|---|
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 1 × 1 × 1 mm |
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5778-1GY00-0TA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EC Declaration of Conformity
- CE marking
- C-Tick
- E1 approval
- railway application in accordance with EN 50155
- railway application in accordance with EN 50121-4
- fire protection in accordance with EN 45545-2
- Power-over-Ethernet according to IEEE802
Quick answers
Questions about the W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel
What is the HS code of W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel for customs?
The tariff (HS) code on file for W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel is 85176200.
What is the EAN of W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel?
The EAN (GTIN) of W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel is 4047622420881.
Where does W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel ship from, and how fast?
W778-1 M12 EEC IWLAN access point, SCALANCE W778-1 M12 EEC, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30...+75 °C, plug slot WPA2/802.11i/e,conformal coating EN 50155, EN45545, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English, M12 sealing caps, for operation outside of USA/Israel ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE W
- Brand
- Siemens
- Series
- SCALANCE W
