- Part number
- 6GK5778-1GY00-0AA0
- Model no
- W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
Siemens has announced the end of 6GK5778-1GY00-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

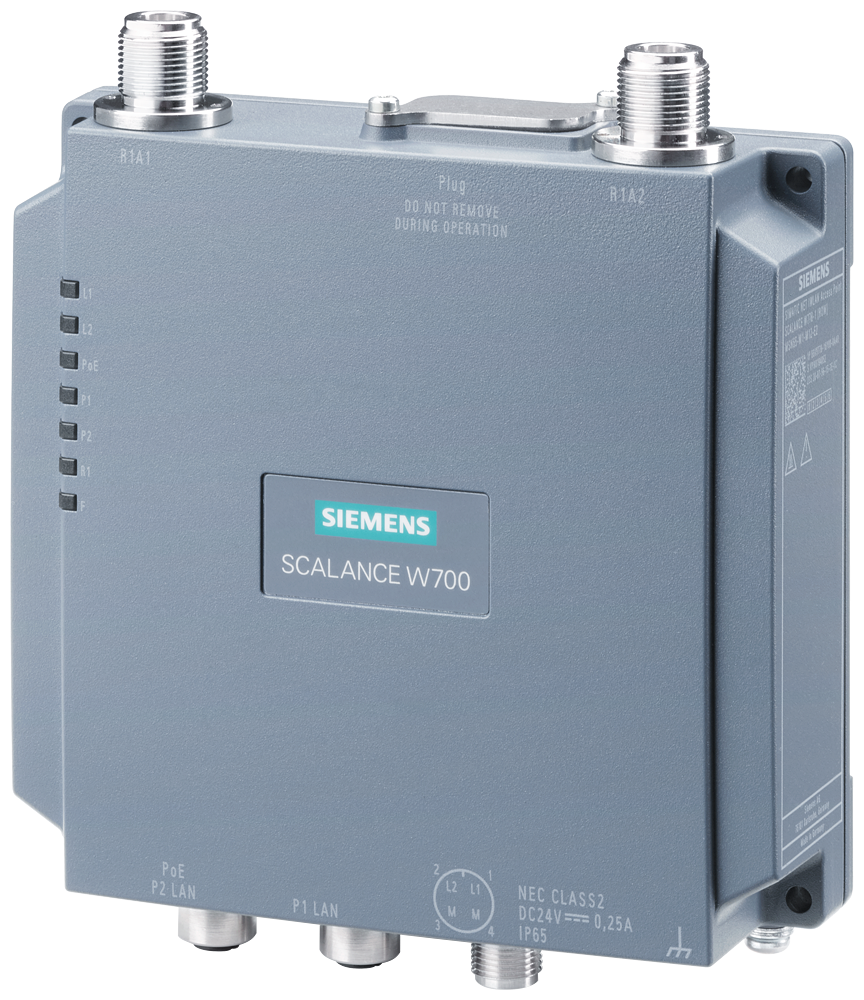

Siemens 6GK5778-1GY00-0AA0 SCALANCE W778-1 M12 802.11n 300 Mbit/s IP65 Industrial WLAN Access Point
SCALANCE W778-1 M12 IWLAN access point, 802.11n, 300 Mbit/s, M12 PoE, IP65, FM Class I Div 2 approved.
Description
About the W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
About the W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
The Siemens 6GK5778-1GY00-0AA0 SCALANCE W778-1 M12 is an IWLAN access point with a single 802.11n radio at up to 300 Mbit/s gross, two N-Connect ports for external antennas, and two M12 D-coded 100 Mbit/s Ethernet ports on an integrated PoE switch. It runs from 16.8-31.2 V DC or Power-over-Ethernet, carries an IP65 enclosure for -20 to +60 degrees C, and adds FM Class I Division 2 hazardous-location approval.
Certifications & Standards
- EC
- CE
- C-Tick
- E1
- Power-over-Ethernet
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
Selection Notes
N-Connect antenna ports instead of R-SMA give this M12 variant a more rugged, higher-torque connection for antennas mounted outside a control cabinet, which matters on units that see repeated antenna disconnection during maintenance. IP65 removes the enclosure requirement the RJ45 and M12 W774 models carry, so it can sit directly in the field once cable glands are M12-rated. FM 3611 Class I Division 2 and the UL 61010-2-201 listing carry over from the W774 family, keeping hazardous-area suitability the same across the SCALANCE W7x8 line. Choose the EEC variant instead when the site sees temperatures above +60 degrees C or requires railway EN 50155 approval.
Specification
Full specification
General 2
| product type designation | W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. |
|---|---|
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 300 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100 Mbit/s |
Interfaces 5
| number of electrical connections: for network components or terminal equipment | 2 |
|---|---|
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | M12 interface (4-pole, D-coded), PoE |
| type of electrical connection: for power supply | M12 interface (4-pole, A-coded) |
Show all 160 specifications ↓ Show less ↑151 more values in Identification, Memory, Interfaces / wireless, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Maritime application Railway, Logistics.
Identification 10
| Part number | 6GK5778-1GY00-0AA0 |
|---|---|
| Type designation | W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622420843 |
| ETIM class | EC000816 |
| eCl@ss | 19170212 |
Memory 2
| design of the removable storage: C-PLUG | Yes |
|---|---|
| design of the removable storage: KEY-PLUG | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 1 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | N-Connect (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Supply voltage, current consumption, power loss 8
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage: from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current: at DC / at 24 V / typical | 0.25 A |
| consumed current: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.125 A |
| power loss [W]: at DC / at 24 V / typical | 6 W |
| power loss [W]: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 6 W |
| supply voltage / 1: from M12 Power Connector (A-coded) for redundant power supply | 16.8 V |
| supply voltage / 2: from M12 Power Connector (A-coded) for redundant power supply | 31.2 V |
Ambient conditions 6
| ambient temperature: during operation | -20 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| ambient condition / for operation | When used under hazardous conditions (Zone 2), the SCALANCE W778-1 M12 or W738-1 M12 product must be installed in an housing with at least IP54 degree of protection according to EN 60529 within the scope of EN 50021. |
| protection class IP | IP65 |
Design, dimensions and weights 11
| width | 140 mm |
|---|---|
| height | 160 mm |
| depth | 45 mm |
| width / of the enclosure / without antenna | 140 mm |
| height / of the enclosure / without antenna | 149 mm |
| depth / of the enclosure / without antenna | 45 mm |
| fastening method | 35 mm DIN rail mounting only per accessories |
| S7-300 rail mounting | No |
| S7-1500 rail mounting | No |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 11
| product function / Access Point Mode | Yes |
|---|---|
| product function / client Mode | Yes |
| number of SSIDs | 4 |
| product function: iPCF Access Point | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' |
| product function: iPCF client | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| product function: iPCF-MC Access Point | No |
| product function: iPCF-MC client | Yes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| number of iPCF-capable radio modules | 1 |
| product function / iREF | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| number of iREF-capable radio modules | 1 |
| product function / iPRP | Yes; In combination with the 'KEY-PLUG W780 iFeatures' only |
Product functions / management, configuration, engineering 23
| number of manageable IP addresses / in client | 8 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: operation with IWLAN controller | No |
| product function: operation with Enterasys WLAN controller | No |
| product function: forced roaming on IP down with IWLAN | Yes |
| product function: forced roaming on link down with IWLAN | Yes |
| product function: WDS | Yes |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 8
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: link check | No |
| product function: connection monitoring IP-Alive | No |
| product function: localization via Aeroscout | Yes |
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 1
| product function: function VLAN with IWLAN | Yes |
|---|
Product functions / DHCP 3
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server | Yes |
| product function: DHCP Option 82 | Yes |
Product functions / redundancy 3
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
Product functions / security 9
| product function: ACL - MAC-based | Yes |
|---|---|
| product function: management security, ACL-IP based | Yes |
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: TKIP/AES | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: RADIUS | Yes |
Product functions / time 23
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
| standards, specifications, approvals standard: for FM | FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X |
| standards, specifications, approvals standard: for safety / from CSA and UL | UL 61010-2-201 E85972, C22.2 no. 60950-1 |
| certificate of suitability: EC Declaration of Conformity | Yes |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: C-Tick | Yes |
| certificate of suitability: E1 approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| certificate of suitability: NEMA TS2 | No |
| certificate of suitability: IEC 61375 | No |
| certificate of suitability: IEC 61850-3 | No |
| certificate of suitability: NEMA4X | No |
| certificate of suitability: Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| certificate of suitability: Power-over-Ethernet according to IEEE802.3at for type 2 | Yes |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
Standards, specifications, approvals / marine classification 8
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: DNV GL | Yes |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / hazardous environments 4
| standard / for hazardous zone | EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
|---|---|
| from CSA and UL | ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480 |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| as marking | Ex nA IIC T4 Gc |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 199.95 kg |
| global warming potential [CO2 eq]: during manufacturing | 33.7 kg |
| global warming potential [CO2 eq]: during operation | 166.06 kg |
| global warming potential [CO2 eq]: after end of life | 0.19 kg |
Maritime application Railway 1
| NK / Nippon Kaiji Ky- Confirmation | okai |
|---|
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 150 × 180 × 45 mm |
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5778-1GY00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EC Declaration of Conformity
- CE marking
- C-Tick
- E1 approval
- Power-over-Ethernet according to IEEE802.3at for type 2
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
Quick answers
Questions about the W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
What is the HS code of W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. for customs?
The tariff (HS) code on file for W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 85176200.
What is the EAN of W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..?
The EAN (GTIN) of W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 4047622420843.
Where does W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. ship from, and how fast?
W778-1 M12 IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -30... 75 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE W
- Brand
- Siemens
- Series
- SCALANCE W
