- Part number
- 6GK5766-1GE00-7DA0
- Model no
- WAM766-1

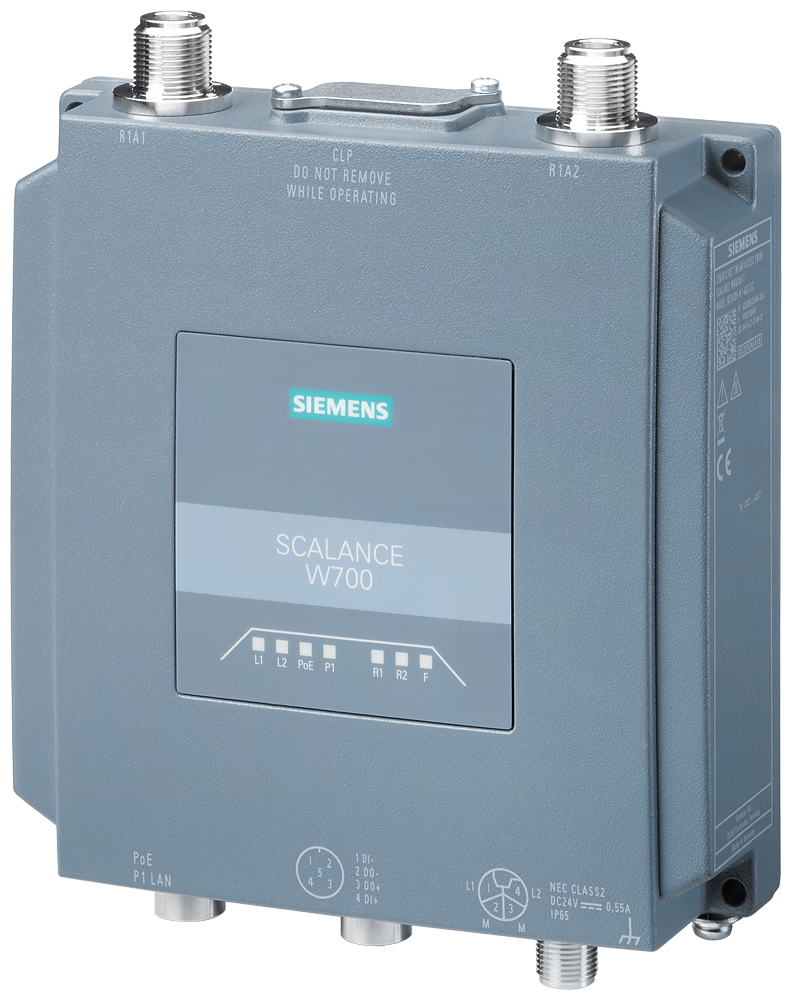

Siemens 6GK5766-1GE00-7DA0 SCALANCE WAM766-1 Wi-Fi 6 1201 Mbit/s 8 SSID Industrial WLAN Access Point
SCALANCE WAM766-1 IWLAN access point, Wi-Fi 6, 1201 Mbit/s, 8 SSIDs, PoE M12 Gigabit Ethernet, IP65.
Description
About the WAM766-1
About the WAM766-1
The Siemens 6GK5766-1GE00-7DA0 SCALANCE WAM766-1 is an IWLAN access point with two permanently installed 2.4/5 GHz radios supporting IEEE 802.11ax (Wi-Fi 6) at up to 1201 Mbit/s gross per radio in 2x2 MIMO. It broadcasts up to eight SSIDs, connects through a PoE-capable M12 Gigabit Ethernet port, and takes redundant 24 V DC via an M12 L-coded connector, with an IP65 enclosure rated -30 to +60 degrees C.
Certifications & Standards
- EC
- CE
- E1
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
- IEEE 802.11n
Selection Notes
Eight SSIDs let this access point separate production, guest, and diagnostic WLANs on one radio pair instead of deploying multiple units. Access Point mode and client mode both run on the same hardware, so the unit can be reconfigured for either role during commissioning without a hardware change. The M12 Gigabit port carries both PoE and a dedicated redundant 24 V DC input, so wiring stays the same whether the switch upstream supplies power or a local 24 V rail does. Pick the extended-temperature EEC variant instead when the installation sees temperatures above +60 degrees C or vibration beyond a standard enclosure.
Specification
Full specification
General 3
| product type designation | WAM766-1 |
|---|---|
| product description | IWLAN Access Point IWLAN access point, SCALANCE WAM766-1, 1 radio, 2.4/5 GHz, IEEE 802.11ax (Wi-Fi 6), 2 N-Connect connections, iFeatures support via CLP, 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded with PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, FCC ID: LYHMSAX65V1 operation outside of USA/Israel scope of supply: sealing caps for connections |
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 1201 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100, 1000 Mbit/s |
Interfaces 7
| number of electrical/optical connections / for network components or terminal equipment / maximum / note | 1 |
|---|---|
| number of electrical/optical connections / for gigabit Ethernet / maximum | 1 |
| number of electrical connections: for network components or terminal equipment | 1 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | M12 interface (8-pole, X-coded), PoE |
| type of electrical connection: for redundant voltage supply | M12 interface (4-pin, L-coded) |
Show all 154 specifications ↓ Show less ↑142 more values in Identification, Memory, Interfaces / wireless, Signal inputs/outputs, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5766-1GE00-7DA0 |
|---|---|
| Type designation | WAM766-1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622889923 |
| ETIM class | EC000816 |
| eCl@ss | 19170212 |
Memory 2
| design of the removable storage: CLP | Yes |
|---|---|
| design of the removable storage: CLP iFeatures | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 2 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | N-Connect (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Signal inputs/outputs 22
| number of digital inputs | 1 |
|---|---|
| number of digital outputs | 1 |
| type of electrical connection / at the digital inputs/outputs | M12 interface (4-pin, A-coded) |
| input voltage / at digital input / at DC | -30 ... +30 V |
| output voltage / at digital output / at DC / maximum | 24 V; 0,5 A |
| operational current / of the signaling contacts / at DC / at 30 V / maximum supply voltage, current consumption, power loss | 0.008 A |
| type of voltage / of the supply voltage | Redundant 24 V DC Power Supply, M12, L-coded |
| supply voltage: from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current: at DC / at 24 V | 0.55 A |
| consumed current: at DC / at 24 V / sleep mode / maximum | 0.013 A |
| consumed current: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.27 A |
| power loss [W]: at DC / at 24 V | 13.2 W |
| power loss [W]: at DC / at 24 V / sleep mode / maximum | 0.3 W |
| power loss [W]: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 12.96 W |
| supply voltage / 1: from M12 power Connector (L-coded) for redundant voltage supply | 24 V |
| supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 2: from M12 power Connector (L-coded) for redundant voltage supply | 24 V |
| supply voltage / 2 / rated value | 24 V |
| type of voltage / 2 / of the supply voltage | DC |
| supply voltage / 3 / rated value | 48 V |
| type of voltage / 3 / of the supply voltage | DC, PoE |
Ambient conditions 5
| ambient temperature: during operation | -30 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| protection class IP | IP65 |
Design, dimensions and weights 12
| width | 150 mm |
|---|---|
| height | 179.5 mm |
| depth | 45 mm |
| width / of the enclosure / without antenna | 150 mm |
| height / of the enclosure / without antenna | 179.5 mm |
| depth / of the enclosure / without antenna | 45 mm |
| fastening method | wall mounting and assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter. |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
| VESA mounting | Yes; 75 x 75mm |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 9
| product function / Access Point Mode | Yes |
|---|---|
| product function / client Mode | Yes |
| number of SSIDs | 8 |
| product function: iPCF Access Point | No; iPCF-2 is not compatible with iPCF. See documentation for function description. |
| product function: iPCF-2 access point | Yes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF client | No |
| product function: iPCF-2 client | Yes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF-MC Access Point | No |
| product function / iPRP | Yes |
Product functions / management, configuration, engineering 19
| number of manageable IP addresses / in client | 2 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: WDS | No |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 5
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 2
| product function: function VLAN with IWLAN | Yes |
|---|---|
| number of VLANs / maximum | 24 |
Product functions / DHCP 1
| product function: DHCP client | Yes |
|---|
Product functions / redundancy 4
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
Product functions / security 10
| product function: management security, ACL-IP based | No |
|---|---|
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: WPA3 | Yes |
| product function: TKIP/AES | Yes |
| product function: RADIUS client | Yes |
| protocol / is supported: SSH | Yes |
| key length: with SSL | 4096 bit |
Product functions / time 3
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 16
| certificate of suitability: EC Declaration of Conformity | Yes |
|---|---|
| certificate of suitability: CE marking | Yes |
| certificate of suitability: E1 approval | Yes |
| certificate of suitability: Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
| standard for wireless communication: IEEE 802.11ac | Yes |
| standard for wireless communication: IEEE 802.11ax | Yes |
| standard for wireless communication: IEEE 802.11r | Yes |
| MTBF | 24 a |
| reference temperature | 40 °C |
Standards, specifications, approvals / hazardous environments 2
| standard / for hazardous zone | EN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc |
|---|---|
| from CSA and UL | UL121201, CAN/CSA C22.2 No.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 395.329 kg |
| global warming potential [CO2 eq]: during manufacturing | 33.7 kg |
| global warming potential [CO2 eq]: during operation | 361 kg |
| global warming potential [CO2 eq]: after end of life | 0.191 kg |
Logistics 7
| Net weight | 0.5 kg |
|---|---|
| Package dimensions | 127 × 26 × 156 mm |
| Country of origin | DE |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
