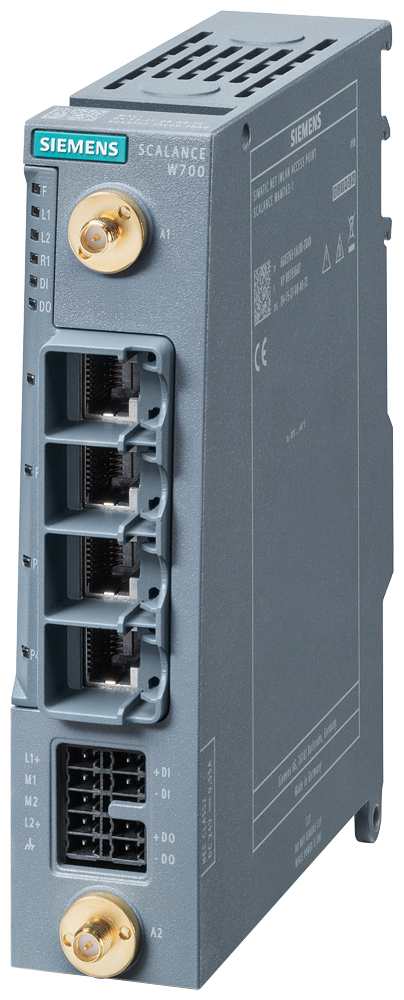

Siemens 6GK5763-1AL00-7DA0 SCALANCE WAM763-1 Wi-Fi 6 1201 Mbps 8-SSID Industrial WLAN Access Point
SCALANCE WAM763-1 Wi-Fi 6 access point, 1201 Mbps, 4x Gigabit RJ45, 8 SSIDs, redundant 24V DC, IP30.
Description
About the WAM763-1
About the WAM763-1
The Siemens SCALANCE WAM763-1 (6GK5763-1AL00-7DA0) is a Wi-Fi 6 (IEEE 802.11ax) IWLAN access point delivering up to 1201 Mbps gross data rate over two 2x2 MIMO radios, with 8 SSIDs for network segmentation. It has four Gigabit RJ45 ports, an integrated digital input and output, a CLP slot for iFeatures, and redundant 24V DC supply in an IP30 enclosure rated -30 to +60 degC.
Certifications & Standards
- EC
- CE
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
- IEEE 802.11n
- IEEE 802.11ac
Selection Notes
The WAM763-1 runs in Access Point Mode with 8 SSIDs, against the WUM763-1's single-SSID client mode on otherwise identical radio, port and enclosure hardware - pick it as the infrastructure side of a Wi-Fi 6 cell that needs to serve several logically separated networks (for example production, guest, and diagnostic VLANs) from one radio. Like the WUM763-1, it carries an integrated DI/DO for a local status or interlock signal. For a lower-cost, lower-throughput access point where 150 Mbps and a single SSID are enough, the older W761-1 RJ45 remains the simpler option.
Applications
The WAM763-1 covers a work cell or line section with Wi-Fi 6 clients (SCALANCE WUM763-1 or compatible devices) while splitting production, diagnostic and guest traffic across its 8 SSIDs on the same access point.
Specification
Full specification
General 3
| product type designation | WAM763-1 |
|---|---|
| product description | IWLAN Access Point IWLAN access point, SCALANCE WAM763-1, 1 radio, 2.4/5 GHz, IEEE 802.11ax (Wi-Fi 6), 2 R-SMA connections, iFeatures support via CLP, 1201 Mbps (gross), 4x10/100/1000 Mbps RJ45 ports, redundant 24 V DC, terminal block, IP30, - 30..+60 °C, CLP slot, DI/DO, terminal block, observe national approvals! CERT ID: MSAX-W1-RJ-E2 FCC ID: LYHMSAXV1 operation outside of USA/Israel scope of supply: cover CLP slot, covers antenna connections, 3x terminal block. |
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 1201 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100, 1000 Mbit/s |
Interfaces 7
| number of electrical/optical connections / for network components or terminal equipment / maximum / note | 4 |
|---|---|
| number of electrical/optical connections / for gigabit Ethernet / maximum | 4 |
| number of electrical connections: for network components or terminal equipment | 4 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | RJ45 socket |
| type of electrical connection: for power supply | 5-pole terminal block |
Show all 146 specifications ↓ Show less ↑134 more values in Identification, Memory, Interfaces / wireless, Signal inputs/outputs, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5763-1AL00-7DA0 |
|---|---|
| Type designation | WAM763-1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622944745 |
| ETIM class | EC000816 |
| eCl@ss | 19170212 |
Memory 2
| design of the removable storage: CLP | Yes |
|---|---|
| design of the removable storage: CLP iFeatures | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 2 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | R-SMA (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Signal inputs/outputs 17
| number of digital inputs | 1 |
|---|---|
| number of digital outputs | 1 |
| type of electrical connection / at the digital inputs/outputs | 2-pole terminal block in each case |
| input voltage / at digital input / at DC | -30 ... +30 V |
| output voltage / at digital output / at DC / maximum | 24 V; 0,5 A |
| operational current / of the signaling contacts / at DC / at 30 V / maximum supply voltage, current consumption, power loss | 0.008 A |
| type of voltage / of the supply voltage | redundant power supply, 24 V DC, 5-pole terminal block |
| consumed current: at DC / at 24 V | 0.55 A |
| consumed current: at DC / at 24 V / typical | 0.33 A |
| consumed current: at DC / at 24 V / sleep mode / maximum | 0.013 A |
| power loss [W]: at DC / at 24 V | 13.2 W |
| power loss [W]: at DC / at 24 V / typical | 8 W |
| power loss [W]: at DC / at 24 V / sleep mode / maximum | 0.3 W |
| supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 2 / rated value | 24 V |
| type of voltage / 2 / of the supply voltage | DC |
Ambient conditions 5
| ambient temperature: during operation | -30 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| protection class IP | IP30 |
Design, dimensions and weights 11
| width | 35 mm |
|---|---|
| height | 157 mm |
| depth | 137 mm |
| width / of the enclosure / without antenna | 35 mm |
| height / of the enclosure / without antenna | 152.5 mm |
| depth / of the enclosure / without antenna | 137 mm |
| fastening method | wall mounting, DIN rail, mounting rail S7-300, mounting rail S7-1500, with adapter: 90° installation on DIN rail |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 9
| product function / Access Point Mode | Yes |
|---|---|
| product function / client Mode | Yes |
| number of SSIDs | 8 |
| product function: iPCF Access Point | No; iPCF-2 is not compatible with iPCF. See documentation for function description. |
| product function: iPCF-2 access point | Yes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF client | No |
| product function: iPCF-2 client | Yes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF-MC Access Point | No |
| product function / iPRP | Yes |
Product functions / management, configuration, engineering 19
| number of manageable IP addresses / in client | 2 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: WDS | No |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 5
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 2
| product function: function VLAN with IWLAN | Yes |
|---|---|
| number of VLANs / maximum | 24 |
Product functions / DHCP 1
| product function: DHCP client | Yes |
|---|
Product functions / redundancy 4
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
Product functions / security 10
| product function: management security, ACL-IP based | No |
|---|---|
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: WPA3 | Yes |
| product function: TKIP/AES | Yes |
| product function: RADIUS client | Yes |
| protocol / is supported: SSH | Yes |
| key length: with SSL | 4096 bit |
Product functions / time 3
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 14
| certificate of suitability: EC Declaration of Conformity | Yes |
|---|---|
| certificate of suitability: CE marking | Yes |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
| standard for wireless communication: IEEE 802.11ac | Yes |
| standard for wireless communication: IEEE 802.11ax | Yes |
| standard for wireless communication: IEEE 802.11r | Yes |
| MTBF | 26 a |
| reference temperature | 40 °C |
Standards, specifications, approvals / hazardous environments 2
| standard / for hazardous zone | EN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc |
|---|---|
| from CSA and UL | UL121201, CAN/CSA C22.2 No.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 390.86 kg |
| global warming potential [CO2 eq]: during manufacturing | 29.7 kg |
| global warming potential [CO2 eq]: during operation | 361 kg |
| global warming potential [CO2 eq]: after end of life | 0.16 kg |
Logistics 7
| Net weight | 0.5 kg |
|---|---|
| Package dimensions | 45 × 150 × 180 mm |
| Country of origin | DE |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
