- Part number
- 6GK5763-1AL00-3DA0
- Model no
- WUM763-1

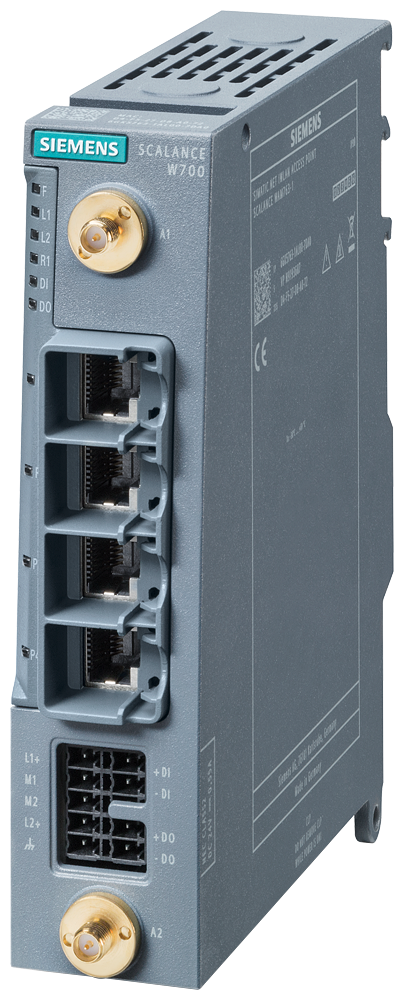

Siemens 6GK5763-1AL00-3DA0 SCALANCE WUM763-1 Wi-Fi 6 IWLAN Client DI/DO Industrial WLAN Access Point
SCALANCE WUM763-1 IWLAN client with DI/DO, Wi-Fi 6, 1201 Mbps, 4x Gigabit RJ45, redundant 24V DC, IP30.
Description
About the WUM763-1
About the WUM763-1
The Siemens SCALANCE WUM763-1 (6GK5763-1AL00-3DA0) is a Wi-Fi 6 (IEEE 802.11ax) IWLAN client module with an integrated digital input and output for machine signal integration, delivering up to 1201 Mbps gross data rate over two 2x2 MIMO radios. It has four Gigabit RJ45 ports, a CLP slot for iFeatures, and redundant 24V DC supply in an IP30 enclosure rated -30 to +60 degC.
Certifications & Standards
- EC
- CE
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
- IEEE 802.11n
- IEEE 802.11ac
Selection Notes
The WUM763-1's integrated 1x digital input and 1x digital output (24V DC, 0.5A) let a machine signal - a door interlock or a status lamp - travel over the same wireless link as PROFINET traffic, which the plain client variants in the W72x/W73x range do not offer. Wi-Fi 6 (802.11ax) and 2x2 MIMO push the gross data rate to 1201 Mbps and four Gigabit RJ45 ports replace the single 100 Mbit/s port on the older W721-1/W722-1 clients. Pick the WAM763-1 instead when the device needs to operate as the access point side of the Wi-Fi 6 cell rather than the client side - the two share identical radio and port hardware.
Applications
The WUM763-1 fits a mobile machine or AGV that needs both a high-throughput Wi-Fi 6 PROFINET link and a hardwired DI/DO for a safety interlock or status signal, without routing a separate cable back to the control cabinet.
Specification
Full specification
General 3
| product type designation | WUM763-1 |
|---|---|
| product description | IWLAN client module with DI/DO IWLAN client, with DI/DO SCALANCE WUM763-1, 1 radio, 2.4/5 GHz, 2 R-SMA connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross), 4x10/100/1000 Mbps RJ45 ports, redundant 24 V DC, terminal block, IP30, -30..+60 °C, CLP slot, DI/DO, terminal block observe national approvals! CERT ID: MSAX-W1-RJ-E2 FCC ID: LYHMSAXV1 operation outside of USA/Israel scope of supply: cover CLP slot, covers antenna connections, 3x terminal block. |
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 1201 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100, 1000 Mbit/s |
Interfaces 7
| number of electrical/optical connections / for network components or terminal equipment / maximum / note | 4 |
|---|---|
| number of electrical/optical connections / for gigabit Ethernet / maximum | 4 |
| number of electrical connections: for network components or terminal equipment | 4 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | RJ45 socket |
| type of electrical connection: for power supply | 5-pole terminal block |
Show all 146 specifications ↓ Show less ↑134 more values in Identification, Memory, Interfaces / wireless, Signal inputs/outputs, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5763-1AL00-3DA0 |
|---|---|
| Type designation | WUM763-1 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622944738 |
| ETIM class | EC000816 |
| eCl@ss | 19170209 |
Memory 2
| design of the removable storage: CLP | Yes |
|---|---|
| design of the removable storage: CLP iFeatures | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 2 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | R-SMA (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Signal inputs/outputs 17
| number of digital inputs | 1 |
|---|---|
| number of digital outputs | 1 |
| type of electrical connection / at the digital inputs/outputs | 2-pole terminal block in each case |
| input voltage / at digital input / at DC | -30 ... +30 V |
| output voltage / at digital output / at DC / maximum | 24 V; 0,5 A |
| operational current / of the signaling contacts / at DC / at 30 V / maximum supply voltage, current consumption, power loss | 0.008 A |
| type of voltage / of the supply voltage | redundant power supply, 24 V DC, 5-pole terminal block |
| consumed current: at DC / at 24 V | 0.55 A |
| consumed current: at DC / at 24 V / typical | 0.33 A |
| consumed current: at DC / at 24 V / sleep mode / maximum | 0.013 A |
| power loss [W]: at DC / at 24 V | 13.2 W |
| power loss [W]: at DC / at 24 V / typical | 8 W |
| power loss [W]: at DC / at 24 V / sleep mode / maximum | 0.3 W |
| supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 2 / rated value | 24 V |
| type of voltage / 2 / of the supply voltage | DC |
Ambient conditions 5
| ambient temperature: during operation | -30 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 90 % |
| protection class IP | IP30 |
Design, dimensions and weights 11
| width | 35 mm |
|---|---|
| height | 157 mm |
| depth | 137 mm |
| width / of the enclosure / without antenna | 35 mm |
| height / of the enclosure / without antenna | 152.5 mm |
| depth / of the enclosure / without antenna | 137 mm |
| fastening method | wall mounting, DIN rail, mounting rail S7-300, mounting rail S7-1500, with adapter: 90° installation on DIN rail |
| S7-300 rail mounting | Yes |
| S7-1500 rail mounting | Yes |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 9
| product function / Access Point Mode | No |
|---|---|
| product function / client Mode | Yes |
| number of SSIDs | 1 |
| product function: iPCF Access Point | No; iPCF-2 is not compatible with iPCF. See documentation for function description. |
| product function: iPCF-2 access point | No; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF client | No |
| product function: iPCF-2 client | Yes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures' |
| product function: iPCF-MC Access Point | No |
| product function / iPRP | Yes |
Product functions / management, configuration, engineering 19
| number of manageable IP addresses / in client | 2 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: WDS | No |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 5
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 2
| product function: function VLAN with IWLAN | Yes |
|---|---|
| number of VLANs / maximum | 24 |
Product functions / DHCP 1
| product function: DHCP client | Yes |
|---|
Product functions / redundancy 4
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
Product functions / security 10
| product function: management security, ACL-IP based | No |
|---|---|
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: WPA3 | Yes |
| product function: TKIP/AES | Yes |
| product function: RADIUS client | Yes |
| protocol / is supported: SSH | Yes |
| key length: with SSL | 4096 bit |
Product functions / time 3
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 14
| certificate of suitability: EC Declaration of Conformity | Yes |
|---|---|
| certificate of suitability: CE marking | Yes |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
| standard for wireless communication: IEEE 802.11ac | Yes |
| standard for wireless communication: IEEE 802.11ax | Yes |
| standard for wireless communication: IEEE 802.11r | Yes |
| MTBF | 26 a |
| reference temperature | 40 °C |
Standards, specifications, approvals / hazardous environments 2
| standard / for hazardous zone | EN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc |
|---|---|
| from CSA and UL | UL121201, CAN/CSA C22.2 No.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 391.129 kg |
| global warming potential [CO2 eq]: during manufacturing | 29.7 kg |
| global warming potential [CO2 eq]: during operation | 361 kg |
| global warming potential [CO2 eq]: after end of life | 0.156 kg |
Logistics 7
| Net weight | 0.5 kg |
|---|---|
| Package dimensions | 45 × 150 × 180 mm |
| Country of origin | DE |
| Shipping weight | 1.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5763-1AL00-3DA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EC Declaration of Conformity
- CE marking
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
- IEEE 802.11n
- IEEE 802.11ac
Quick answers
Questions about the WUM763-1
What is the HS code of WUM763-1 for customs?
The tariff (HS) code on file for WUM763-1 is 85176200.
What is the EAN of WUM763-1?
The EAN (GTIN) of WUM763-1 is 4047622944738.
Where does WUM763-1 ship from, and how fast?
WUM763-1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
