- Part number
- 6GK5738-1GY00-0AA0
- Model no
- W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Siemens has announced the end of 6GK5738-1GY00-0AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

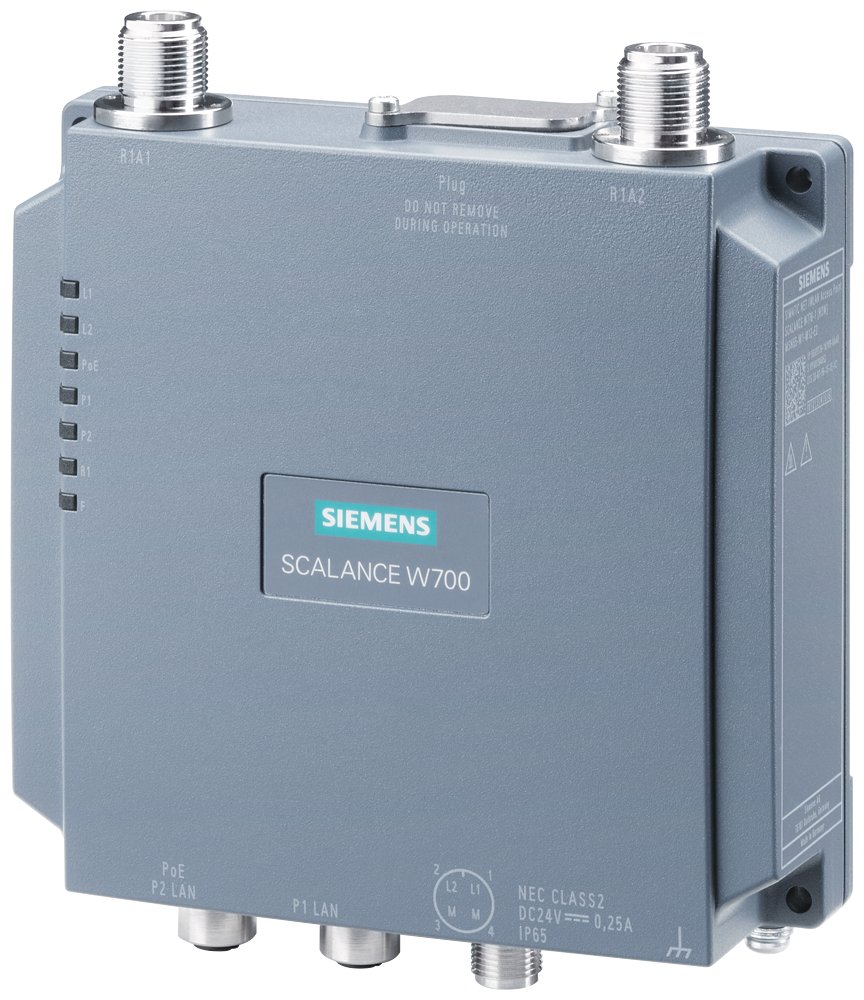

Siemens 6GK5738-1GY00-0AA0 SCALANCE W738-1 M12 300 Mbit/s IWLAN Client Access Point
SCALANCE W738-1 M12 IWLAN client/AP, 802.11a/b/g/h/n, 300 Mbit/s, PoE, IP65.
Description
About the W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
About the W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
The Siemens SCALANCE W738-1 M12 (6GK5738-1GY00-0AA0) is an IWLAN client and access point device with one radio card, 2x2 MIMO, and IEEE 802.11a/b/g/h/n support at up to 300 Mbit/s gross data rate over 2.4/5 GHz. It has 2x M12 D-coded Ethernet ports with PoE, 2x N-Connect external antenna ports, redundant M12 24 V DC power, and an IP65 enclosure rated -20 to +60C.
Certifications & Standards
- EC
- CE
- C-Tick
- E1
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
Selection Notes
The two N-Connect external antenna ports and the KEY-PLUG slot let the W738-1 M12 be upgraded to iPCF or iPRP fast-roaming features for mobile applications without swapping hardware - useful on AGVs or monorail systems where the KEY-PLUG for those features is added later. Its IP65 M12 connector set and -20 to +60C rating suit it for mounting directly on moving machine sections rather than inside a control cabinet, unlike RJ45-based SCALANCE W units. Two independent 24 V DC M12 power inputs (16.8-31.2 V range) allow a redundant supply without an external switch, in addition to PoE.
Applications
Used as a wireless client or access point on mobile machine sections - AGVs, cranes, conveyor sections - where an IP-rated enclosure and M12 connectors are needed instead of a cabinet-mounted RJ45 access point.
Specification
Full specification
General 2
| product type designation | W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. |
|---|---|
| product brand name | SCALANCE |
Transfer rate 2
| transfer rate: with WLAN / maximum | 300 Mbit/s |
|---|---|
| transfer rate: for Industrial Ethernet | 10, 100 Mbit/s |
Interfaces 5
| number of electrical connections: for network components or terminal equipment | 2 |
|---|---|
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for network components or terminal equipment | M12 interface (4-pole, D-coded), PoE |
| type of electrical connection: for power supply | M12 interface (4-pole, A-coded) |
Show all 152 specifications ↓ Show less ↑143 more values in Identification, Memory, Interfaces / wireless, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Radio frequencies, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Logistics.
Identification 10
| Part number | 6GK5738-1GY00-0AA0 |
|---|---|
| Type designation | W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622420867 |
| ETIM class | EC000816 |
| eCl@ss | 19170209 |
Memory 2
| design of the removable storage: C-PLUG | Yes |
|---|---|
| design of the removable storage: KEY-PLUG | Yes |
Interfaces / wireless 6
| number of radio cards / permanently installed | 1 |
|---|---|
| transmission mode / for multiple input multiple output (MIMO) | 2x2 |
| number of spatial streams | 2 |
| number of electrical connections / for external antenna(s) | 2 |
| type of electrical connection / for external antenna(s) | N-Connect (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
Supply voltage, current consumption, power loss 8
| type of voltage / of the supply voltage | DC |
|---|---|
| supply voltage: from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current: at DC / at 24 V / typical | 0.25 A |
| consumed current: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.125 A |
| power loss [W]: at DC / at 24 V / typical | 6 W |
| power loss [W]: with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 6 W |
| supply voltage / 1: from M12 Power Connector (A-coded) for redundant power supply | 16.8 V |
| supply voltage / 2: from M12 Power Connector (A-coded) for redundant power supply | 31.2 V |
Ambient conditions 6
| ambient temperature: during operation | -20 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| ambient condition / for operation | When used under hazardous conditions (Zone 2), the SCALANCE W778-1 M12 or W738-1 M12 product must be installed in an housing with at least IP54 degree of protection according to EN 60529 within the scope of EN 50021. |
| protection class IP | IP65 |
Design, dimensions and weights 11
| width | 140 mm |
|---|---|
| height | 160 mm |
| depth | 45 mm |
| width / of the enclosure / without antenna | 140 mm |
| height / of the enclosure / without antenna | 149 mm |
| depth / of the enclosure / without antenna | 45 mm |
| fastening method | 35 mm DIN rail mounting only per accessories |
| S7-300 rail mounting | No |
| S7-1500 rail mounting | No |
| 35 mm DIN-rail mounting | Yes |
| wall mounting | Yes |
Radio frequencies 2
| operating frequency: for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
|---|---|
| operating frequency: for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
Product features, product functions, product components / general 7
| product function / Access Point Mode | No |
|---|---|
| product function / client Mode | Yes |
| product function: iPCF client | Yes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| product function: iPCF-MC client | Yes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures' |
| number of iPCF-capable radio modules | 1 |
| product function / iREF | No |
| product function / iPRP | Yes; In combination with the 'KEY-PLUG W780 iFeatures' only |
Product functions / management, configuration, engineering 21
| number of manageable IP addresses / in client | 8 |
|---|---|
| product function: CLI | Yes |
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: configuration with STEP 7 in the TIA Portal | Yes |
| product function: operation with IWLAN controller | No |
| product function: operation with Enterasys WLAN controller | No |
| product function: WDS | No |
| protocol / is supported: Address Resolution Protocol (ARP) | Yes |
| protocol / is supported: ICMP | Yes |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | No |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Product functions / diagnostics 7
| product function: PROFINET IO diagnosis | Yes |
|---|---|
| product function: link check | No |
| product function: connection monitoring IP-Alive | No |
| product function: SysLog | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
Product functions / VLAN 1
| product function: function VLAN with IWLAN | No |
|---|
Product functions / DHCP 3
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server | Yes |
| product function: DHCP Option 82 | Yes |
Product functions / redundancy 3
| protocol / is supported: STP/RSTP | Yes |
|---|---|
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP | Yes |
Product functions / security 9
| product function: ACL - MAC-based | Yes |
|---|---|
| product function: management security, ACL-IP based | Yes |
| product function: IEEE 802.1x (radius) | Yes |
| product function: NAT/NAPT | Yes |
| product function: access protection according to IEEE802.11i | Yes |
| product function: WPA/WPA2 | Yes |
| product function: TKIP/AES | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: RADIUS | Yes |
Product functions / time 3
| protocol / is supported: NTP | Yes |
|---|---|
| protocol / is supported: SNTP | Yes |
| protocol / is supported: SIMATIC time synchronization (SIMATIC Time) | Yes |
Standards, specifications, approvals 20
| standard: for FM | FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X |
|---|---|
| standard: for safety / from CSA and UL | UL 61010-2-201 E85972, CSA C22.2 no. 60950-1 |
| certificate of suitability: EC Declaration of Conformity | Yes |
| certificate of suitability: CE marking | Yes |
| certificate of suitability: C-Tick | Yes |
| certificate of suitability: E1 approval | Yes |
| certificate of suitability: railway application in accordance with EN 50155 | No |
| certificate of suitability: NEMA TS2 | No |
| certificate of suitability: IEC 61375 | No |
| certificate of suitability: IEC 61850-3 | No |
| certificate of suitability: NEMA4X | No |
| certificate of suitability: Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | No |
| certificate of suitability: Power-over-Ethernet according to IEEE802.3at for type 2 | No |
| standard for wireless communication: IEEE 802.11a | Yes |
| standard for wireless communication: IEEE 802.11b | Yes |
| standard for wireless communication: IEEE 802.11e | Yes |
| standard for wireless communication: IEEE 802.11g | Yes |
| standard for wireless communication: IEEE 802.11h | Yes |
| standard for wireless communication: IEEE 802.11i | Yes |
| standard for wireless communication: IEEE 802.11n | Yes |
Standards, specifications, approvals / marine classification 8
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: DNV GL | No |
| Marine classification association: Korean Register of Shipping (KRS) | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | No |
Standards, specifications, approvals / hazardous environments 4
| standard / for hazardous zone | EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
|---|---|
| from CSA and UL | ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC, E240480 |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| as marking | Ex nA IIC T4 Gc |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 199.95 kg |
| global warming potential [CO2 eq]: during manufacturing | 33.7 kg |
| global warming potential [CO2 eq]: during operation | 166.06 kg |
| global warming potential [CO2 eq]: after end of life | 0.19 kg |
Logistics 7
| Net weight | 0.6 kg |
|---|---|
| Package dimensions | 137 × 35 × 157 mm |
| Country of origin | DE |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5738-1GY00-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EC Declaration of Conformity
- CE marking
- C-Tick
- E1 approval
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11h
- IEEE 802.11i
Quick answers
Questions about the W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..
What is the rated current of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..?
The rated current of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 0.25 A.
Which supply voltage is W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. rated for?
The rated operational voltage of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 24–48 V DC.
What is the HS code of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. for customs?
The tariff (HS) code on file for W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 85176200.
What is the EAN of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel ..?
The EAN (GTIN) of W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. is 4047622420867.
Where does W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. ship from, and how fast?
W738-1 M12 IWLAN client, SCALANCE W738-1 M12, 1 radio, 2 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 300 Mbps, 2x M12 max. 100 Mbps, PoE integrated 2-port switch, redundant 24 V DC,M12 A-coded IP65, -20... 60 °C, plug slot WPA2/802.11i/e, observe national approvals! CERT ID: MSN65-W1-M12-E2 scope of supply: manuals on CD-ROM, German/English; M12 sealing caps, for operation outside of USA/Israel .. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
