- Part number
- 6GK5626-2GS00-2AC2
- Model no
- SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.

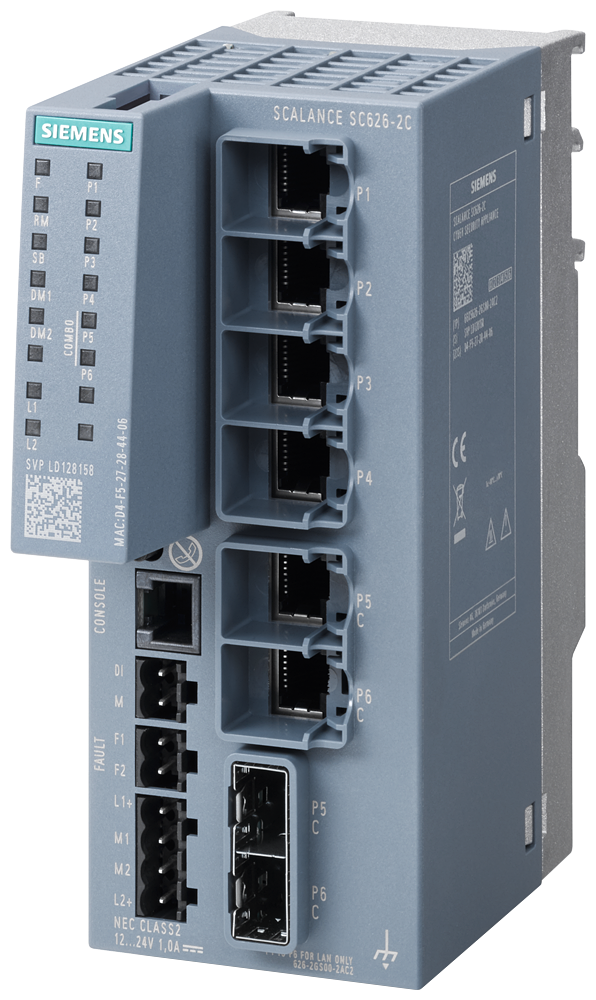

Siemens 6GK5626-2GS00-2AC2 SCALANCE SC626-2C 6-Port Industrial Security Appliance Firewall Router
Siemens SCALANCE SC626-2C industrial security appliance, 6 ports, stateful firewall, NAT/NAPT, OpenVPN, ring redundancy.
Description
About the SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.
About the SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.
The Siemens SCALANCE SC626-2C (6GK5626-2GS00-2AC2) is an industrial security appliance with four fixed 10/100/1000 Mbit/s RJ45 ports plus two RJ45/SFP combo ports, combining a stateful-inspection firewall with NAT/NAPT translation and an OpenVPN client for SINEMA RC remote access. It adds ring redundancy (MRP, HRP, RSTP) beyond basic standby switchover, and runs from a redundant 24 V DC supply rated 9.6-31.2 V.
Certifications & Standards
- UKCA
- CE
- CCC
- EPD
Selection Notes
The SC626-2C's six network ports (four fixed RJ45 plus two RJ45/SFP combo) make it the choice when several sub-networks or a small ring segment need separating from one appliance, rather than protecting a single machine with a lower-port-count model in this series. It adds ring redundancy protocols (MRP, HRP, RSTP) alongside standby switchover, so it fits a topology where the security appliance itself sits in a ring rather than a single point-to-point link. Redundant 9.6-31.2 V DC feeds with an independent 13.2 W draw on each input keep it powered through a single supply-loop fault.
Applications
Perimeter firewall and secure remote-access gateway for a machine group or several sub-networks on a PROFINET/Ethernet ring, where SINEMA RC-based remote maintenance and PROFIsafe-compliant network separation are required.
Specification
Full specification
General 2
| product type designation | SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. |
|---|---|
| product brand name | SCALANCE |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces 9
| number of electrical/optical connections / for network components or terminal equipment / maximum | 6 |
|---|---|
| number of electrical connections / for SFP+ / integrated | 2 |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 2 |
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| design of the removable storage / C-PLUG | Yes |
Show all 145 specifications ↓ Show less ↑133 more values in Identification, Signal inputs/outputs, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / DHCP, Product functions / routing, Product functions / security, Product functions / redundancy, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GK5626-2GS00-2AC2 |
|---|---|
| Type designation | SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622825495 |
| ETIM class | EC001478 |
| eCl@ss | 19170128 |
Signal inputs/outputs 5
| number of electrical connections: for digital input signals | 1 |
|---|---|
| type of electrical connection: for digital input signals | 2-pole terminal block |
| type of electrical connection: for digital output signals | 2-pole terminal block |
| operating voltage / of the signaling contacts / at DC / rated value | 24 V |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 10
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 13.2 W |
| consumed current / 1 / maximum | 0.55 A |
| type of voltage / 2 / of the supply voltage | DC |
| supply voltage / 2 / rated value | 24 V |
| power loss [W] / 2 / rated value | 13.2 W |
| supply voltage / 2 / rated value / minimum | 9.6 V |
| supply voltage / 2 / rated value / maximum | 31.2 V |
| consumed current / 2 / maximum | 0.55 A |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | compact |
|---|---|
| width | 60 mm |
| height | 145 mm |
| depth | 125 mm |
| fastening method | Fixing bolt with additional screw protection |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
| fastening method: wall mounting | Yes |
Product features, product functions, product components / general 2
| product function / DynDNS client | Yes |
|---|---|
| product function / for PROFIsafe networks / suitable for network separation | Yes |
Product functions / management, configuration, engineering 20
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| protocol / is supported: Telnet | No |
| protocol / is supported: HTTP | No |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| type of configuration | WBM, CLI, SNMP |
| PROFINET conformity class | A |
Product functions / diagnostics 13
| product function: SysLog | Yes |
|---|---|
| product function: packet filter log | Yes |
| product function: audit log | Yes |
| product function: system log | Yes |
| product function: port diagnostics | Yes |
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product functions / VLAN product function: VLAN - port based | Yes |
| product functions / VLAN product function: VLAN - protocol-based | No |
| product functions / VLAN product function: VLAN - IP-based | No |
| product functions / VLAN product function: VLAN dynamic | No |
| number of VLANs / maximum | 257 |
Product functions / DHCP 4
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server - internal network | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 6
| product function / static IP routing | Yes |
|---|---|
| protocol / is supported / VRRP | Yes |
| protocol / is supported / VRRP for IPv6 | Yes |
| product function / static IP routing IPv6 | Yes |
| protocol / is supported / OSPFv2 | Yes |
| protocol / is supported / OSPFv3 for IPv6 | Yes |
Product functions / security 10
| firewall version | stateful inspection |
|---|---|
| product function / with VPN connection | OpenVPN (as client for SINEMA RC) |
| product function: password protection | Yes |
| product function: bandwidth limitation | No |
| product function: NAT/NAPT | Yes |
| product function: IEEE 802.1x (radius) | Yes |
| product function: RADIUS client | Yes |
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported / SSH | Yes |
Product functions / redundancy 7
| product function: ring redundancy | Yes |
|---|---|
| product function: standby redundancy | Yes |
| product function: High Speed Redundancy Protocol (HRP) | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: passive listening | Yes |
Product functions / time 7
| protocol / is supported / NTP | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: NTP-server | Yes |
| protocol / is supported / SNTP | Yes |
| product function: SNTP client | Yes |
| product function: SNTP server | Yes |
| product feature / hardware real time clock w. battery backup | Yes |
Standards, specifications, approvals 12
| standard / for FM | FM19US0167X |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| standard: for emitted interference | EN 61000-6-4: 2007 |
| standard: for interference immunity | EN 61000-6-2: 2005 |
| certificate of suitability | AS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4 |
| CE marking | Yes |
| CCC | Yes |
| MTBF | 29.63 a |
| standard | EN/IEC 61709 |
| reference temperature | 40 °C |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 359.504 kg |
| global warming potential [CO2 eq]: during manufacturing | 30.8 kg |
| global warming potential [CO2 eq]: during operation | 328 kg |
| global warming potential [CO2 eq]: after end of life | 0.473 kg |
Accessories 1
| product extension / optional: C-PLUG | Yes |
|---|
Logistics 7
| Net weight | 1.5 kg |
|---|---|
| Package dimensions | 74 × 50 × 114 mm |
| Country of origin | DE |
| Shipping weight | 2.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5626-2GS00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UKCA marking
- CE marking
- CCC
- Environmental Product Declaration
Quick answers
Questions about the SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.
What is the rated current of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.?
The rated current of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. is 0.55 A.
Which supply voltage is SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. rated for?
The rated operational voltage of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. is 24 V AC.
What is the HS code of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. for customs?
The tariff (HS) code on file for SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. is 85176200.
What is the EAN of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP.?
The EAN (GTIN) of SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. is 4047622825495.
Where does SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. ship from, and how fast?
SC626 SCALANCE SC626-2C Industrial Security Appliance; for protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; further functions: network separation according to PROFIsafe; address conversion (NAT/NAPT); connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbps RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbps RJ45 or 1000 Mbps SFP. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
