- Part number
- 6GK5615-0AA00-2AA2
- Model no
- S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
In stock · 17
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0

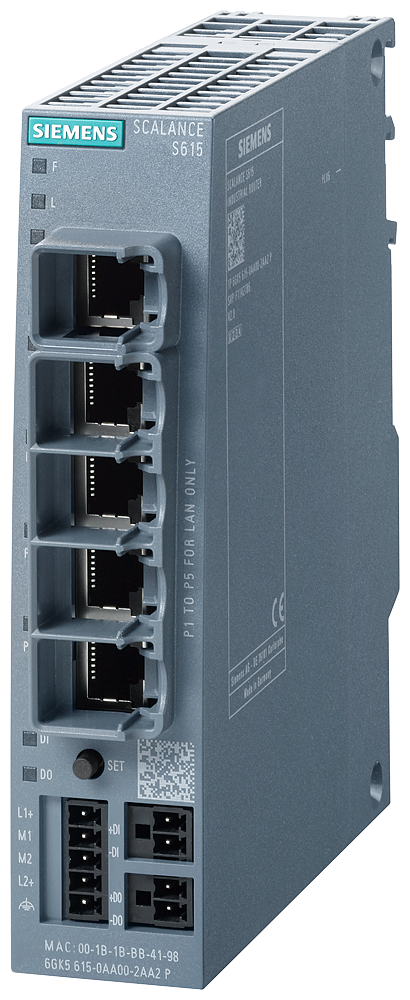

Siemens 6GK5615-0AA00-2AA2 SCALANCE S615 LAN Router VPN Firewall 5-Port Industrial Router
SCALANCE S615 LAN router: VPN/firewall (IPsec, OpenVPN), NAT/NAPT, 5-port switch, 24V DC, DIN rail.
Description
About the S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
About the S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
The Siemens SCALANCE S615 (6GK5615-0AA00-2AA2) is an industrial LAN router combining a stateful-inspection firewall, IPsec and OpenVPN client capability, and NAT/NAPT address translation with an integrated 5-port switch. It runs on a 24V DC supply (10.8-28.8V), includes one digital input and one digital output, and mounts on a 35mm DIN rail.
Certifications & Standards
- CE
- ABS
- BV
- DNV GL
- LRS
- NK
- RINA
- EPD
Selection Notes
This S615 variant provides VPN and firewall functions on a compact 5-port unit rather than a larger port-count SCALANCE S mid-range router; select it when protecting a single machine or cell, since it supports up to 20 concurrent VPN connections rather than a larger plant segment. The onboard digital input/output pair lets it report router status or fault signals to a PLC without a separate contact module, and the optional KEY-PLUG accessory extends its baseline feature set if additional licensed functions are needed later.
Applications
Used to segment and VPN-protect individual machines or production cells from the plant network, for remote-access maintenance via SINEMA RC, and on marine or offshore installations given its ABS, DNV GL, LRS, BV, NK, and RINA marine classifications.
Specification
Full specification
General 2
| product type designation | S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. |
|---|---|
| product brand name | SCALANCE |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces 5
| number of electrical/optical connections / for network components or terminal equipment / maximum | 5 |
|---|---|
| number of electrical connections: for power supply | 1 |
| number of electrical connections: for redundant voltage supply | 1 |
| type of electrical connection: for power supply | 5-pole terminal block |
| design of the removable storage / C-PLUG | Yes |
Show all 97 specifications ↓ Show less ↑89 more values in Identification, Signal inputs/outputs, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / DHCP, Product functions / routing, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / Environmental Product Declaration, Accessories, Logistics.
Identification 10
| Part number | 6GK5615-0AA00-2AA2 |
|---|---|
| Type designation | S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622252741 |
| ETIM class | EC001478 |
| eCl@ss | 19170128 |
Signal inputs/outputs 4
| number of electrical connections: for digital input signals | 1 |
|---|---|
| number of electrical connections: for digital output signals | 1 |
| type of electrical connection: for digital input signals | 2-pole terminal block |
| type of electrical connection: for digital output signals | 2-pole terminal block |
Supply voltage, current consumption, power loss 6
| type of voltage / 1 / of the supply voltage | DC |
|---|---|
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 4 W |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | Non-replaceable melting fuse (F 2 A5 / 32 V) |
| consumed current / at DC / at 24 V / typical | 0.2 A |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +80 °C |
| ambient temperature: during transport | -40 ... +80 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | compact |
|---|---|
| width | 35 mm |
| height | 147 mm |
| depth | 127 mm |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product functions / management, configuration, engineering 8
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| type of configuration | Web Based Management, CLI, SNMP, SCT (Configuration support for certificate generation) |
Product functions / diagnostics 4
| product function: SysLog | Yes |
|---|---|
| product function: packet filter log | Yes |
| product function: audit log | Yes |
| product function: system log | Yes |
Product functions / DHCP 2
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP server - internal network | Yes |
Product functions / routing 2
| product function / static IP routing | Yes |
|---|---|
| protocol / is supported / VRRP for IPv6 | Yes |
Product functions / security 9
| firewall version | stateful inspection |
|---|---|
| product function / with VPN connection | IPsec, OpenVPN (as client for SINEMA RC) |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168, DES-56 |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| number of possible connections / with VPN connection | 20 |
| product function: password protection | Yes |
| product function: bandwidth limitation | No |
| product function: NAT/NAPT | Yes |
Product functions / time 3
| protocol / is supported / NTP | Yes |
|---|---|
| product component / hardware real time clock | Yes |
| product feature / hardware real time clock w. battery backup | No |
Standards, specifications, approvals 6
| standard: for safety / from CSA and UL | UL 60950 E115352 |
|---|---|
| standard: for emitted interference | EN 61000-6-4 |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | ATEX, EMC, RoHS |
| CE marking | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Standards, specifications, approvals / marine classification 6
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | Yes |
|---|---|
| Marine classification association: French marine classification society (BV) | Yes |
| Marine classification association: DNV GL | Yes |
| Marine classification association: Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association: Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / hazardous environments 2
| standard / for hazardous zone | EN 60079-15, EN 60079-0, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X |
|---|---|
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 141.056 kg |
| global warming potential [CO2 eq]: during manufacturing | 15.6 kg |
| global warming potential [CO2 eq]: during operation | 125 kg |
| global warming potential [CO2 eq]: after end of life | 0.42 kg |
Accessories 3
| product extension / optional: C-PLUG | No |
|---|---|
| product extension / optional: KEY-PLUG | Yes |
| accessories | optional KEY-PLUG |
Logistics 7
| Net weight | 0.355 kg |
|---|---|
| Package dimensions | 74 × 50 × 114 mm |
| Country of origin | DE |
| Shipping weight | 0.855 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5615-0AA00-2AA2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- American Bureau of Shipping Europe Ltd. (ABS)
- French marine classification society (BV)
- DNV GL
- Lloyds Register of Shipping (LRS)
- Nippon Kaiji Kyokai (NK)
- Royal Institution of Naval Architects (RINA)
- Environmental Product Declaration
Quick answers
Questions about the S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.
What is the rated current of S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.?
The rated current of S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. is 0.2 A.
What is the HS code of S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. for customs?
The tariff (HS) code on file for S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. is 85176200.
What is the EAN of S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output.?
The EAN (GTIN) of S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. is 4047622252741.
Where does S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. ship from, and how fast?
S615 SCALANCE S615 LAN router; for protection of devices/networks in automation technology and for protection of industrial communication by means of VPN and firewall; Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 5-port switch, 1x dig. input, 1x digital output. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
