- Part number
- 6GK5598-1AA00-3AA0
- Model no
- Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.
Siemens has announced the end of 6GK5598-1AA00-3AA0
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XSiemens 6GK5598-1AA00-3AA0 SCALANCE PS598-1 300W 24V DC Power Supply Networking Accessory
Siemens SCALANCE PS598-1 300 W power supply, 85-264 V AC input, 24 V DC / 12.5 A output for SCALANCE X-500.
Description
About the Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.
About the Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.

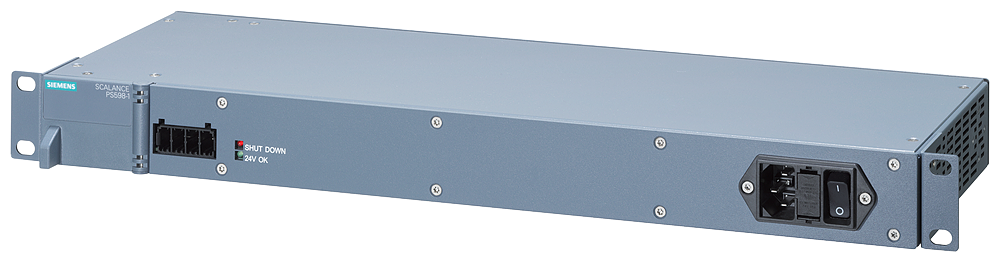

The Siemens SCALANCE PS598-1 (6GK5598-1AA00-3AA0) is a 300 W power supply for the SCALANCE X-500 switch family, taking 85-264 V AC wide-range input and delivering a regulated, galvanically isolated 24 V DC output at up to 12.5 A. It plugs directly into the basic unit or mounts in a 19-inch rack, with a green LED indicating 24 V ok and a separate fault LED.
Certifications & Standards
- CE
- C-Tick
- EPD
Selection Notes
The PS598-1's 12.5 A / 300 W output covers the higher end of SCALANCE X-500 switch power budgets, including PoE-heavy configurations that draw well above the current a compact switch power stage alone provides. Two units can be paralleled to double available output current where a single 300 W supply is not enough for the connected load. Its wide 85-264 V AC input tolerates weak or fluctuating mains without a separate stabilizer, and the 16 ms minimum buffering time rides through short supply dropouts without a switch reboot.
Applications
Primary or redundant 24 V DC power source for SCALANCE X-500 series switches, particularly PoE-loaded configurations or installations needing N+1 supply redundancy via parallel units.
Specification
Full specification
General 3
| product type designation | Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. |
|---|---|
| product brand name | SCALANCE |
| type of current supply | 300 W, input: 85-264 V, output:DC 24 |
Electrical data 1
| product category | Power supply |
|---|
Electrical data / input 10
| voltage curve / at input | AC single phase |
|---|---|
| supply voltage / 1 / rated value | 230 V |
| type of voltage / 1 / of the supply voltage | AC |
| design of input / wide range input | Yes |
| overvoltage category | Category II (20 A rated branch circuit) |
| buffering time / for rated value of the output current / in the event of power failure / minimum | 16 ms |
| line frequency | 47 ... 63 Hz |
| input current / at rated input voltage 230 V / rated value | 1.8 A |
| current limitation / of inrush current / at 25 °C / maximum | 40 A |
| fuse protection type / at input | replaceable |
Show all 94 specifications ↓ Show less ↑80 more values in Identification, Electrical data / output, Electrical data / closed-loop control, Electrical data / protection and monitoring, Electrical data / safety, Interfaces, Design, dimensions and weights, Ambient conditions, Standards, specifications, approvals, Logistics.
Identification 10
| Part number | 6GK5598-1AA00-3AA0 |
|---|---|
| Type designation | Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169854689 |
| ETIM class | EC002540 |
| eCl@ss | 27040701 |
Electrical data / output 13
| voltage curve / at output | Controlled, isolated DC voltage |
|---|---|
| output voltage: 1 / at DC / rated value | 24 V |
| display version / for normal operation | Green LED for 24 V ok and fault LED |
| behavior of the output voltage / when switching on | Overshoot of Ua < 5 % |
| startup delay time / maximum | 1.5 s |
| voltage increase time / of the output voltage / maximum | 15 ms |
| output current: rated value | 12.5 A |
| output current: rated range | 0 ... 12.5 A |
| supplied active power / typical | 300 W |
| product feature / parallel switching of channels | Yes |
| number of parallel-switched equipment resources / for increasing the power | 2 |
| efficiency in percent | 87 % |
| power loss [W] | 39 W |
Electrical data / closed-loop control 8
| relative overall tolerance / of the voltage | 2% |
|---|---|
| residual ripple / maximum | 0.36 V |
| voltage peak / maximum | 240 V |
| relative control precision / of the output voltage: on slow fluctuation of input voltage | 0.2 % |
| relative control precision / of the output voltage: load step of resistive load 50/100/50 % / typical | 3.25 % |
| relative control precision / of the output voltage: with rapid fluctuation of the input voltage by +/- 15% / typical | 0.8 % |
| setting time: load step 50 to 100% / typical | 2 ms |
| setting time: load step 100 to 50% / typical | 2 ms |
Electrical data / protection and monitoring 4
| design of the overvoltage protection / at output | < 37 V |
|---|---|
| response value current limitation / typical | 1.15 A |
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Electronic shutdown, automatic restart |
Electrical data / safety 5
| electrical separation / between input and output | Yes |
|---|---|
| galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| operating resource protection class | Class I |
| leakage current: maximum | 3 mA |
| leakage current: typical | 0.858 mA |
Interfaces 2
| type of electrical connection: at input | IEC plug |
|---|---|
| type of electrical connection: at output | for plugging into basic device or screw terminal in accordance with specification |
Design, dimensions and weights 9
| width | 446 mm |
|---|---|
| height | 44 mm |
| depth | 140 mm |
| product feature / of the enclosure / housing can be lined up | No |
| fastening method | Plugged into the basic unit or rack mounted |
| 19-inch installation | Yes |
| wall mounting | No |
| DIN-rail mounting | No |
| S7-300 rail mounting | No |
Ambient conditions 6
| ambient temperature: during operation | 60 °C |
|---|---|
| ambient temperature: during storage | -25 ... +70 °C |
| ambient temperature: during transport | -25 ... +70 °C |
| ambient temperature: note | Operation with integral fan, non-replaceable |
| environmental category / according to IEC 60721 | Climate class 3K3, without condensation |
| protection class IP | IP20 |
Standards, specifications, approvals 16
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
|---|---|
| standard: for emitted interference | EN 55022 (Class B) |
| standard: for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 55022, EN 61000-6-4 |
| CE marking | Yes |
| C-Tick | Yes |
| E1 approval | No |
| railway application in accordance with EN 50155 | No |
| railway application in accordance with EN 50124-1 | No |
| IEC 61850-3 | No |
| MTBF standards, specifications, approvals / Environmental Product Declaration | 17.47 a |
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq]: total | 595.15 kg |
| global warming potential [CO2 eq]: during manufacturing | 62.11 kg |
| global warming potential [CO2 eq]: during operation | 532.64 kg |
| global warming potential [CO2 eq]: after end of life | 0.4 kg |
Logistics 7
| Net weight | 1.7 kg |
|---|---|
| Package dimensions | 74 × 50 × 114 mm |
| Country of origin | DE |
| Shipping weight | 2.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5598-1AA00-3AA0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- C-Tick
- Environmental Product Declaration
Quick answers
Questions about the Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.
What is the rated current of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.?
The rated current of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. is 12.5 A.
Which supply voltage is Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. rated for?
The rated operational voltage of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. is 85–264 V AC.
What motor power is Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. rated for?
The rated motor power of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. is 0.3 kW.
What is the HS code of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. for customs?
The tariff (HS) code on file for Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. is 85044083.
What is the EAN of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500.?
The EAN (GTIN) of Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. is 4019169854689.
Where does Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. ship from, and how fast?
Power Supply PS598-1 SCALANCE PS598-1 Power-Supply 300 W input: 85-264 V AC IEC plug; Output: DC 24 V connecting terminals or for direct connection to SCALANCE X-500. ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
