- Part number
- 6GK5552-0AR00-2AR2
- Model no
- XR552-12M
Siemens has announced the end of 6GK5552-0AR00-2AR2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
SCALANCE XR552Siemens 6GK5552-0AR00-2AR2 SCALANCE XR552-12M 16-Port Managed PoE Switch Front Ports L3 Integrated
Siemens SCALANCE XR552-12M managed switch, 12 PoE media-module ports, 4x SFP+, front cabling, Layer 3 routing integrated.
Description
About the XR552-12M
About the XR552-12M

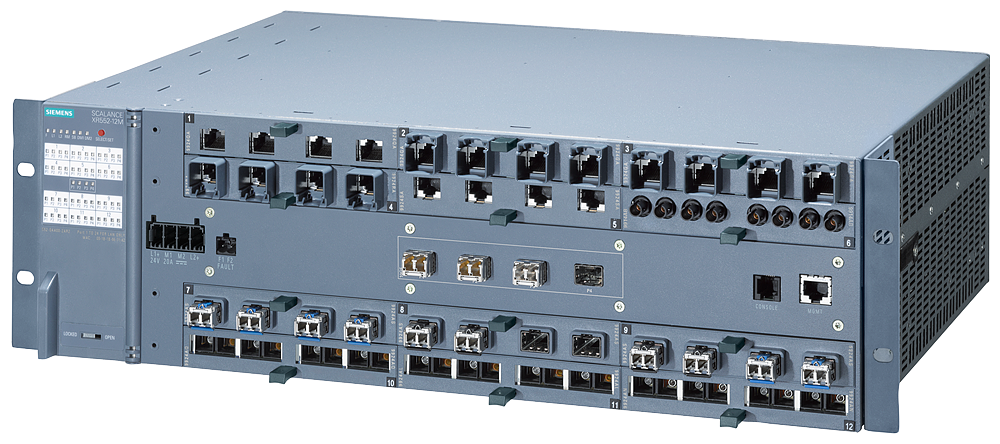

The Siemens SCALANCE XR552-12M (6GK5552-0AR00-2AR2) is a managed 19-inch rack Ethernet switch with 12 hot-swappable media-module ports and 4x 10 Gbit/s SFP+ uplinks, supporting up to 180 W of PoE across its front-facing ports. Layer 3 IP routing is integrated, so static and dynamic routing with RIPv2, OSPFv2 and VRRP run without an add-on license, and a C-PLUG ships included.
Certifications & Standards
- CE
- KC
- RCM
- CCC
- RoHS
Selection Notes
The front-port layout suits cabinets with front-only cable access, and Layer 3 routing is already integrated here — static and dynamic IP routing with RIPv2, OSPFv2 and VRRP work without adding a separate KEY-PLUG XR-500 license, unlike the Layer-3-prepared variant of this switch. That makes it the direct choice where the switch itself needs to route between VLANs or subnets at the aggregation layer rather than just switch. The 4x SFP+ ports still carry the 10 Gbit/s uplinks while the 12 media-module ports supply up to 180 W of PoE.
Applications
Layer 3 aggregation switch for PROFINET networks that route between VLANs or subnets at the switch itself, with front cable access and PoE for field devices.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR552-12M |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | RJ45 |
|---|---|
| number of electrical connections: for Power-over-Ethernet / for network components or terminal equipment | 12 |
| number of electrical connections: for SFP+ | 4 |
Show all 163 specifications ↓ Show less ↑157 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / routing, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5552-0AR00-2AR2 |
|---|---|
| Type designation | XR552-12M |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169252515 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 5
| number of 100 Mbit/s ST(BFOC) ports: for multimode | 48 |
|---|---|
| number of 100 Mbit/s ST(BFOC) ports: for single mode (LD) | 48 |
| number of 1000 Mbit/s SC ports: for multimode | 48 |
| number of 1000 Mbit/s SC ports: for single mode (LD) | 48 |
| number of electrical connections: for SFP | 4 |
Interfaces / other 11
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for media module | 12 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for management purposes | RJ45 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| product feature / hot-swappable interface modules | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 11
| type of voltage supply / redundant power supply unit | No |
|---|---|
| supplied active power / of PSE / with PoE: per port / maximum | 30 W |
| supplied active power / of PSE / with PoE: total / maximum | 180 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 34.08 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 12.5 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 15 A / 125 V |
Ambient conditions 6
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| ambient temperature: note | Operation with integral fan, replaceable |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 3 |
| width | 449 mm |
| height | 130.8 mm |
| depth | 305 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
| type of cable outlet | Cable outlet at front |
Product features, product functions, product components / general 1
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| telegram length / for Ethernet / maximum | 9216 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | Yes |
| product function: VLAN - IP-based | Yes |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 255 |
| number of VLANs - dynamic / maximum | 255 |
Product functions / DHCP 4
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 11
| service / routing / note | IP routing integrated |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | Yes |
| product function: dynamic IP routing | Yes |
| product function: dynamic IP routing IPv6 | Yes |
| protocol / is supported: RIPv2 | Yes |
| protocol / is supported: RIPnG for IPv6 | Yes |
| protocol / is supported: OSPFv2 | Yes |
| protocol / is supported: OSPFv3 for IPv6 | Yes |
| protocol / is supported: VRRP | Yes |
| protocol / is supported: VRRP for IPv6 | Yes |
Product functions / redundancy 11
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| type of time synchronization | IEEE 1588 |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1-03 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1077.71 kg |
| global warming potential [CO2 eq]: during manufacturing | 132 kg |
| global warming potential [CO2 eq]: during operation | 945.12 kg |
| global warming potential [CO2 eq]: after end of life | 0.59 kg |
Product functions / general 1
| warranty period | 5 a |
|---|
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 132 kg |
|---|
Logistics 7
| Net weight | 11.58 kg |
|---|---|
| Package dimensions | 125 × 60 × 145 mm |
| Country of origin | DE |
| Shipping weight | 12.58 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5552-0AR00-2AR2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
- RoHS conformity
Quick answers
Questions about the XR552-12M
What is the rated current of XR552-12M?
The rated current of XR552-12M is 12.5 A.
Which supply voltage is XR552-12M rated for?
The rated operational voltage of XR552-12M is 24 V AC.
What is the HS code of XR552-12M for customs?
The tariff (HS) code on file for XR552-12M is 85176200.
What is the EAN of XR552-12M?
The EAN (GTIN) of XR552-12M is 4019169252515.
Where does XR552-12M ship from, and how fast?
XR552-12M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
