- Part number
- 6GK5124-0BA00-2AC2
- Model no
- XC124
- ATEX

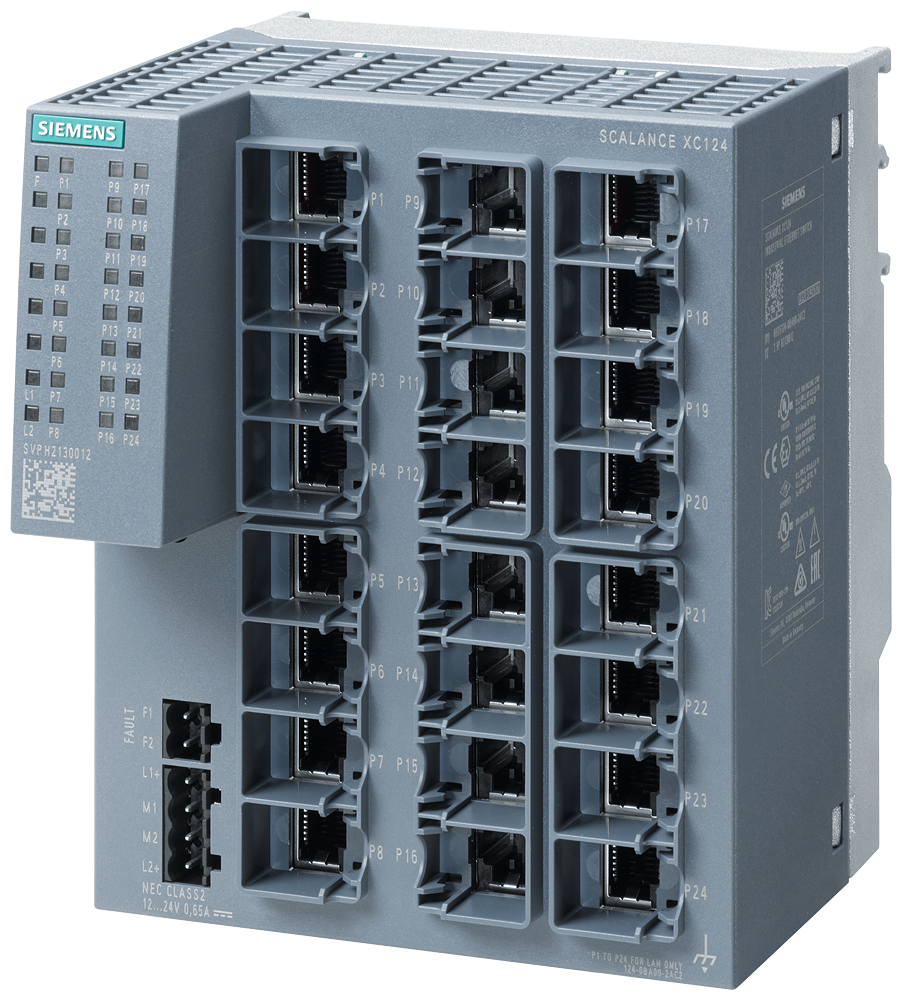

SCALANCE XC124Siemens 6GK5124-0BA00-2AC2 SCALANCE XC124 24-Port 10/100 Mbit/s Industrial Ethernet Switch
Siemens 6GK5124-0BA00-2AC2: unmanaged 24-port 10/100 Mbit/s switch, redundant 24 V DC, -40 to +70 °C.
Description
About the XC124
About the XC124
The Siemens SCALANCE XC124 6GK5124-0BA00-2AC2 is an unmanaged 24-port Fast Ethernet switch for PROFINET Class A networks with no PoE. All 24 RJ45 ports run 10/100 Mbit/s, and a redundant 24 V DC input accepts a wide 9.6-31.2 V range through a single fused terminal block. An error-signaling contact reports supply loss for cabinet monitoring.
Certifications & Standards
- CE
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC-Ex
- FM
Selection Notes
With 24 RJ45 ports in one compact housing, this switch fits star or line topologies with more connected devices than a stacked pair of 8-port XB108/XCM108 switches, at the cost of no PoE and no fiber uplink port. The -40 to +70 °C rating runs 10 °C hotter than the DIN-rail PoE switches in the range, useful in enclosures with poor ventilation. Pick a SCALANCE XR124 rack switch instead when the installation needs 19-inch mounting rather than DIN rail.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC124 |
Transfer rate 1
| transfer rate | 10, 100 Mbit/s |
|---|
Interfaces / for communication / integrated 1
| number of electrical connections: for network components or terminal equipment | 24; RJ45 |
|---|
Show all 92 specifications ↓ Show less ↑88 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / redundancy, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Formity tion, Logistics.
Identification 10
| Part number | 6GK5124-0BA00-2AC2 |
|---|---|
| Type designation | XC124 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622311998 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 6
| number of electrical connections: for signaling contact | 1 |
|---|---|
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 9
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 7.8 W |
| supply voltage / 1 / voltage range | 9.6 ... 31.2 |
| consumed current / 1 / maximum | 0.65 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 2,5 A / 125 V |
Ambient conditions 14
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP design, dimensions and weights | IP20 |
| design | compact |
| width | 120 mm |
| height | 147 mm |
| depth | 125 mm |
| material / of the enclosure | Polycarbonate (PC-GF10) |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 1
| number of automatically learnable MAC addresses | 2048 |
|---|
Product functions / management, configuration, engineering 4
| product function: multiport mirroring | No |
|---|---|
| product function: CoS | Yes |
| product function: switch-managed | No |
| PROFINET conformity class | A |
Product functions / redundancy 2
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
|---|---|
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class B) |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 441.1 kg |
| global warming potential [CO2 eq]: during manufacturing | 47.67 kg |
| global warming potential [CO2 eq]: during operation | 392.82 kg |
| global warming potential [CO2 eq]: after end of life | 0.57 kg |
Product functions / general 3
| laser protection class | LED Class 1 |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 47.67 kg |
|---|
Formity tion 1
| General Product Approval EMV | China RoHS |
|---|
Logistics 7
| Net weight | 1.032 kg |
|---|---|
| Package dimensions | 124 × 60 × 125 mm |
| Country of origin | DE |
| Shipping weight | 1.532 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5124-0BA00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- ATEX
- CE marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
Quick answers
Questions about the XC124
Which supply voltage is XC124 rated for?
The rated operational voltage of XC124 is 24 V AC.
What is the HS code of XC124 for customs?
The tariff (HS) code on file for XC124 is 85176200.
What is the EAN of XC124?
The EAN (GTIN) of XC124 is 4047622311998.
Where does XC124 ship from, and how fast?
XC124 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
