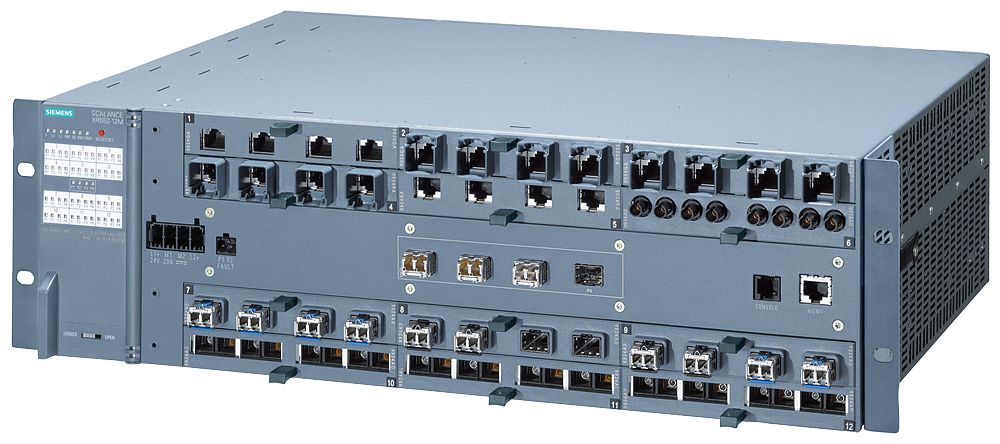

Siemens 6GK5552-0AA00-2AR2 SCALANCE XR552-12M 16-Port Managed PoE Switch Front Ports L3 Prepared

The Siemens SCALANCE XR552-12M (6GK5552-0AA00-2AR2) is a managed 19-inch rack Ethernet switch with 12 hot-swappable media-module ports and 4x 10 Gbit/s SFP+ uplinks, supporting up to 180 W of PoE across its front-facing ports. It ships Layer 3 prepared, so IP routing activates once a KEY-PLUG XR-500 license is added, and includes a C-PLUG for configuration swap-out.

Technical Specifications

Certifications & Standards

• CE
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULHazLoc
• CCC
• FM
• RoHS

Selection Notes

Choose the front-port version when cabinet cabling needs to stay accessible from the front, matching typical rack layouts where rear access is limited. With Layer 3 prepared rather than integrated, IP routing (RIPv2, OSPFv2, VRRP) only becomes active after a KEY-PLUG XR-500 module is purchased and installed — the Layer-3-integrated variant of this switch is the direct choice instead if routing must work from day one without that extra license. The 4x SFP+ uplinks handle 10 Gbit/s backbone links while the 12 media-module ports carry PoE loads up to 30 W each toward cameras or wireless access points on the access side.

Applications

Managed access/aggregation switch for PROFINET or PoE-powered field devices (cameras, wireless access points) where front cable access is needed and Layer 3 routing can be added later via KEY-PLUG XR-500.
