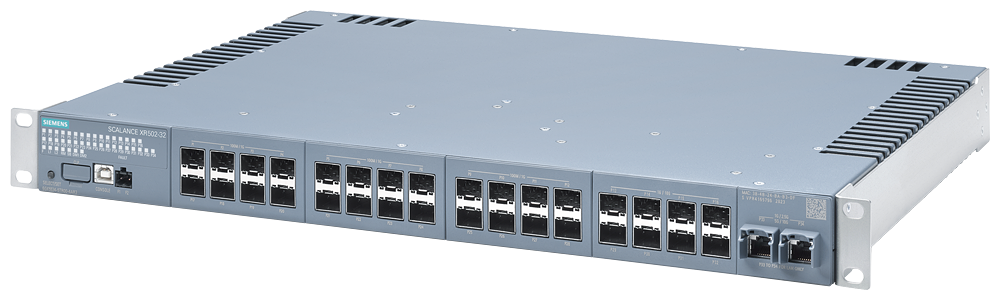

Siemens 6GK5534-5TR00-4AR3 SCALANCE XR502-32 34-Port Managed Layer 3 Industrial Ethernet Switch

The Siemens SCALANCE XR502-32 (6GK5534-5TR00-4AR3) is a managed Layer 3 industrial Ethernet switch for 19-inch rack mounting, combining 2 electrical 10G RJ45 ports, 24 SFP ports, and 8 SFP+ ports in one chassis. It supports PROFINET IO device operation, an integrated redundancy manager, and dual 100-250 V DC / 100-240 V AC power inputs for redundant supply.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• KC
• RCM
• RoHS
• EPD

Selection Notes

The XR502-32's dual AC/DC power inputs, each independently fused, let it run from a DC UPS plus an AC mains feed at the same time, so a single supply failure does not interrupt switching. With 24 SFP and 8 SFP+ ports against only 2 electrical uplinks, it is built for a fiber-heavy backbone or aggregation layer rather than a copper access switch — pick it where most connected devices already terminate on fiber media modules. The integrated redundancy manager plus support for HRP, MRP, HSR and PRP in one unit covers both classic Siemens ring topologies and zero-recovery-time schemes without an external RM module. Static and dynamic IP routing (RIPv2, OSPFv2, VRRP) lets it segment Layer 3 subnets at the aggregation point instead of hauling all traffic to a central router.

Applications

19-inch rack backbone or aggregation switch for large PROFINET/Ethernet installations needing Layer 3 routing between VLANs, dual power redundancy, and ring or PRP network redundancy — for example a plant-wide backbone linking multiple production cells.
