Siemens 6GK5534-5TR00-3AR3 SCALANCE XR502-32 Layer 3 Switch, 230V AC, 8x SFP+ 10G

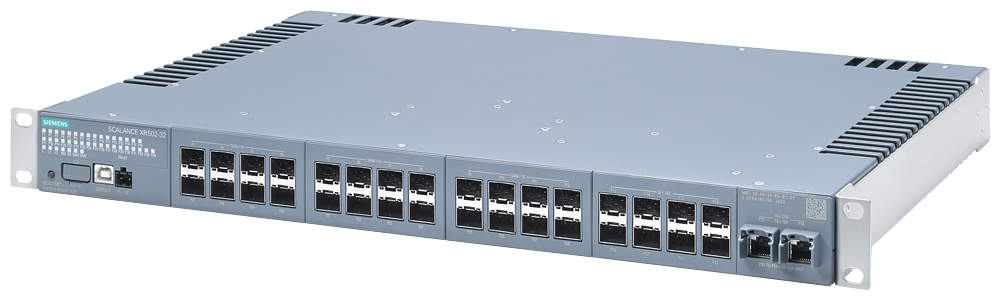

The Siemens SCALANCE XR502-32 (6GK5534-5TR00-3AR3) is a 19-inch rack, Layer 3 managed Ethernet switch with 2x combo 1G/2.5G/5G/10G RJ45 ports, 24x SFP ports, and 8x SFP+ ports for 10 Gbit/s uplinks. It runs from a single 100-240V AC/DC-rated supply on an IEC C14 inlet and integrates a redundancy manager for ring topologies.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• KC
• RCM
• RoHS
• EPD

Selection Notes

The 3AR3 variant takes a single AC mains feed on an IEC C14 inlet (the same terminal also accepts 100-250V DC) - the option to pick when the panel has mains AC available. Pick the 2AR3 sibling instead for a 24V DC bus. With 24 SFP slots and only 2 RJ45 uplink ports, the XR502-32 is built for fiber-heavy access layers rather than copper-dense ones - use the XR526-8 or XR522-12 instead where most drops are RJ45.

Applications

The 24x SFP port count fits distribution cabinets aggregating long-haul fiber runs from multiple remote panels or rings, with the 8x SFP+ ports carrying the 10 Gbit/s uplink back to the plant core.
