SCALANCE XR522Siemens 6GK5534-3TR00-4AR3 SCALANCE XR522-12 Layer 3 Switch, Redundant 230V AC PSU

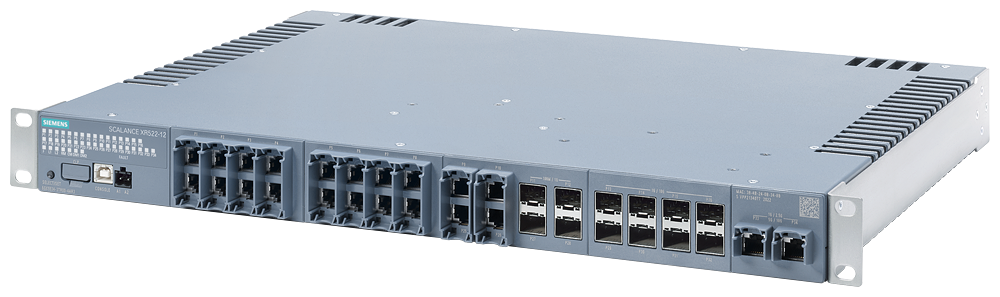

Siemens SCALANCE XR522-12 L3 managed switch, 20x RJ45, 4x SFP, 8x SFP+ 10G, redundant 230V AC supplies.
Description
About the XR522-12
About the XR522-12
The Siemens SCALANCE XR522-12 (6GK5534-3TR00-4AR3) is a 19-inch rack, Layer 3 managed Ethernet switch with 20x 10/100/1000 Mbit/s RJ45 ports, 2x combo 1G/2.5G/5G/10G RJ45 ports, 4x SFP ports, and 8x SFP+ ports for 10 Gbit/s uplinks. Two independent 100-240V AC/DC-rated supplies on IEC C14 inlets give power redundancy alongside the integrated redundancy manager.
Certifications & Standards
- CE
- UKCA
- KC
- RCM
- RoHS
- EPD
Selection Notes
The 4AR3 variant adds a second, independent AC/DC-rated supply input for power redundancy - the option to pick when a single feed failure must not take the backbone switch down. Pick the 3AR3 sibling instead if a single mains feed is acceptable, or 2AR3 for a 24V DC-only bus. Against the larger XR526-8, the XR522-12 trades 4 RJ45 ports for 4 extra SFP slots, which suits sites standardizing on fiber for part of the access layer.
Applications
The redundant supply inputs suit critical distribution cabinets where the switch itself must not become a single point of failure, while the mixed RJ45/SFP/SFP+ port set combines copper drops with fiber runs across a PROFINET plant backbone.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR522-12 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 4
| number of electrical connections: for network components or terminal equipment | 22; RJ45 with securing collar |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 20 |
| number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar | 2 |
| number of electrical connections: for SFP | 4; 100 Mbps and 1000 Mbps SFP usable |
Show all 197 specifications ↓ Show less ↑190 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / routing, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5534-3TR00-4AR3 |
|---|---|
| Type designation | XR522-12 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047622989562 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 9
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | IEC plug C14 AC supply or 2-pole terminal block for DC supply |
| design of the removable storage: CLP | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 17
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | Yes |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 100 V ... 250 V DC |
| power loss [W] / 1 / rated value | 99 W |
| supply voltage / 1 / voltage range | 77 ... 300 |
| consumed current / 1 / maximum | 0.8 A |
| type of electrical connection / 1 / for power supply | 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 4 A / 250 V |
| type of voltage / 2 / of the supply voltage | AC (50 / 60 Hz) |
| supply voltage / 2 / rated value | 240 V; 100V ... 240V AC |
| power loss [W] / 2 / rated value | 99 W |
| supply voltage / 2 / voltage range | 85 ... 264 |
| consumed current / 2 / maximum | 0.8 A |
| type of electrical connection / 2 / for power supply | IEC plug C14 |
| fuse protection type / 2 / at input for supply voltage | F 4 A / 250 V |
Ambient conditions 6
| ambient temperature / in horizontal mounting position / during | -25 ... +60 °C; Starting at -25 °C; The maximum ambient temperature during |
|---|---|
| operation | operation depends on the operating height and the plug-in transceivers, see also manual. |
| installation altitude / at height above sea level / maximum | 3000 m |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |
Design, dimensions and weights 7
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 446 mm |
| height | 43.6 mm |
| depth | 374.8 mm |
| material / of the enclosure | metal |
| fastening method: 19-inch installation | Yes |
Product features, product functions, product components / general 6
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| cascading in cases of star topology | any (depending only on signal propagation time) |
| number of automatically learnable MAC addresses | 16382 |
| number of QoS queues / per port | 8 |
| product function: QoS according to IEEE 802.1Q | Yes |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: NETCONF | No |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 8
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| product function / VXLAN according to RFC 7348 | Yes |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 11
| service / routing / note | IP routing integrated |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | No |
| product function: dynamic IP routing | Yes |
| product function: dynamic IP routing IPv6 | No |
| protocol / is supported: RIPv2 | Yes |
| protocol / is supported: RIPnG for IPv6 | No |
| protocol / is supported: OSPFv2 | Yes |
| protocol / is supported: OSPFv3 for IPv6 | No |
| protocol / is supported: VRRP | Yes |
| protocol / is supported: VRRP for IPv6 | No |
Product functions / redundancy 20
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: High-availability Seamless Redundancy (HSR) | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 5
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 8
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| product function: IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| accuracy / at IEEE 1588 v2: not less than | 100 ns |
| accuracy / at IEEE 1588 v2: typical | 50 ns |
Standards, specifications, approvals 9
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard: for EMC interference emission | EN 61000-6-4, EN 50121-9 |
| standard: for immunity to EMC | EN 61000-6-2, EN 50121-4 |
| standard: for safety / from CSA and UL | UL 62368-1, UL 61010 - 2 |
Standards, specifications, approvals / other 4
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes; use only in areas not accessible to the public |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | No |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1274.81 kg |
| global warming potential [CO2 eq]: during manufacturing | 225.96 kg |
| global warming potential [CO2 eq]: during operation | 1048 kg |
| global warming potential [CO2 eq]: after end of life | 0.85 kg |
Product functions / general 4
| MTBF | 10.6 a |
|---|---|
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 2
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 225.96 kg |
|---|---|
| Environment General Product Approval | TUEV |
Logistics 6
| Net weight | 3 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 31 Oct 2026
Documents
Documents for 6GK5534-3TR00-4AR3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the XR522-12
What is the rated current of XR522-12?
The rated current of XR522-12 is 0.8 A.
Which supply voltage is XR522-12 rated for?
The rated operational voltage of XR522-12 is 100–240 V AC.
What is the HS code of XR522-12 for customs?
The tariff (HS) code on file for XR522-12 is 85176200.
What is the EAN of XR522-12?
The EAN (GTIN) of XR522-12 is 4047622989562.
Where does XR522-12 ship from, and how fast?
XR522-12 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XR522
- Brand
- Siemens
- Series
- SCALANCE XR522
