- Part number
- 6GK5528-0AA00-2AR2
- Model no
- XR528-6M
Siemens has announced the end of 6GK5528-0AA00-2AR2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.
- ATEX

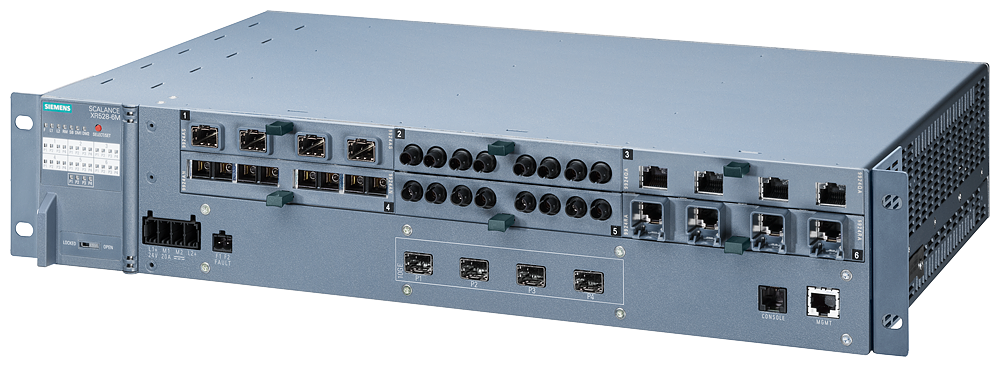

SCALANCE XR528Siemens 6GK5528-0AA00-2AR2 SCALANCE XR528-6M 6-Slot Modular PoE 10G Front 24V DC Industrial Ethernet Switch
SCALANCE XR528-6M modular switch, 4x SFP+ 10G + 6 media slots, 180W PoE, 24V DC, front ports
Description
About the XR528-6M
About the XR528-6M
The Siemens 6GK5528-0AA00-2AR2 SCALANCE XR528-6M is a modular managed Industrial Ethernet switch with 4 fixed SFP+ 10 Gbit/s uplinks and 6 media module slots for up to 24 further electrical, PoE or optical ports, powered from a 24 V DC supply and rated up to 180 W of Power-over-Ethernet. Ports face the front of the 2U 19-inch rack enclosure, and it includes an integrated redundancy manager for PROFINET ring topologies.
Certifications & Standards
- CE
- KC
- RCM
- ATEX
- UKEX
- IECEx
- UL HazLoc
- CCC
- FM
- RoHS
Selection Notes
The 6 media module slots let this unit mix electrical, PoE and optical ports on one chassis instead of forcing a fixed port layout, so a panel builder can populate only the media types a project needs and add modules later. The 180 W PoE budget across up to 12 ports covers IP cameras or wireless access points fed straight from the switch, no separate injector. Layer 3 routing is prepared but inactive until a KEY-PLUG XR-500 is fitted. This is the front-port variant; choose the rear-port version where cabinets are cabled from behind. PRP support and the ATEX/IECEx approvals make it suitable for zero-loss redundant networks in hazardous-area installations.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR528-6M |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | RJ45 |
|---|---|
| number of electrical connections: for Power-over-Ethernet / for network components or terminal equipment | 12 |
| number of electrical connections: for SFP+ | 4 |
Show all 168 specifications ↓ Show less ↑162 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / routing, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, For use in hazardous locations Maritime application, Logistics.
Identification 10
| Part number | 6GK5528-0AA00-2AR2 |
|---|---|
| Type designation | XR528-6M |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4019169230971 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 5
| number of 100 Mbit/s ST(BFOC) ports: for multimode | 24 |
|---|---|
| number of 100 Mbit/s ST(BFOC) ports: for single mode (LD) | 24 |
| number of 1000 Mbit/s SC ports: for multimode | 24 |
| number of 1000 Mbit/s SC ports: for single mode (LD) | 24 |
| number of electrical connections: for SFP | 4 |
Interfaces / other 11
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for media module | 6 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for management purposes | RJ45 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| product feature / hot-swappable interface modules | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 12
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| supplied active power / of PSE / with PoE: per port / maximum | 30 W |
| supplied active power / of PSE / with PoE: total / maximum | 180 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 22 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 11.5 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 15 A / 125 V |
Ambient conditions 6
| ambient temperature: during operation | 0 ... 60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +70 °C |
| ambient temperature: during transport | -40 ... +70 °C |
| ambient temperature: note | Operation with integral fan, replaceable |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 2 |
| width | 449 mm |
| height | 87.2 mm |
| depth | 305 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
| type of cable outlet | Cable outlet at front |
Product features, product functions, product components / general 1
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| telegram length / for Ethernet / maximum | 9216 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | Yes |
| product function: VLAN - IP-based | Yes |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 255 |
| number of VLANs - dynamic / maximum | 255 |
Product functions / DHCP 4
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 11
| service / routing / note | IP routing in combination with KEY-PLUG XR-500 |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | Yes |
| product function: dynamic IP routing | Yes |
| product function: dynamic IP routing IPv6 | Yes |
| protocol / is supported: RIPv2 | Yes |
| protocol / is supported: RIPnG for IPv6 | Yes |
| protocol / is supported: OSPFv2 | Yes |
| protocol / is supported: OSPFv3 for IPv6 | Yes |
| protocol / is supported: VRRP | Yes |
| protocol / is supported: VRRP for IPv6 | Yes |
Product functions / redundancy 13
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 4
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| type of time synchronization | IEEE 1588 |
Standards, specifications, approvals 6
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1, CSA C22.2 No. 60950-1-03 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 742.98 kg |
| global warming potential [CO2 eq]: during manufacturing | 132 kg |
| global warming potential [CO2 eq]: during operation | 610.39 kg |
| global warming potential [CO2 eq]: after end of life | 0.59 kg |
Product functions / general 1
| warranty period | 5 a |
|---|
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 132 kg |
|---|
For use in hazardous locations Maritime application 2
| FM CCC-Ex | Industrial Commu- |
|---|---|
| Maritime application | nication |
Logistics 7
| Net weight | 8.92 kg |
|---|---|
| Package dimensions | 375 × 446 × 44 mm |
| Country of origin | DE |
| Shipping weight | 9.92 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5528-0AA00-2AR2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- ATEX
- CE marking
- KC approval
- Regulatory Compliance Mark (RCM)
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
- FM registration
- RoHS conformity
Quick answers
Questions about the XR528-6M
Which supply voltage is XR528-6M rated for?
The rated operational voltage of XR528-6M is 24 V AC.
What is the HS code of XR528-6M for customs?
The tariff (HS) code on file for XR528-6M is 85176200.
What is the EAN of XR528-6M?
The EAN (GTIN) of XR528-6M is 4019169230971.
Where does XR528-6M ship from, and how fast?
XR528-6M ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
