- Part number
- 6GK5526-8GS00-3AR2
- Model no
- XR526-8C
Siemens has announced the end of 6GK5526-8GS00-3AR2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

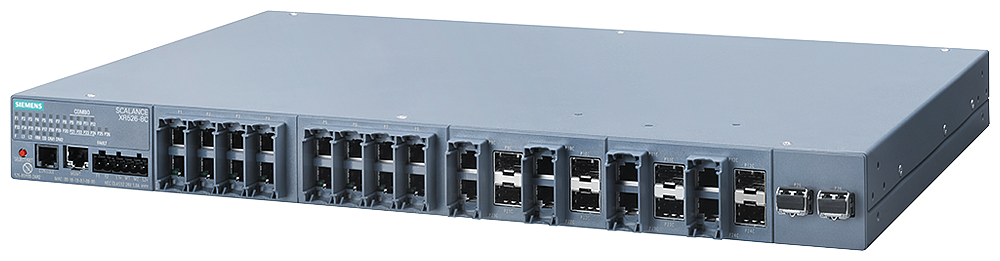

SCALANCE XR526Siemens 6GK5526-8GS00-3AR2 SCALANCE XR526-8C 26-Port L3-Ready 10G Uplink 230V AC Industrial Ethernet Switch
SCALANCE XR526-8C managed switch, 24x RJ45 + 2x SFP+ 10G, L3-ready, 230V AC
Description
About the XR526-8C
About the XR526-8C
The Siemens 6GK5526-8GS00-3AR2 SCALANCE XR526-8C is a Layer 3-ready managed Industrial Ethernet switch with 24 RJ45 10/100/1000 Mbit/s ports plus 2 SFP+ 10 Gbit/s uplinks (26 ports total), powered from a single 230 V AC supply. It operates as a PROFINET IO device with conformity class B diagnostics and MRP/HRP ring redundancy in a 1U 19-inch rack enclosure rated IP20.
Certifications & Standards
- CE
- UKCA
- KC
- RCM
- RoHS
Selection Notes
This is the 230 V AC single-supply version of the XR526-8C with Layer 3 routing held in reserve behind a KEY-PLUG XR-500 license; budget for the key if the site needs inter-VLAN routing rather than pure switching. The 2x SFP+ 10 Gbit/s uplinks carry backbone traffic from several access switches without becoming the bottleneck. Pick the 24 V DC variant for a DC-bus cabinet, or the dual-supply AC variant where the switch must survive a single circuit loss.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XR526-8C |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 5
| number of electrical connections: for network components or terminal equipment | 24; RJ45 |
|---|---|
| number of 100 Mbit/s ST(BFOC) ports: for multimode | 0 |
| number of 100 Mbit/s SC ports: for multimode | 0 |
| number of electrical connections: for SFP | 8 |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 8 |
Show all 154 specifications ↓ Show less ↑146 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / routing, Product functions / redundancy, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Environment General Product Approval, Tion ates/Test Report, Logistics.
Identification 10
| Part number | 6GK5526-8GS00-3AR2 |
|---|---|
| Type designation | XR526-8C |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622246856 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 1
| number of electrical connections: for SFP | 10 |
|---|
Interfaces / other 10
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 1 |
| type of electrical connection: for operator console | RJ11 |
| type of electrical connection: for management purposes | RJ45 |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 4-pole terminal block |
| product feature / hot-swappable interface modules | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 10
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | AC |
| supply voltage / 1 / rated value | 230 V |
| power loss [W] / 1 / rated value | 36 W |
| supply voltage / 1 / voltage range | 90 ... 264 |
| consumed current / 1 / maximum | 1.5 A |
| type of electrical connection / 1 / for power supply | 4-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 3,15 A / 250 V |
Ambient conditions 5
| ambient temperature: during operation | 0 ... 50 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 11
| design | 19-inch rack |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 449 mm |
| height | 44 mm |
| depth | 305 mm |
| fastening method: 19-inch installation | Yes |
| fastening method: 35 mm DIN-rail mounting | No |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | No |
| fastening method: S7-1500 rail mounting | No |
| type of cable outlet | Cable outlet at front |
Product features, product functions, product components / general 1
| cascading in cases of star topology | any (depending only on signal propagation time) |
|---|
Product functions / management, configuration, engineering 28
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| telegram length / for Ethernet / maximum | 9216 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 6
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | Yes |
| product function: VLAN - IP-based | Yes |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 255 |
| number of VLANs - dynamic / maximum | 255 |
Product functions / DHCP 4
| product function: DHCP client | Yes |
|---|---|
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 11
| service / routing / note | IP routing in combination with KEY-PLUG XR-500 |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | Yes |
| product function: dynamic IP routing | Yes |
| product function: dynamic IP routing IPv6 | Yes |
| protocol / is supported: RIPv2 | Yes |
| protocol / is supported: RIPnG for IPv6 | Yes |
| protocol / is supported: OSPFv2 | Yes |
| protocol / is supported: OSPFv3 for IPv6 | Yes |
| protocol / is supported: VRRP | Yes |
| protocol / is supported: VRRP for IPv6 | Yes |
Product functions / redundancy 11
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: passive listening | Yes |
| protocol / is supported: LACP | Yes |
Product functions / security 4
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
Product functions / time 3
| product function: SICLOCK support | Yes |
|---|---|
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1; CSA C22.2 No. 213-M1987 |
Standards, specifications, approvals / other 3
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 564.78 kg |
| global warming potential [CO2 eq]: during manufacturing | 207 kg |
| global warming potential [CO2 eq]: during operation | 356.85 kg |
| global warming potential [CO2 eq]: after end of life | 0.93 kg |
Product functions / general 1
| warranty period | 5 a |
|---|
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 207 kg |
|---|
Environment General Product Approval 1
| Declaration of Con- China RoHS | formity |
|---|
Tion ates/Test Report 1
| Maritime application | NK / Nippon Kaiji Ky- okai |
|---|
Logistics 7
| Net weight | 5.34 kg |
|---|---|
| Package dimensions | 375 × 446 × 44 mm |
| Country of origin | DE |
| Shipping weight | 6.34 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5526-8GS00-3AR2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- KC approval
- Regulatory Compliance Mark (RCM)
- RoHS conformity
- Environmental Product Declaration
Quick answers
Questions about the XR526-8C
Which supply voltage is XR526-8C rated for?
The rated operational voltage of XR526-8C is 230 V AC.
What is the HS code of XR526-8C for customs?
The tariff (HS) code on file for XR526-8C is 85176200.
What is the EAN of XR526-8C?
The EAN (GTIN) of XR526-8C is 4047622246856.
Where does XR526-8C ship from, and how fast?
XR526-8C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
