Siemens 6GK5526-8GR00-3AR2 SCALANCE XR526-8C 26-Port L3 10G Uplink 230V AC Industrial Ethernet Switch

% $-10,653.89

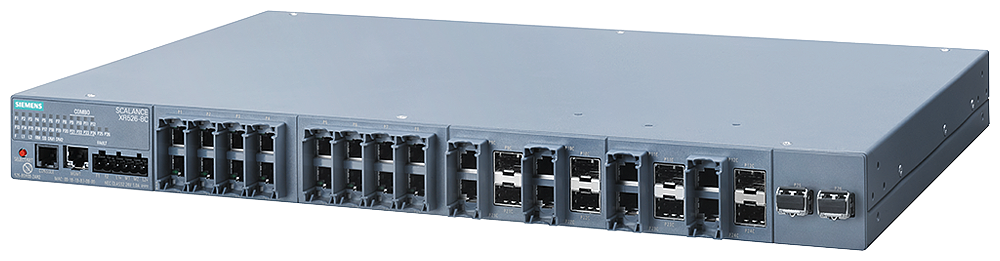

Siemens 6GK5526-8GR00-3AR2 SCALANCE XR526-8C Industrial Ethernet Switch - 26-port Layer 3 10G 230V AC
Siemens 6GK5526-8GR00-3AR2 SCALANCE XR526-8C Industrial Ethernet Switch - 26-port Layer 3 10G 230V AC

Siemens 6GK5526-8GR00-3AR2 SCALANCE XR526-8C 26-Port L3 10G Uplink 230V AC Industrial Ethernet Switch

Brand: Siemens
Reference No: 6GK5526-8GR00-3AR2
Catalog No: 6GK5526-8GR00-3AR2
Series: SCALANCE XR526
Tariff Code (HS): 85176200
Rated Voltage: 230
Communication: PROFINET IO, Ethernet 10/100/1000/10000 Mbit/s, RSTP, MRP, HRP, VRRP, SNMP v1/v2/v3
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$10,653.89

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK5526-8GR00-3AR2 SCALANCE XR526-8C is a managed Industrial Ethernet switch with integrated Layer 3 routing, 24 RJ45 10/100/1000 Mbit/s ports plus 2 SFP+ 10 Gbit/s uplinks (26 ports total), powered from a single 230 V AC supply. It operates as a PROFINET IO device with conformity class B diagnostics, MRP/HRP ring redundancy and VRRP routing in a 1U 19-inch rack enclosure rated IP20.

Technical Specifications

SKU / Order No (MLFB) 6GK5526-8GR00-3AR2
Brand Siemens
Series SCALANCE XR526
Product Type Designation XR526-8C
Layer 3 Routing Integrated, no license required
Transfer Rate 10/100/1000 Mbit/s; 10 Gbit/s on SFP+ uplinks
RJ45 Ports 24 (10/100/1000 Mbit/s)
Combo Ports (RJ45/SFP) 8
SFP+ Ports (10 Gbit/s) 2
Total Usable Ports 26
Supply Voltage 230 V AC (90-264 V range)
Power Loss 36 W
Max. Current Consumption 1.5 A
Input Fuse 3.15 A / 250 V
Redundant Supply Input Terminal present (this variant ships with a single supply)
Operating Temperature 0...+50 °C
Storage/Transport Temperature -40...+85 °C
Relative Humidity up to 95% at 25 °C, non-condensing
Protection Class IP20
Enclosure 19-inch rack, 1U
Dimensions (W x H x D) 449 x 44 x 305 mm
Net Weight 4.4 kg
Cable Outlet Front
Signaling Contact 2-pole terminal block, 24 V DC / 0.1 A max
Management CLI, web-based management, SNMP v1/v2/v3 with MIB support, configuration with STEP 7, port and multiport mirroring, CoS
Supported Protocols Telnet, TFTP, FTP, BOOTP, GMRP, DCP, LLDP, IGMP snooping/querier
VLAN Port-based, protocol-based, IP-based; up to 255 VLANs (255 dynamic)
Redundancy MRP with redundancy manager, MRP-I (LC mode), HRP with redundancy manager and standby, RSTP/RSTP+/MSTP, LACP
Routing Protocols RIPv2, RIPng, OSPFv2, OSPFv3, VRRP, VRRP for IPv6 (Layer 3 integrated, no license required)
Security IEEE 802.1x (RADIUS), SSH, broadcast/multicast/unicast limiter, broadcast blocking
Diagnostics Port diagnostics, packet size and type statistics, error statistics, SysLog
Time Synchronization NTP, SNTP, SICLOCK support
PROFINET IO device, conformity class B, max. telegram length 9216 byte
EMC Interference Emission EN 61000-6-4 (Class A)
Country of Origin Germany
EAN 4047622246917

Certifications & Standards

  • CE
  • UKCA
  • KC
  • RCM
  • RoHS

Selection Notes

Layer 3 routing is built in on this XR526-8C, so RIPv2, OSPFv2 and VRRP run without a separate license. The 2x SFP+ 10 Gbit/s uplinks let it aggregate several 24-port access switches into a backbone ring without the uplink becoming the bottleneck. This is the 230 V AC single-supply version; pick the 24 V DC variant for cabinets running on a DC bus, or the dual-supply AC variant where the switch must stay up through a single circuit loss.

Technical Details

Short Description
SCALANCE XR526-8C managed switch, 24x RJ45 + 2x SFP+ 10G, Layer 3 integrated, 230V AC
Rated Voltage (VAC)
230
Mounting Type
19-inch rack
Protection Type
IP20
Catalog No
6GK5526-8GR00-3AR2
Standards
CE marking, UKCA marking, KC approval, Regulatory Compliance Mark (RCM), RoHS conformity, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6GK5526-8GR00-3AR2
Tariff Code
85176200
