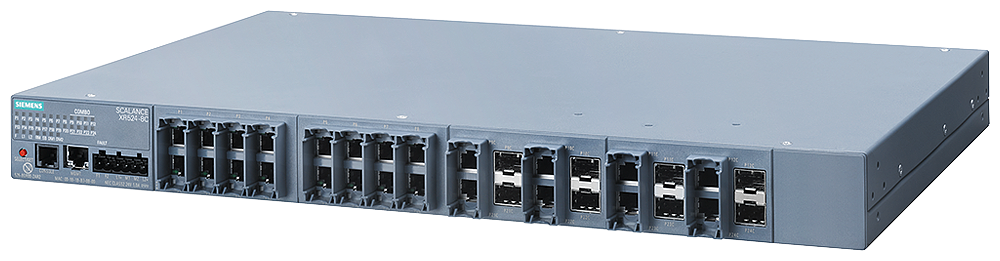

Siemens 6GK5524-8GS00-4AR2 SCALANCE XR524-8C 24-Port L3-Ready 2x230V AC Industrial Ethernet Switch

The Siemens 6GK5524-8GS00-4AR2 SCALANCE XR524-8C is a Layer 3-ready managed Industrial Ethernet switch with 24 RJ45 10/100/1000 Mbit/s ports, including 8 combo ports for SFP transceivers, powered from a redundant 2x 230 V AC supply. It runs as a PROFINET IO device with conformity class B diagnostics and supports office-grade redundancy and management protocols (RSTP, VLAN, IGMP) in a 1U 19-inch rack enclosure rated IP20.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• KC
• RCM
• RoHS

Selection Notes

This is the dual-supply variant of the XR524-8C: two independent 230 V AC feeds, so the switch keeps running if either circuit is lost. Choose it over the single-supply variant whenever the switch carries a PROFINET line that cannot tolerate a power-related outage; pick the single-supply version where the cabinet only has one AC circuit available. Layer 3 routing (RIPv2, OSPFv2, VRRP) is present in firmware but stays inactive until a KEY-PLUG XR-500 is fitted.
