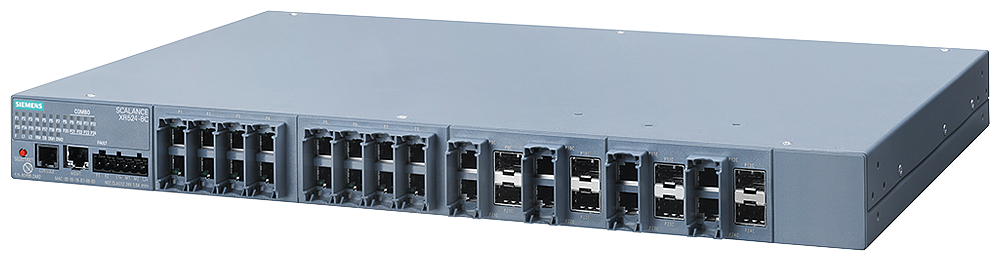

Siemens 6GK5524-8GR00-3AR2 SCALANCE XR524-8C 230V AC 24+8 Port Layer 3 Ethernet Switch

The Siemens 6GK5524-8GR00-3AR2 SCALANCE XR524-8C is a 19-inch rack-mount managed Industrial Ethernet switch with integrated Layer 3 routing, powered from a single 230 V AC feed (90-264 V range). It has 24x 10/100/1000 Mbit/s RJ45 ports plus 8 combo ports switchable to SFP, for up to 24 ports in use, with redundancy protocols and SSH.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• KC
• RCM
• RoHS
• EPD

Selection Notes

This single-feed 230 V AC variant covers a cabinet run on standard mains rather than 24 V DC, drawing only 0.6 A at 230 V for the same 24 W rated power loss as the DC-fed 2AR2. Its -25 to +60 °C operating range is narrower on the cold side than the DC variant's -40 °C floor, a consequence of the AC power supply design, so confirm ambient temperature before specifying it for an unheated outdoor enclosure. Choose the 4AR2 sibling instead when the rack needs a second, redundant 230 V feed for supply-side fault tolerance; choose the 2AR2 or 8GS00-2AR2 when 24 V DC distribution is already in place.
