- Part number
- 6GK5428-4TR00-2AC2
- Model no
- XC424-4

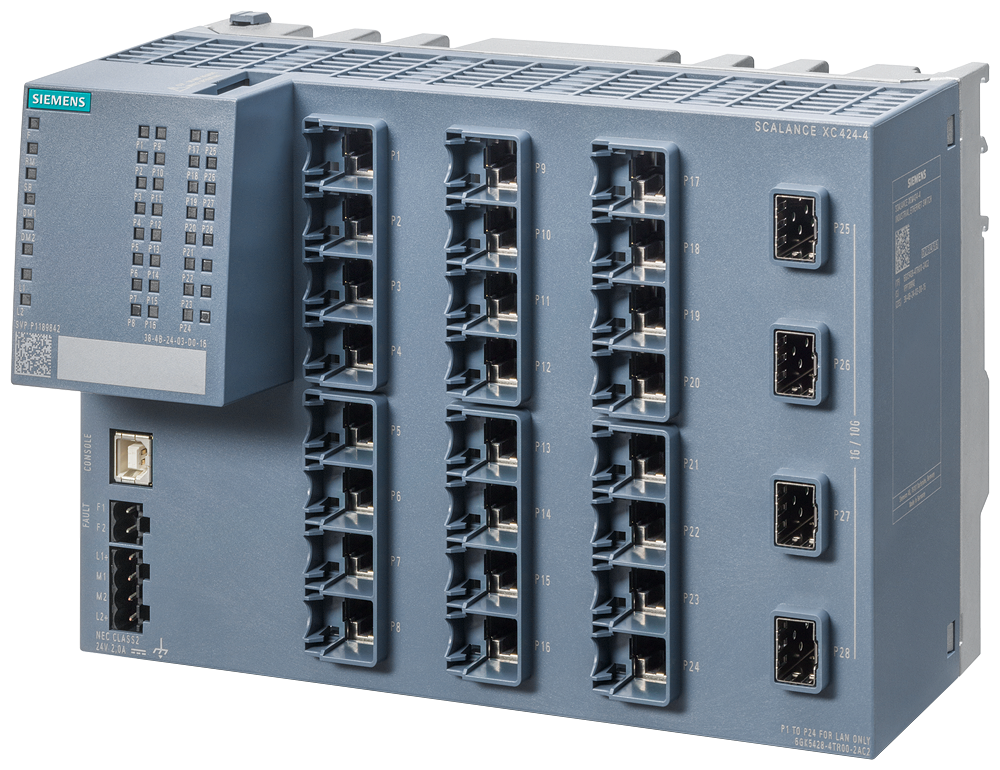

SCALANCE XC424Siemens 6GK5428-4TR00-2AC2 SCALANCE XC424-4 24-Port RJ45 4-Port SFP+ Layer 3 Ethernet Switch
Siemens SCALANCE XC424-4 managed Layer 3 switch - 24 RJ45 + 4 SFP+ 1G/10G ports, PROFINET IO, fanless.
Description
About the XC424-4
About the XC424-4
The Siemens 6GK5428-4TR00-2AC2 SCALANCE XC424-4 is a managed Layer 3 Industrial Ethernet switch with 24x 10/100/1000 Mbit/s RJ45 ports and 4x SFP+ ports usable at 1 or 10 Gbit/s. It is a PROFINET IO device with integrated static and dynamic IP routing, redundancy protocols, VLAN, and an error signaling contact with select/set button.
Certifications & Standards
- CE
- UKCA
- KC
- RCM
- CCC
- EPD
Selection Notes
The XC424-4 carries the same base-unit Layer 3 routing (RIPv2, OSPFv2, VRRP) and HSR/PRP redundancy as the XC416-8, but trades 4 of the SFP+ slots for 8 extra RJ45 ports, so it suits an access-layer cell with more copper-connected field devices than fiber runs. Choose it over the XC416-8 when edge-port count matters more than uplink fiber headroom, and over the XC432 when even a small amount of 10 Gbit/s fiber uplink capacity is needed. With only 4 SFP+ ports, reserve them for the ring or backbone uplink and route the rest of the cell over the 24 fixed RJ45 ports.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | XC424-4 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 24; RJ45 with securing collar |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 24 |
| number of electrical connections: for SFP+ | 4; 1000 Mbps and 10000 Mbps SFP usable |
Show all 178 specifications ↓ Show less ↑172 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product features, product functions, product components / general, Product functions / management, configuration, engineering, Product functions / diagnostics, Product functions / VLAN, Product functions / DHCP, Product functions / routing, Product functions / redundancy, System modification during operation, Product functions / security, Product functions / time, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / Environmental Product Declaration, Product functions / general, Approvals / Certificates, Logistics.
Identification 10
| Part number | 6GK5428-4TR00-2AC2 |
|---|---|
| Type designation | XC424-4 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 4047623058823 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 9
| number of electrical connections: for operator console | 1 |
|---|---|
| number of electrical connections: for signaling contact | 1 |
| number of electrical connections: for power supply | 2 |
| type of electrical connection: for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection: for signaling contact | 2-pole terminal block |
| type of electrical connection: for power supply | 2 x 2-pole terminal block |
| design of the removable storage: CLP | Yes |
| operating voltage / of the signaling contacts: at DC / rated value | 24 V |
| operational current / of the signaling contacts: at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss 12
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 43.2 W |
| power loss [W] / at DC / at 24 V / typical | 25.92 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 1.8 A |
| consumed current / at DC / at 24 V / typical | 1.08 A |
| type of electrical connection / 1 / for power supply | 2 x 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 10 A / 250 V |
Ambient conditions 6
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | compact |
|---|---|
| width | 210 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method: 19-inch installation | No |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | Yes |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product features, product functions, product components / general 5
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
|---|---|
| number of automatically learnable MAC addresses | 16382 |
| number of QoS queues / per port | 8 |
| product function: QoS according to IEEE 802.1Q | Yes |
| product feature: Store & Forward switching method | Yes |
Product functions / management, configuration, engineering 32
| product function: CLI | Yes |
|---|---|
| product function: web-based management | Yes |
| product function: MIB support | Yes |
| product function: TRAPs via email | Yes |
| product function: configuration with STEP 7 | Yes |
| product function: RMON | Yes |
| product function: port mirroring | Yes |
| product function: multiport mirroring | Yes |
| product function: CoS | Yes |
| product function: PROFINET IO diagnosis | Yes |
| product function: switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported: Telnet | Yes |
| protocol / is supported: HTTP | Yes |
| protocol / is supported: HTTPS | Yes |
| protocol / is supported: TFTP | Yes |
| protocol / is supported: FTP | Yes |
| protocol / is supported: SFTP | Yes |
| protocol / is supported: BOOTP | Yes |
| protocol / is supported: NETCONF | No |
| protocol / is supported: GMRP | Yes |
| protocol / is supported: DCP | Yes |
| protocol / is supported: LLDP | Yes |
| protocol / is supported: EtherNet/IP | Yes |
| protocol / is supported: SNMP v1 | Yes |
| protocol / is supported: SNMP v2 | Yes |
| protocol / is supported: SNMP v3 | Yes |
| protocol / is supported: IGMP (snooping/querier) | Yes |
| identification & maintenance function: I&M0 - device-specific information | Yes |
| identification & maintenance function: I&M1 - higher level designation/location designation | Yes |
Product functions / diagnostics 5
| product function: port diagnostics | Yes |
|---|---|
| product function: statistics Packet Size | Yes |
| product function: statistics packet type | Yes |
| product function: error statistics | Yes |
| product function: SysLog | Yes |
Product functions / VLAN 8
| product function: VLAN - port based | Yes |
|---|---|
| product function: VLAN - protocol-based | No |
| product function: VLAN - IP-based | No |
| product function: VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| product function / VXLAN according to RFC 7348 | Yes |
Product functions / DHCP 5
| product function: DHCP server | Yes |
|---|---|
| product function: DHCP client | Yes |
| product function: DHCP Option 82 | Yes |
| product function: DHCP Option 66 | Yes |
| product function: DHCP Option 67 | Yes |
Product functions / routing 11
| service / routing / note | IP routing integrated |
|---|---|
| product function: static IP routing | Yes |
| product function: static IP routing IPv6 | No |
| product function: dynamic IP routing | Yes |
| product function: dynamic IP routing IPv6 | No |
| protocol / is supported: RIPv2 | Yes |
| protocol / is supported: RIPnG for IPv6 | No |
| protocol / is supported: OSPFv2 | Yes |
| protocol / is supported: OSPFv3 for IPv6 | No |
| protocol / is supported: VRRP | Yes |
| protocol / is supported: VRRP for IPv6 | No |
Product functions / redundancy 20
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
|---|---|
| product function: media redundancy protocol (MRP) with redundancy manager | Yes |
| product function: Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function: of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function: ring redundancy | Yes |
| product function: high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function: high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function: redundancy procedure STP | Yes |
| product function: redundancy procedure RSTP | Yes |
| product function: redundancy procedure MSTP | Yes |
| product function: High-availability Seamless Redundancy (HSR) | Yes |
| product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function: Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes |
| product function: passive listening | Yes |
| protocol / is supported: STP/RSTP | Yes |
| protocol / is supported: STP | Yes |
| protocol / is supported: RSTP | Yes |
| protocol / is supported: MSTP | Yes |
| protocol / is supported: RSTP big network support | Yes |
| protocol / is supported: LACP | Yes |
System modification during operation 1
| product function / configuration in RUN via CiR/H-CiR | Yes |
|---|
Product functions / security 5
| product function: IEEE 802.1x (radius) | Yes |
|---|---|
| product function: broadcast/multicast/unicast limiter | Yes |
| product function: broadcast blocking | Yes |
| protocol / is supported: SSH | Yes |
| protocol / is supported: SSL | Yes |
Product functions / time 8
| product function: SICLOCK support | Yes |
|---|---|
| product function: NTP-client | Yes |
| product function: SNTP client | Yes |
| product function: IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported: NTP | Yes |
| protocol / is supported: SNTP | Yes |
| accuracy / at IEEE 1588 v2: not less than | 100 ns |
| accuracy / at IEEE 1588 v2: typical | 50 ns |
Standards, specifications, approvals 7
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 60950-1; CSA C22.2 No. 213-M1987 |
Standards, specifications, approvals / hazardous environments 1
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
|---|
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50125-3 | Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used --> only for variants with optical connections; In addition, depending on the installation position, the derating according to the manual must be taken into account; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual. |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
Standards, specifications, approvals / Environmental Product Declaration 5
| Environmental Product Declaration | Yes |
|---|---|
| global warming potential [CO2 eq]: total | 1244.3 kg |
| global warming potential [CO2 eq]: during manufacturing | 122.74 kg |
| global warming potential [CO2 eq]: during operation | 1120.64 kg |
| global warming potential [CO2 eq]: after end of life | 0.91 kg |
Product functions / general 2
| warranty period | 5 a |
|---|---|
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Approvals / Certificates 1
| Environmental Product Declaration: global warming potential [CO2 eq] / during manufacturing | 122.74 kg |
|---|
Logistics 7
| Net weight | 0.799 kg |
|---|---|
| Package dimensions | 205 × 205 × 245 mm |
| Country of origin | DE |
| Shipping weight | 1.299 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5428-4TR00-2AC2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- KC approval
- Regulatory Compliance Mark (RCM)
- CCC / for hazardous zone according to GB standard
- Environmental Product Declaration
Quick answers
Questions about the XC424-4
What is the rated current of XC424-4?
The rated current of XC424-4 is 1.8 A.
Which supply voltage is XC424-4 rated for?
The rated operational voltage of XC424-4 is 24 V AC.
What is the HS code of XC424-4 for customs?
The tariff (HS) code on file for XC424-4 is 85176200.
What is the EAN of XC424-4?
The EAN (GTIN) of XC424-4 is 4047623058823.
Where does XC424-4 ship from, and how fast?
XC424-4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Siemens SCALANCE XC424
- Brand
- Siemens
- Series
- SCALANCE XC424
