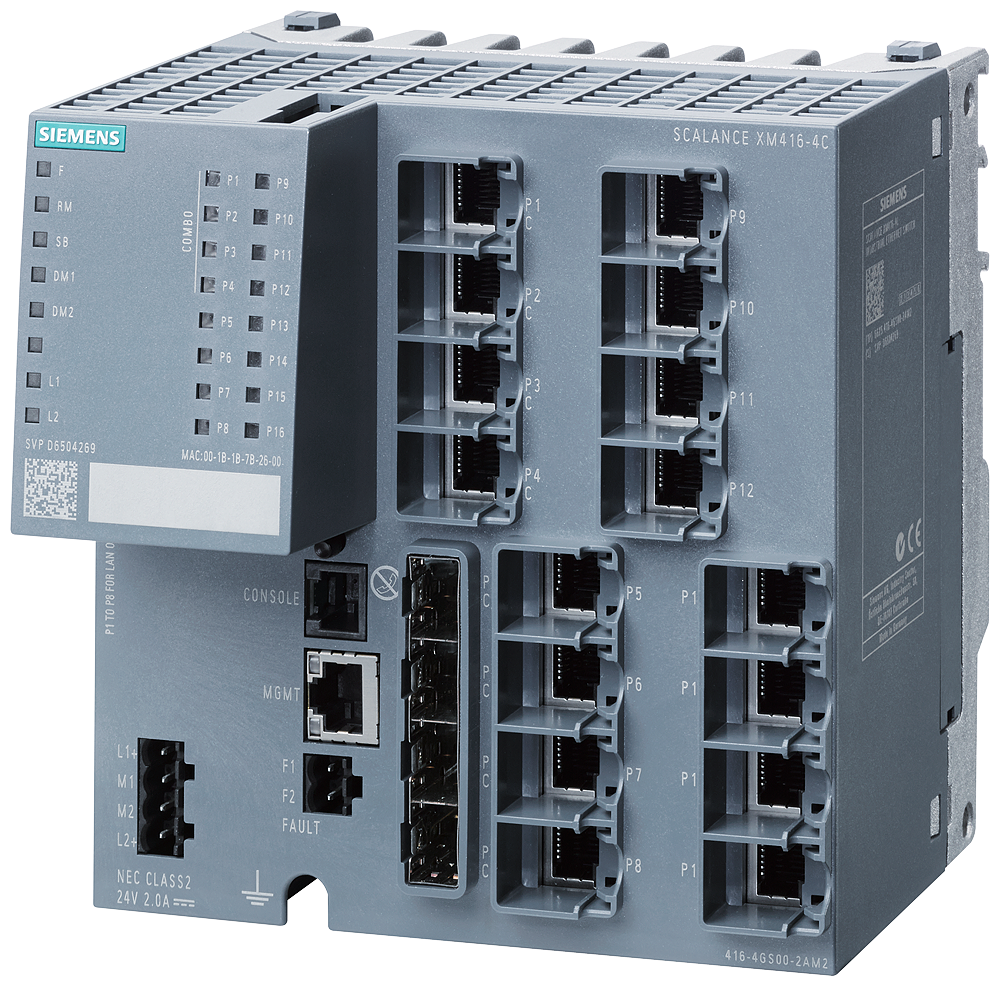

Siemens 6GK5416-4GS00-2AM2 SCALANCE XM416-4C 16+4 Port Modular Industrial Ethernet Switch

The Siemens 6GK5416-4GS00-2AM2 SCALANCE XM416-4C is a managed modular Industrial Ethernet switch with 16x 10/100/1000 Mbit/s RJ45 ports and 4 combo ports switchable to 100/1000 Mbit/s SFP, expandable to 24 ports. It is a PROFINET IO device with redundancy protocols, VLAN, IGMP, and Layer 3 routing available through a KEY-PLUG.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULhazloc
• CCC

Selection Notes

The XM416-4C gives up 8 combo positions for a wider set of fixed copper ports - 16 RJ45 versus the XM408-8C's 8 - which suits a cell dominated by field devices on twisted-pair drops rather than fiber uplinks. The same up-to-24-port expansion path and KEY-PLUG-gated Layer 3 routing apply, so the choice between the two comes down to how many ports need to be fiber-ready from day one. With only 4 combo ports, reserve them for the ring uplinks or SFP-fiber backbone links and route the rest of the cell over the 16 fixed RJ45 ports.
