- Part number
- 6GK5408-0PA00-8AP2
- Model no
- PE408PoE
Siemens has announced the end of 6GK5408-0PA00-8AP2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

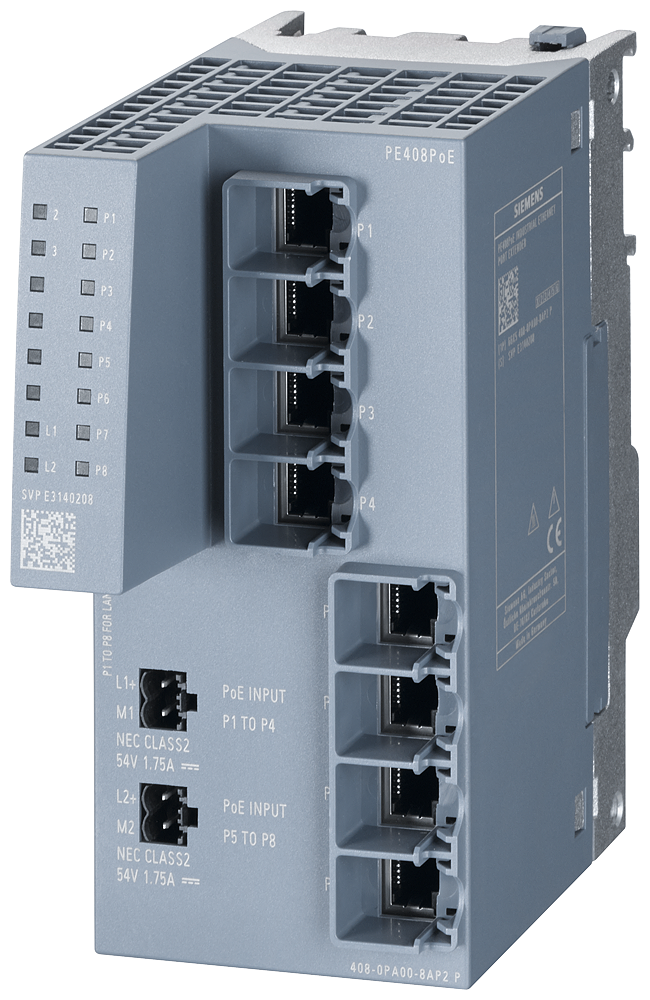

SCALANCE XMSiemens 6GK5408-0PA00-8AP2 SCALANCE XM-400 PE408PoE 8-Port PoE Extender Module
Siemens PE408PoE port extender - 8x PoE ports (30 W/port, 180 W total) for SCALANCE XM-400, IEEE 802.3at.
Description
About the PE408PoE
About the PE408PoE
The Siemens 6GK5408-0PA00-8AP2 PE408PoE port extender adds eight 10/100/1000 Mbit/s RJ45 ports with PoE according to IEEE 802.3at to a SCALANCE XM-400 managed modular Ethernet switch. Each of the eight ports delivers up to 30 W, for 180 W total, and PoE operation needs a separate power supply connected through the extender's own 2-pole terminal block.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
The 6GK5408-0PA00-8AP2 only adds ports to a SCALANCE XM-400 base unit; it does not switch traffic on its own and needs a chassis with a free extender expansion interface, of which the base unit offers two. Choose it over a non-PoE extender when the added segment must power IP cameras, WLAN access points, or field devices at IEEE 802.3at class 4, up to 30 W per port and 180 W combined. Because PoE draws its own 54 V feed through a separate 2-pole terminal block behind an F 4 A / 60 V fuse, budget that supply independently from the XM-400 chassis' own power design.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | PE408PoE |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 3
| number of electrical connections: for network components or terminal equipment | 8 |
|---|---|
| number of electrical connections: for Power-over-Ethernet / for network components or terminal equipment | 8 |
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar / with PoE | 8 |
Show all 84 specifications ↓ Show less ↑78 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Product functions / general, Declaration of Con- China RoHS Manufacturer Declara-, For use in hazardous locations Test Certificates Maritime application, Logistics.
Identification 10
| Part number | 6GK5408-0PA00-8AP2 |
|---|---|
| Type designation | PE408PoE |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622173985 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 3
| type of electrical connection: for power supply | 2-pole terminal block |
|---|---|
| number of extender expansion interfaces | 2 |
| product feature / hot-swappable interface modules | Yes |
Supply voltage, current consumption, power loss 11
| product component / connection for redundant voltage supply | Yes |
|---|---|
| supplied active power / of PSE / with PoE: per port / maximum | 30 W |
| supplied active power / of PSE / with PoE: total / maximum | 180 W |
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 54 V |
| power loss [W] / 1 / rated value | 4.8 W |
| supply voltage / 1 / voltage range | 51.3 ... 56.7 |
| consumed current / 1 / maximum | 0.2 A |
| type of electrical connection / 1 / for power supply | 2-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | F 4 A / 60 V |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | SIMATIC S7-1500 device design |
|---|---|
| width | 70 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method: 19-inch installation | No |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product functions / management, configuration, engineering 1
| PROFINET conformity class | B |
|---|
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 3
| certificate of suitability: railway application in accordance with EN 50121-4 | Yes |
|---|---|
| certificate of suitability: RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Product functions / general 2
| warranty period | 5 a |
|---|---|
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Declaration of Con- China RoHS Manufacturer Declara- 2
| formity tion | For use in hazard- |
|---|---|
| General Product Approval EMV China RoHS | ous locations |
For use in hazardous locations Test Certificates Maritime application 1
| FM CCC-Ex Type Test Certific- | ates/Test Report |
|---|
Logistics 7
| Net weight | 0.832 kg |
|---|---|
| Package dimensions | 125 × 210 × 147 mm |
| Country of origin | DE |
| Shipping weight | 1.332 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5408-0PA00-8AP2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the PE408PoE
What is the rated current of PE408PoE?
The rated current of PE408PoE is 0.2 A.
Which supply voltage is PE408PoE rated for?
The rated operational voltage of PE408PoE is 54 V AC.
What is the HS code of PE408PoE for customs?
The tariff (HS) code on file for PE408PoE is 85176200.
What is the EAN of PE408PoE?
The EAN (GTIN) of PE408PoE is 4047622173985.
Where does PE408PoE ship from, and how fast?
PE408PoE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
