- Part number
- 6GK5408-0GA00-8AP2
- Model no
- PE408
Siemens has announced the end of 6GK5408-0GA00-8AP2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

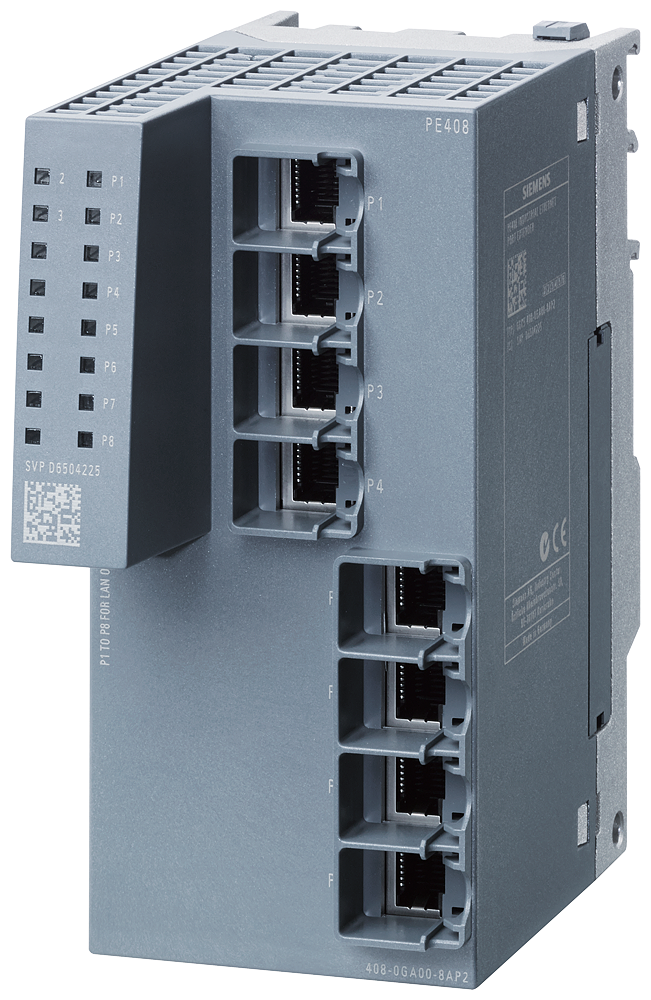

SCALANCE XMSiemens 6GK5408-0GA00-8AP2 PE408 8-Port RJ45 Port Extender for SCALANCE XM-400 Switch
Siemens PE408 hot-swappable extender module, adds 8 RJ45 ports to a SCALANCE XM-400 switch.
Description
About the PE408
About the PE408
The Siemens PE408 (6GK5408-0GA00-8AP2) is a hot-swappable port extender that adds 8 RJ45 ports running at 10/100/1000 Mbit/s to a SCALANCE XM-400 managed modular Ethernet switch. It mounts on a 35 mm DIN rail or S7-300/S7-1500 rail and draws its power from the base switch through 2 extender interfaces, weighing 0.6 kg.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
This is the copper (RJ45) version of the XM-400 port extender; the PE400-8SFP sibling adds 8 fiber SFP ports instead. Pick the PE408 for standard copper drops to field devices, and the PE400-8SFP when the run needs fiber for distance or interference reasons. Its wider operating range (-40 to +70 degrees C) and higher power draw (4.8 W versus 1.7 W) reflect the added RJ45 PHY circuitry compared with the SFP variant.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | PE408 |
Transfer rate 1
| transfer rate | 10, 100, 1000 Mbit/s |
|---|
Interfaces / for communication / integrated 2
| number of electrical connections: for network components or terminal equipment | 8 |
|---|---|
| number of 10/100/1000 Mbit/s RJ45 ports: with securing collar | 8 |
Show all 71 specifications ↓ Show less ↑66 more values in Identification, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Product functions / general, Logistics.
Identification 10
| Part number | 6GK5408-0GA00-8AP2 |
|---|---|
| Type designation | PE408 |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622140994 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / other 2
| number of extender expansion interfaces | 2 |
|---|---|
| product feature / hot-swappable interface modules | Yes |
Supply voltage, current consumption, power loss 3
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage: power loss [W] / 1 / rated value | 4.8 W |
| type of voltage / 1 / of the supply voltage: consumed current / 1 / maximum | 0.2 A |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +70 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 9
| design | SIMATIC S7-1500 device design |
|---|---|
| width | 70 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method: 19-inch installation | No |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product functions / management, configuration, engineering 1
| PROFINET conformity class | B |
|---|
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Product functions / general 3
| MTBF | 58 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Logistics 7
| Net weight | 0.795 kg |
|---|---|
| Package dimensions | 125 × 210 × 147 mm |
| Country of origin | DE |
| Shipping weight | 1.295 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5408-0GA00-8AP2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the PE408
What is the rated current of PE408?
The rated current of PE408 is 0.2 A.
What is the HS code of PE408 for customs?
The tariff (HS) code on file for PE408 is 85176200.
What is the EAN of PE408?
The EAN (GTIN) of PE408 is 4047622140994.
Where does PE408 ship from, and how fast?
PE408 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
