- Part number
- 6GK5400-8AS00-8AP2
- Model no
- PE400-8SFP
Siemens has announced the end of 6GK5400-8AS00-8AP2
Once production ends, supply depends on remaining stock.
No replacement announced yet. Tell us the application and we will propose an alternative.

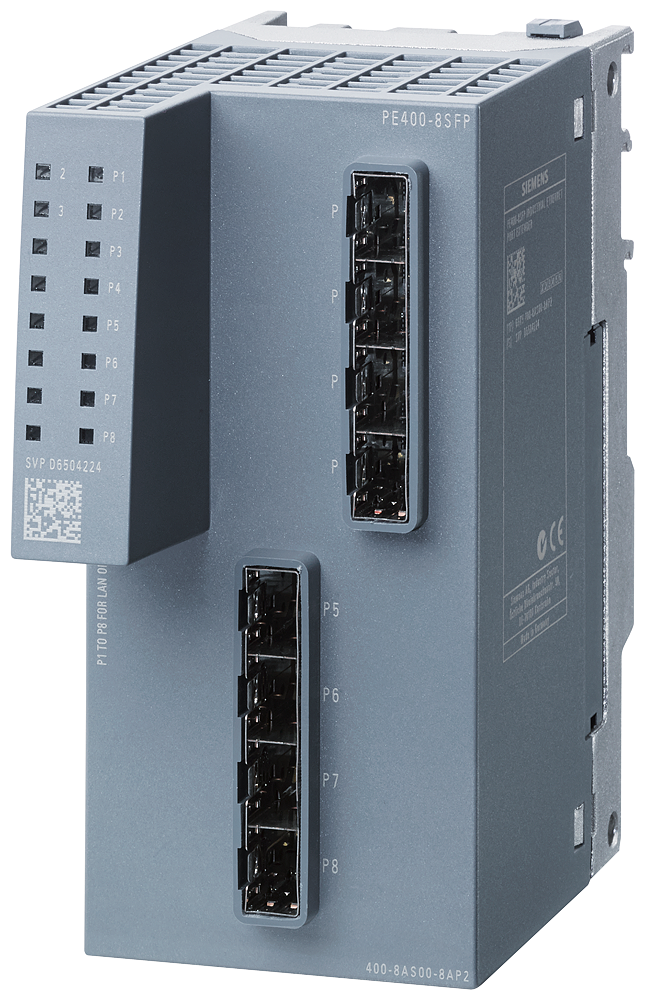

SCALANCE XMSiemens 6GK5400-8AS00-8AP2 PE400-8SFP 8-Port SFP Port Extender for SCALANCE XM-400 Switch
Siemens PE400-8SFP hot-swappable extender module, adds 8 SFP ports to a SCALANCE XM-400 switch.
Description
About the PE400-8SFP
About the PE400-8SFP
The Siemens PE400-8SFP (6GK5400-8AS00-8AP2) is a hot-swappable port extender that adds 8 SFP ports running at 100/1000 Mbit/s to a SCALANCE XM-400 managed modular Ethernet switch. It mounts on a 35 mm DIN rail or S7-300/S7-1500 rail and draws its power from the base switch through 2 extender interfaces, weighing 0.6 kg.
Certifications & Standards
- CE
- UKCA
- cULus
- KC
- RCM
- ATEX
- UKEX
- IECEx
- ULhazloc
- CCC
Selection Notes
This is the fiber (SFP) version of the XM-400 port extender; the PE408 sibling adds 8 copper RJ45 ports instead. Pick the PE400-8SFP when the run to the field device is fiber, for distance or interference reasons, and pick the PE408 for copper drops. Both extenders share the same base-switch power draw and 2-interface expansion connection, so port media is the only real selection factor between them.
Specification
Full specification
Product type designation 2
| product brand name | SCALANCE |
|---|---|
| product type designation | PE400-8SFP |
Transfer rate 1
| transfer rate | 100 Mbit/s, 1000 |
|---|
Interfaces / for communication / integrated 1
| number of electrical connections: for SFP | 8 |
|---|
Show all 72 specifications ↓ Show less ↑68 more values in Identification, Interfaces / for communication / plug-in, Interfaces / other, Supply voltage, current consumption, power loss, Ambient conditions, Design, dimensions and weights, Product functions / management, configuration, engineering, Standards, specifications, approvals, Standards, specifications, approvals / hazardous environments, Standards, specifications, approvals / other, Standards, specifications, approvals / marine classification, Product functions / general, Logistics.
Identification 10
| Part number | 6GK5400-8AS00-8AP2 |
|---|---|
| Type designation | PE400-8SFP |
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Phase-out announced by the manufacturer |
| EAN | 4047622140987 |
| ETIM class | EC000734 |
| eCl@ss | 19170130 |
Interfaces / for communication / plug-in 1
| number of electrical connections: for SFP | 8 |
|---|
Interfaces / other 2
| number of extender expansion interfaces | 2 |
|---|---|
| product feature / hot-swappable interface modules | Yes |
Supply voltage, current consumption, power loss 3
| product component / connection for redundant voltage supply | Yes |
|---|---|
| type of voltage / 1 / of the supply voltage: power loss [W] / 1 / rated value | 1.7 W |
| type of voltage / 1 / of the supply voltage: consumed current / 1 / maximum | 0.07 A |
Ambient conditions 5
| ambient temperature: during operation | -40 ... +60 °C |
|---|---|
| ambient temperature: during storage | -40 ... +85 °C |
| ambient temperature: during transport | -40 ... +85 °C |
| relative humidity: at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
Design, dimensions and weights 10
| design | SIMATIC S7-1500 device design |
|---|---|
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 70 mm |
| height | 147 mm |
| depth | 125 mm |
| fastening method: 19-inch installation | No |
| fastening method: 35 mm DIN-rail mounting | Yes |
| fastening method: wall mounting | No |
| fastening method: S7-300 rail mounting | Yes |
| fastening method: S7-1500 rail mounting | Yes |
Product functions / management, configuration, engineering 1
| PROFINET conformity class | B |
|---|
Standards, specifications, approvals 8
| certificate of suitability: CE marking | Yes |
|---|---|
| certificate of suitability: UKCA marking | Yes |
| certificate of suitability: cULus approval | Yes |
| certificate of suitability: KC approval | Yes |
| certificate of suitability: Regulatory Compliance Mark (RCM) | Yes |
| standard: for EMC interference emission | EN 61000-6-4 (Class A) |
| standard: for immunity to EMC | EN 61000-6-2 |
| standard: for safety / from CSA and UL | UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03 |
Standards, specifications, approvals / hazardous environments 6
| certificate of suitability: ATEX | Yes |
|---|---|
| certificate of suitability: UKEX | Yes |
| certificate of suitability: IECEx | Yes |
| certificate of suitability: ULhazloc approval | Yes |
| certificate of suitability: CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability: FM registration | Yes |
Standards, specifications, approvals / other 2
| certificate of suitability: RoHS conformity | Yes |
|---|---|
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
Standards, specifications, approvals / marine classification 10
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
|---|---|
| Marine classification association: American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association: French marine classification society (BV) | No |
| Marine classification association: Chinese Classification Society (CCS) | No |
| Marine classification association: Det Norske Veritas (DNV) | No |
| Marine classification association: Korean Register of Shipping (KRS) | No |
| Marine classification association: Lloyds Register of Shipping (LRS) | No |
| Marine classification association: Nippon Kaiji Kyokai (NK) | No |
| Marine classification association: Polski Rejestr Statkow (PRS) | No |
| Marine classification association: Royal Institution of Naval Architects (RINA) | Yes |
Product functions / general 3
| MTBF | 63 a |
|---|---|
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
Logistics 7
| Net weight | 0.772 kg |
|---|---|
| Package dimensions | 125 × 140 × 147 mm |
| Country of origin | DE |
| Shipping weight | 1.272 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6GK5400-8AS00-8AP2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE marking
- UKCA marking
- cULus approval
- KC approval
- Regulatory Compliance Mark (RCM)
- ATEX
- UKEX
- IECEx
- ULhazloc approval
- CCC / for hazardous zone according to GB standard
Quick answers
Questions about the PE400-8SFP
What is the rated current of PE400-8SFP?
The rated current of PE400-8SFP is 0.07 A.
What is the HS code of PE400-8SFP for customs?
The tariff (HS) code on file for PE400-8SFP is 85176200.
What is the EAN of PE400-8SFP?
The EAN (GTIN) of PE400-8SFP is 4047622140987.
Where does PE400-8SFP ship from, and how fast?
PE400-8SFP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
