Siemens 6GK5334-5TS00-4AR3 SCALANCE XR302-32 32-Port Redundant Power Managed Ethernet Switch

% $-4,167.62

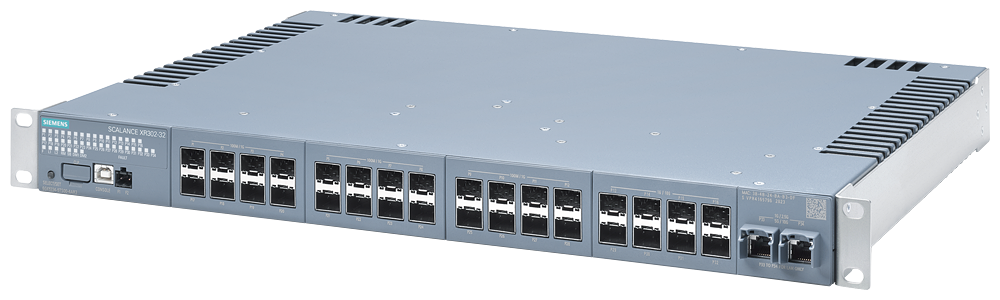

Siemens SCALANCE XR302-32 6GK5334-5TS00-4AR3 dual-supply managed Ethernet switch
Siemens SCALANCE XR302-32 6GK5334-5TS00-4AR3 dual-supply managed Ethernet switch

Siemens 6GK5334-5TS00-4AR3 SCALANCE XR302-32 32-Port Redundant Power Managed Ethernet Switch

Brand: Siemens
Reference No: 6GK5334-5TS00-4AR3
Catalog No: 6GK5334-5TS00-4AR3
Series: SCALANCE XR302
Tariff Code (HS): 85176200
Rated Current: 1.2 A
Rated Voltage: 110-240 V AC
Communication: PROFINET IO, SNMP v1/v2/v3, RSTP/MSTP/MRP, LLDP, DCP, EtherNet/IP, DHCP
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$4,167.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens SCALANCE XR302-32 (6GK5334-5TS00-4AR3) is a managed Layer 2 industrial Ethernet switch with 2 multi-gigabit RJ45 ports, 24 SFP and 8 SFP+ slots in a 19-inch rack housing, built for redundant power. Two independent AC/DC-rated inputs back each other up for continuous operation on PROFINET IO networks with an integrated redundancy manager.

Technical Specifications

Catalog No XR302-32
SKU 6GK5334-5TS00-4AR3
EAN 4047623145783
Brand Siemens
Series SCALANCE XR302
Design 19-inch rack, 1 height unit
RJ45 Ports 2x multi-gigabit, 100/1000 Mbit/s and 2.5/5/10 Gbit/s
SFP Ports 24x (100/1000 Mbps usable)
SFP+ Ports 8x (1000/10000 Mbps usable)
Switching Method Store & Forward
MAC Address Table 16,382 automatically learnable addresses
QoS Queues per Port 8, IEEE 802.1Q
VLANs Up to 2048, port-based and dynamic
Max Ethernet Telegram Length 9194 byte
PROFINET Conformity Class B
PROFINET Network Load Class III
Redundancy Protocols STP, RSTP, RSTP+, MSTP, RSTP big network support, MRP with redundancy manager, MRP-I (LC mode), HRP with redundancy manager and standby redundancy, HSR, PRP (network operation and Redundant Network Access), PROFINET system redundancy, H-Sync forwarding, passive listening
Management Protocols CLI, web-based management, MIB support, RMON, Telnet, TFTP, FTP, SFTP, GMRP, DCP, LLDP, EtherNet/IP, SNMP v1/v2/v3, DHCP server/client (Option 82/66/67), IGMP snooping/querier, I&M0/I&M1
Diagnostics Port diagnostics, packet size/type statistics, error statistics, SysLog, TRAPs via email
Power Supply 2 independent inputs (redundant): 100-250V DC or 110-240V AC (85-264V range), max 1.2 A each, fuse F4A/250V
Power Loss 99 W per input
Power Connector IEC plug C14 (AC) or 2-pole terminal block (DC)
Signaling Contact 2-pole terminal block, 24V AC/DC, max 0.1 A DC
Operator Console Interface USB 2.0 Type B (USB-to-serial adapter)
Removable Storage CLP (C-PLUG) included
Operating Temperature -25 to +55 degrees C
Relative Humidity Max 95% at 25 degrees C, non-condensing
Installation Altitude Max 3000 m
Protection Class IP20
Enclosure Material Metal
Dimensions (W x H x D) 446 x 43.6 x 374.8 mm
Net Weight 8.4 kg
Country of Origin Germany

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • KC
  • RCM
  • RoHS
  • EPD

Selection Notes

This variant adds a second, independent power input to the single-supply 3AR3 base model, so a power feed failure on one input does not drop the switch. With 24 SFP and 8 SFP+ slots against only 2 RJ45 ports, it stays a fiber-dominant switch aimed at backbone aggregation rather than copper field wiring, matching the port mix of its 3AR3 sibling.

Technical Details

Short Description
Siemens SCALANCE XR302-32 managed Layer 2 switch, 32 SFP/SFP+ ports, redundant power, 19-inch rack.
Rated Current (Ampere)
1.2 A
Rated Voltage (VAC)
110-240 V AC
Mounting Type
19-inch rack
Protection Type
IP20
Catalog No
6GK5334-5TS00-4AR3
Standards
CE marking, UKCA marking, cULus approval, KC approval, Regulatory Compliance Mark (RCM), RoHS conformity, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6GK5334-5TS00-4AR3
Tariff Code
85176200
